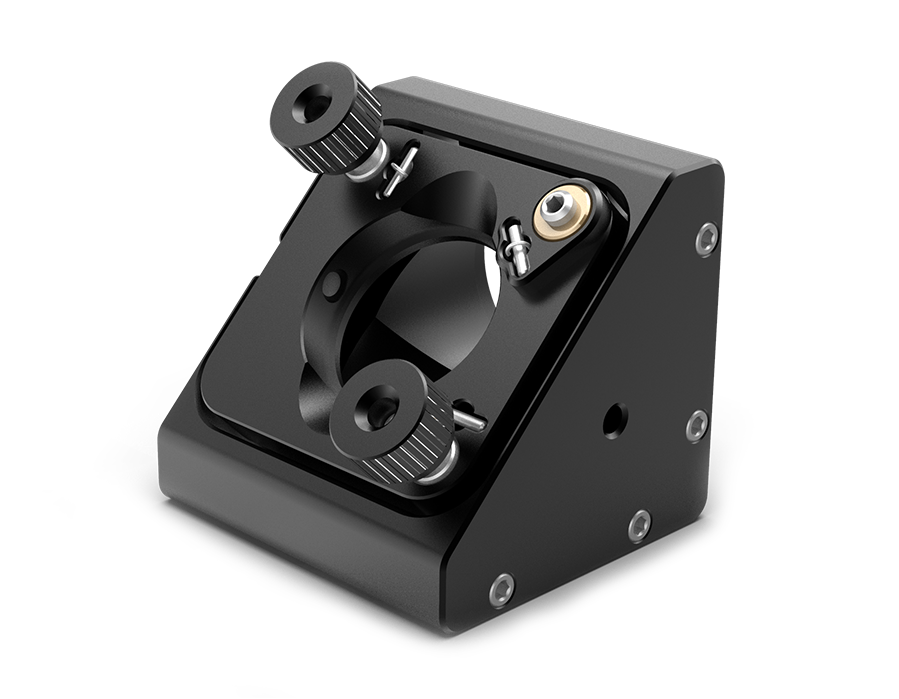

30 mm Cage Right-Angle Mirror Mount

GU Optics's Right-Angle Kinematic Mounts are designed for easy integration into our 30 mm cage system. All of these mounts have SM1-threaded bores on the entrance and exit ports for Φ1" (Φ25.4 mm) lens tube integration. The inclined surface is used to install Φ25.4 mm optical components with a minimum thickness of 3 mm, and fixed by locking screws. With three Adjusters to realized ±2.5 mm Linear Translation. Eight Tapped Holes for Φ6mm Cage Rods.

Product characteristics
1. Provides ±4° Kinematic Tip and Tilt Adjustment, ±2.5 mm Linear Translation.
2. Mounts Φ1″ (25.4 mm) Optics at a 45° Angle to the Optical Axis.

Products Related Download

Size of Compatible Optics

Select..  

 25.4mm

Cage Rod Features

Select..  

Thread

Select..  

 M4/M6

Clear

Pro No.

Parameter

Size of Compatible Optics

Cage Rod Features

Thread

Delivery time

Compare

Price

Purchase

530046

Parameter list

25.4mm

6mm-Tapped-Holes

M4/M6

In stock



$125.00



530047

Parameter list

25.4mm

M3-Smooth-Bore-Holes

M4/M6

In stock



$126.67


