Home  Products   30 mm Cage Mounting Bracket

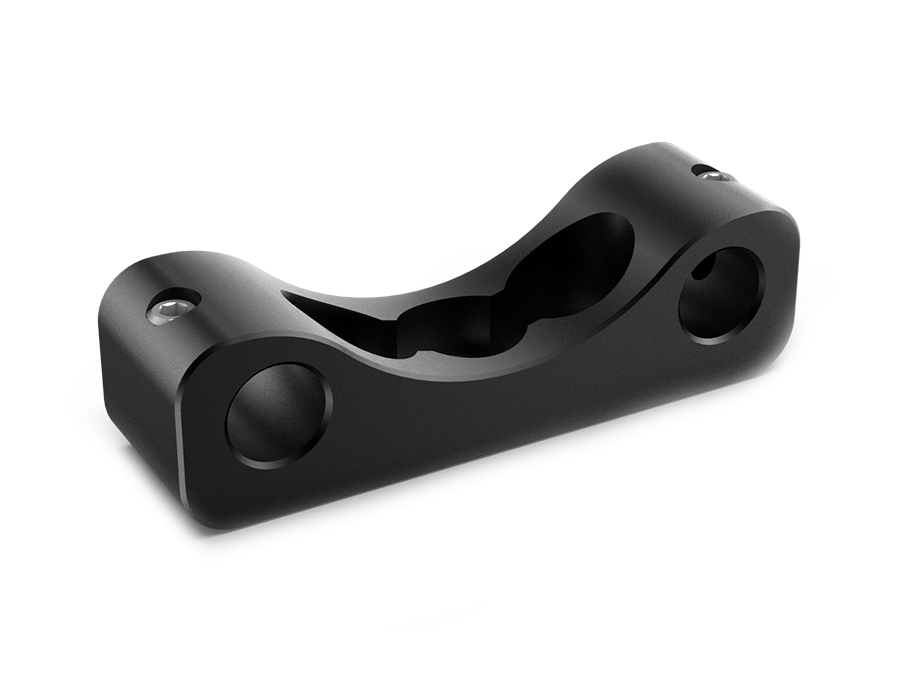

30 mm Cage Mounting Bracket

The 30 mm Cage Mounting Bracket provided by GU Optics has Three M4 Counterbore holes, used for installing cage posts and OEM applications. Cage Rods are Locked by the Top-Located Setscrews, this Bracket design Offers Clearance for SM1 Lens Tubes.

Product characteristics
1. Compatible with 30 mm Cage Systems
2. Three M4 Counterbores for Post Mounting and OEM Applications
3. Cage Rods (Not Included) are Locked into Place with Top-Located Setscrews
4. Bracket Offers Clearance for SM1 Lens Tubes

Products Related Download

Mounting Hole

Select..  

 3 M4 Counterbores

Clear

Pro No.

Parameter

Mounting Hole

Delivery time

Compare

Price

Purchase

530025

Parameter list

3 M4 Counterbores

In stock



$15.00



Φ6mm Optical Post Holders

Post Thread Adapters

30 mm Cage Cube

30 mm Cage cube Beamsplitter Adapters
