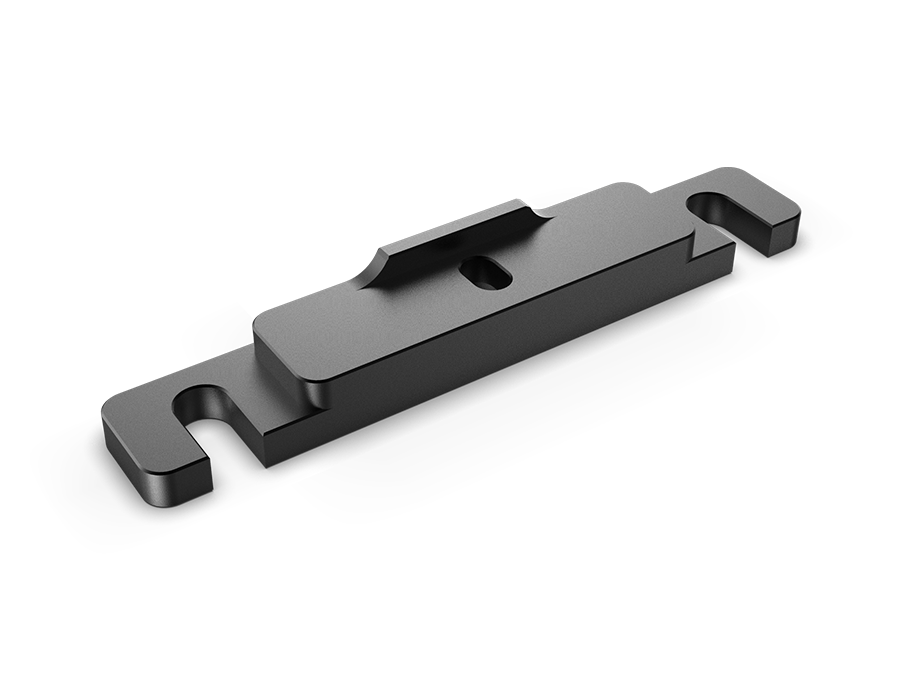

Mounting Base for 30 mm Cage Plates

This 30 mm Cage Plate Mounting Base with two M6 slots and one M4 Counterbore hole, allow a 30mm cage plates to be directly mounted to an optical table or optical breadboard. Each base has a lip in order to prevent the rotation of the cage plate when subjected to a torque.

Products Related Download

Thread

Select..  

 2 x M6;1X M4

Clear

Pro No.

Parameter

Thread

Delivery time

Compare

Price

Purchase

530034

Parameter list

2 x M6;1X M4

In stock



$26.67


