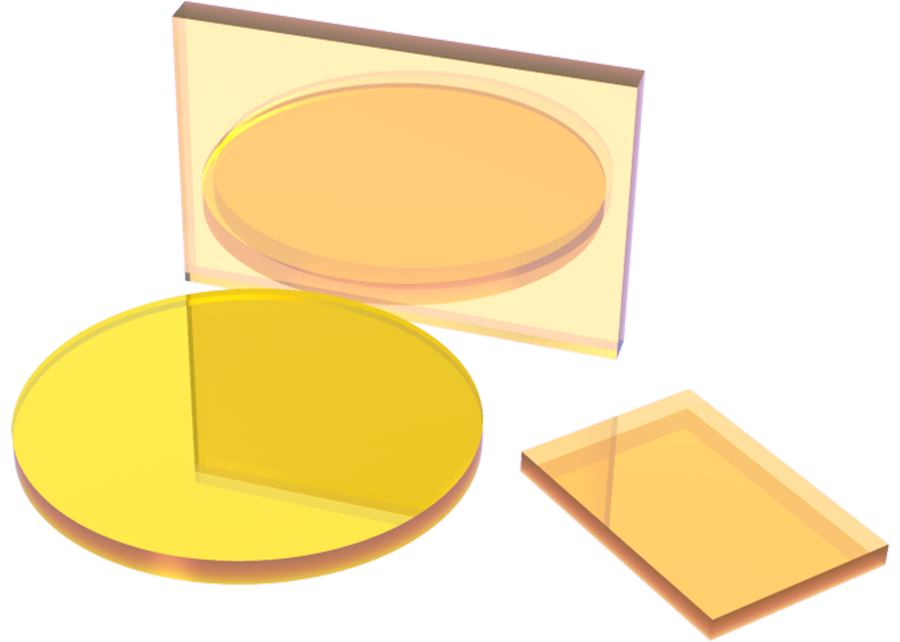

Zerodur Laser Line Dielectric Mirrors

GU Optics offer standard Zerodur Laser Line Mirrors with angle of incidence of 0°and 45°and spectrum ranges from 266nm to 20000nm. These laser line mirrors feature wide spectral range, large angle of incidence and high reflectivity which meet the needs of various laser reflection applications. We can offer customized Zerodur laser line mirrors to suit your requirements.

Material Zerodur

Irregularity(P-V) λ/10@632.8nm

Clear Aperture ≥80%

Surface Quality Better than 20-10

Diameter Tolerance +0/-0.13mm

Thickness Tolerance ±0.25mm

Damage Threshold 500W/cm²CW,5J/cm²for10nsecpulses

Bevel Protective Bevel

Products Spectral curve Related Download

Dia

Select..  

 25.4mm

Thickness

Select..  

 6.0mm

Coating

Select..  

Angle of Incidence

Select..  

 0-45°

Clear

Pro No.

Parameter

Dia

Thickness

Coating

Angle of Incidence

Delivery time

Compare

Price

Purchase

432000

Parameter list

25.4mm

6.0mm

HR@(1030-1080)nm

0-45°

Consult



$142.00



432001

Parameter list

25.4mm

6.0mm

HR@532nm

0-45°

Consult



$140.83



432002

Parameter list

25.4mm

6.0mm

HR@632.8nm

0-45°

Consult



$140.83



432003

Parameter list

25.4mm

6.0mm

HR@(488-515)nm

0-45°

Consult



$152.00



432004

Parameter list

25.4mm

6.0mm

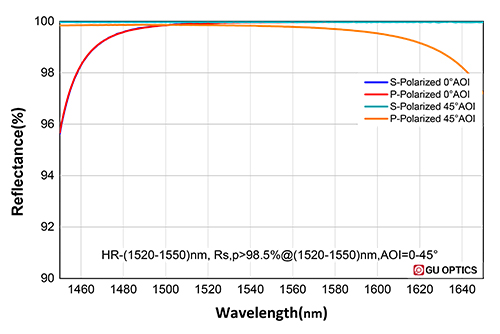

HR@(1520-1550)nm

0-45°

Consult



$153.67



Curve download
