Ruled Diffraction Gratings
The initial step to make an original or master grating is to select the substrate material, usually usin glass or copper. The substrate material is polished to a high flatness and coated with very thin aluminum. The parallelism and equidistance of the grooves takes time to adjust. A few days is required to set up and test before engraving. The engraver must make sure the diamond knife head can return back in a precise way after each engraving and can engrave the substrate based on the quantity on schedule. The parallelism and displacement of the grooves must be precisely controlled. Engraving requires a series of tests. After testing passed, the original grating can be carved on a large substrate. The original grating is very expensive, so the grating can only be used limited until the replica grating is developed.

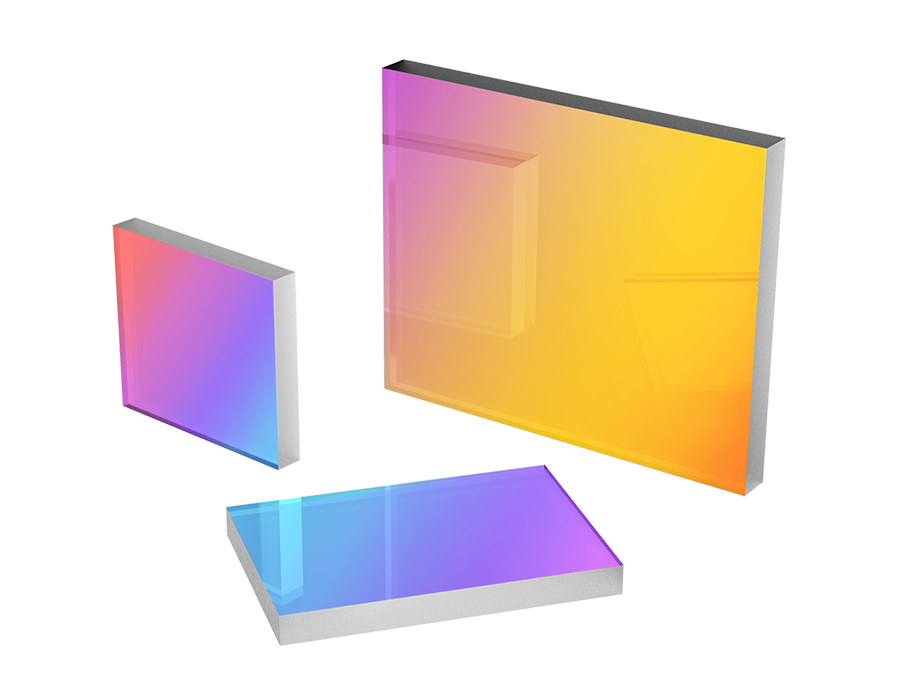

Ruled Diffraction Gratings
Precautions:
Optical gratings can be easily damaged by moisture, fingerprints, aerosols, or the slightest contact with any abrasive material. Gratings should only be handled when necessary and always held by the sides. Latex gloves or a similar protective covering should be worn to prevent oil from fingers from reaching the grating surface. No attempt should be made to clean a grating other than blowing off dust with clean, dry air or nitrogen. Solvents will likely damage the grating's surface.
Substrate Material Float Glass
Surface Quality 60-40
Dimension Tolerance ± 0.5 mm
Thickness Tolerance ± 0.5 mm
Efficiency 60%~ 80% @ Blaze Wavelength
Clear Aperture 90%
Damage Threshold 1 350mJ/cm² @200ns Pulsed Laser
Damage Threshold 2 40W/cm² (CW) Continuous Laser

Size

Groove Density

Blaze Wavelength

Blaze Angle

Clear
Pro No.
Parameter
Size
Groove Density
Blaze Wavelength
Blaze Angle
Delivery time
Compare
Price
Purchase
378503
Parameter list
25x50x9.5mm
75Lines/mm
10.6μm
21°0'
Consult
Consult
378515
Parameter list
12.7x12.7x6mm
300Lines/mm
300nm
2°34'
In stock
$105.83
378516
Parameter list
12.7x12.7x6mm
300Lines/mm
500nm
4°18'
In stock
$105.83
378517
Parameter list
12.7x12.7x6mm
300Lines/mm
1000nm
8°36'
In stock
$105.83
378518
Parameter list
25x25x6mm
300Lines/mm
300nm
2°34'
In stock
$165.83
378520
Parameter list
25x25x6mm
300Lines/mm
1000nm
8°36'
In stock
$165.83
378521
Parameter list
50x50x9.5mm
300Lines/mm
300nm
2°34'
In stock
$491.67
378523
Parameter list
50x50x9.5mm
300Lines/mm
1000nm
8°36'
Consult
$491.67
378524
Parameter list
12.7x12.7x6mm
600Lines/mm
250nm
4°18'
In stock
$105.83
378525
Parameter list
12.7x12.7x6mm
600Lines/mm
300nm
5°9'
In stock
$105.83
378526
Parameter list
12.7x12.7x6mm
600Lines/mm
400nm
6°53'
In stock
$105.83
378527
Parameter list
25x25x6mm
600Lines/mm
250nm
4°18'
Consult
Consult
378528
Parameter list
25x25x6mm
600Lines/mm
300nm
5°9'
In stock
$165.83
378529
Parameter list
25x25x6mm
600Lines/mm
400nm
6°53'
In stock
$165.83
378531
Parameter list
50x50x9.5mm
600Lines/mm
300nm
5°9'
In stock
$491.67
378532
Parameter list
50x50x9.5mm
600Lines/mm
400nm
6°53'
In stock
$491.67
378533
Parameter list
12.7x12.7x6mm
600Lines/mm
500nm
8°37'
In stock
$105.83
378534
Parameter list
12.7x12.7x6mm
600Lines/mm
750nm
13°0'
In stock
$105.83
378535
Parameter list
12.7x12.7x6mm
600Lines/mm
1000nm
17°27'
In stock
$105.83
378536
Parameter list
12.7x12.7x6mm
600Lines/mm
1250nm
22°1'
In stock
$105.83
More products >>
