GU OPTICS Electronic Auto Collimator
GU OPTICS Electronic Auto Collimator
GU OPTICS Electronic Auto Collimator
Description Software
As the integration of a dedicate designed high-resolution and low-distortion lens, internal optical parts, ideal mechanical construction and fully digital design technology, results up to 0.1 arcsec ultra high accuracy for angle measurement. The precise and highly reliable measurement system excels in eas e of use. The new ergonomically adapted measurement software ensures a maximum usability with complete functionality.

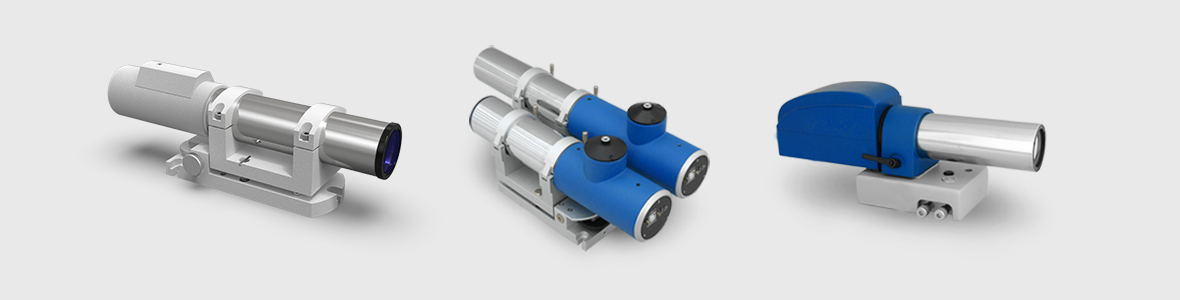

COMPACT ELECTRONIC AUTO-COLLIMATOR

COMPACT series autocollimator products adopt a miniaturized design, creatively transplant the light source power supply and control circuit into the USB interface, and provide a real-time video image display function, which is especially convenient for users to quickly find images on the job site. The product retains the integrated magnetic mirror attachment and portable instrument case; the user only needs to insert the USB cable and run the software to start the measurement; the measurement accuracy of 1 arc second and the complete accessory system include full-featured data analysis The software makes this series of products especially suitable for field use in mechanical and optical manufacturing.
Features Applications
  • compact design；
  • Quality assurance in the machine tool industry (straightness, flatness, squareness, parallelism, rotational position uncertainty, etc.)；
  • Accuracy up to 0.3 arc second
  • Automatic angle adjustment
  • Simultaneous XY measurement
  • Optical goniometer
  • video image finding aid
  • Angular position monitoring
  • High-efficiency LED light source, up to 50,000 hours of service life

  • Simple and easy-to-use data analysis software

  • Abundant measurement accessories

COMPACT ELECTRONIC AUTO-COLLIMATOR
Pro No.
Parameter
Accuracy
Lens Diameter
Focal Length
Delivery time
Price
Purchase
COMPACT-150-38
Parameter list
1˝
38.1mm (NA. = 85%)
150mm
2 Weeks
COMPACT-300-45
Parameter list
±0.3″@Within Central ±100˝
50mm (NA. = 90%)
300mm
2 Weeks

LOW COST ELECTRONIC AUTO-COLLIMATOR

The AutoMAT ULTRA series is a robust and compact series of autocollimators. This series of products, are designed with perfect balance between cost and performance purpose, while with easy operation and high reliability features make it well suited for field test and measurement in mechanical and optical applications.
Features Applications
  • Up to 0.3 arc sec accuracy；
  • Alignment of machinery；
  • Dual-axis measurements；
  • Proof for straightness, flatness, parallelism of rails, tables and linear stage etc.；
  • Electronic viewfinder
  • Rotary table measurement；
  • High resolution Image Sensors；
  • Ass embly and adjustment of optical components like mirrors, prisms, windows, wedges etc.；
  • LED Light Sources；
  • (Alignment of components for the beam control in high energy physics；
  • Digital image processing technology；

  • USB 2.0 high speed interface；

  • Rich accessories；

LOW COST ELECTRONIC AUTO-COLLIMATOR
Pro No.
Parameter
Focal Length
Lens Diameter
Accuracy
Delivery time
Price
Purchase
200-40UT-B
Parameter list
200mm
40mm(NA.= 80%)
0.5˝(±100˝)
Consult
200-45UT-B
Parameter list
200mm
45mm(NA. = 80%)
0.5˝(±100˝)
Consult
300-45UT-A
Parameter list
300mm
45mm(NA. = 80%)
0.3˝(±100˝ )
Consult

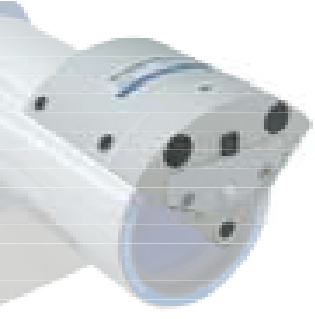

PRECISION ELECTRONIC AUTO-COLLIMATOR

The AutoMAT 5000 autocollimator is a combination of high-precision, stability and ease of use which can responds optimally to different customer requirements and can cover a large range of applications in mechanical and optical field.
Appendix
       MA60
Standard Mirror          		 DZ65
Adjustable Holder          		          MB60
Magnetic Base		 LF65
Laser Attachment

Features Applications
  • 0.1 arc sec accuracy;
  • Alignment of machinery;
  • XY Dual-axis measurements;
  • Proof for straightness, flatness, parallelism of rails, tables and linear stage etc.;
  • Expanded large- field electronic viewfinder;
  • Rotary table measurement;
  • High resolution CCD Sensors;
  • Alignment of astronomical system;
  • LED Light Sources;
  • A ssem b ly an d adjustment of optical components like mirrors, prisms, windows, wedges etc.;
  • Digital image processing technology;
  • Alignment of components for the beam control in high energy physics;
  • USB 2.0 high speed interface;

  • Rich accessories


PRECISION ELECTRONIC AUTO-COLLIMATOR
Pro No.
Parameter
Focal Length
Lens Diameter
Accuracy
Delivery time
Price
Purchase
SG-300-50
Parameter list
300mm
50mm (NA. = 90%)
0.2˝ (±100˝ )
Consult
SGH-300-50
Parameter list
300mm
50mm (NA. = 90%)
0.1˝ (±100˝)
Consult
Software Support
  • Excel data format compatible;

  • Straightness measuring software;
  • Flatness measuring software;
  • Squareness and parallelism measuring software;
  • Rotary table measurement and analysis software;
  • Custom designed software available;

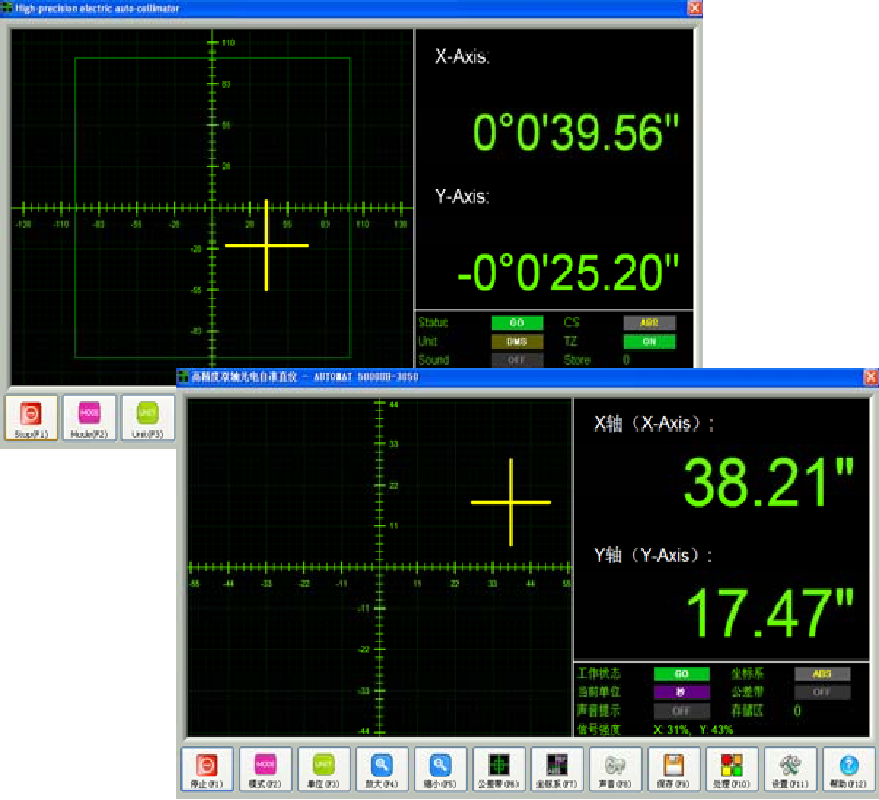

The collimator is composed of a high-precision electronic reading head, an objective lens tube, a two-dimensional adjustable base, a reflector, a display controller, and a laser image finder. The measurement software running on the display controller can display electronic eyepieces and measurement data with a large field of view, and can save the data in an Excel-compatible format. Only one USB cable is required between the display controller and the host, and the feature is plug-and-play Makes field application extremely simple; the laser viewfinder provides quick alignment and alignment adjustments within a distance of 25 meters, making long-distance adjustments extremely efficient. The user-selected wireless remote control can provide a remote control distance of up to 30 meters, which greatly improves the ease of use of the product.
Users can complete high-precision measurement of angle, straightness, perpendicularity, parallelism, flatness, rotary table, multi-tooth indexing table, etc. by matching other measurement accessories and measurement software modules.
