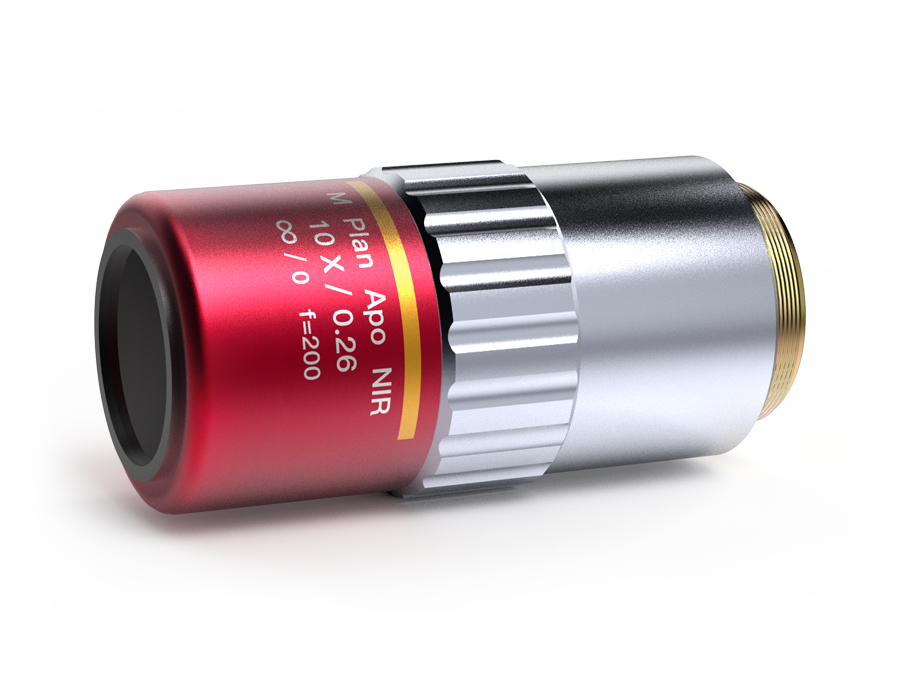

Mitutoyo M Plan Apo NIR Infinity Corrected Objective

Grand Unified Optics provides Mitutoyo wide-spectrum M Plan Apo NIR Infinity Corrected Objective, 5×, 10×, 20×, 50×, 100 to choose from, with a uniform parfocal distance. While combining the high NA value and contrast of the visible light version, the resolution is improved, and the working wavelength range is further widened, the working wavelength range can be from 480nm-1800nm. The objective lens adopts the plan apochromatic design, which is suitable for bright field microscopy. Can be widely used in education and scientific research, bright field industrial inspection. At the same time, it can be used in laser marking and laser cutting circuit boards.

Products Related Download

Magnification

Select..  

Focal Length

Select..  

Resolution

Select..  

Clear

Pro No.

Parameter

Magnification

Focal Length

Resolution

Delivery time

Compare

Price

Purchase

690024

Parameter list

5×

0.14

40mm

2.0um

Consult



Consult



690025

Parameter list

10×

0.26

20mm

1.1um

Consult



Consult



690026

Parameter list

20×

0.40

10mm

0.7um

Consult



Consult



690027

Parameter list

50×

0.42

4mm

0.7um

Consult



Consult



690028

Parameter list

100×

0.50

2mm

0.6um

Consult



Consult



We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
