High Energy Nd:YAG Laser Mirrors

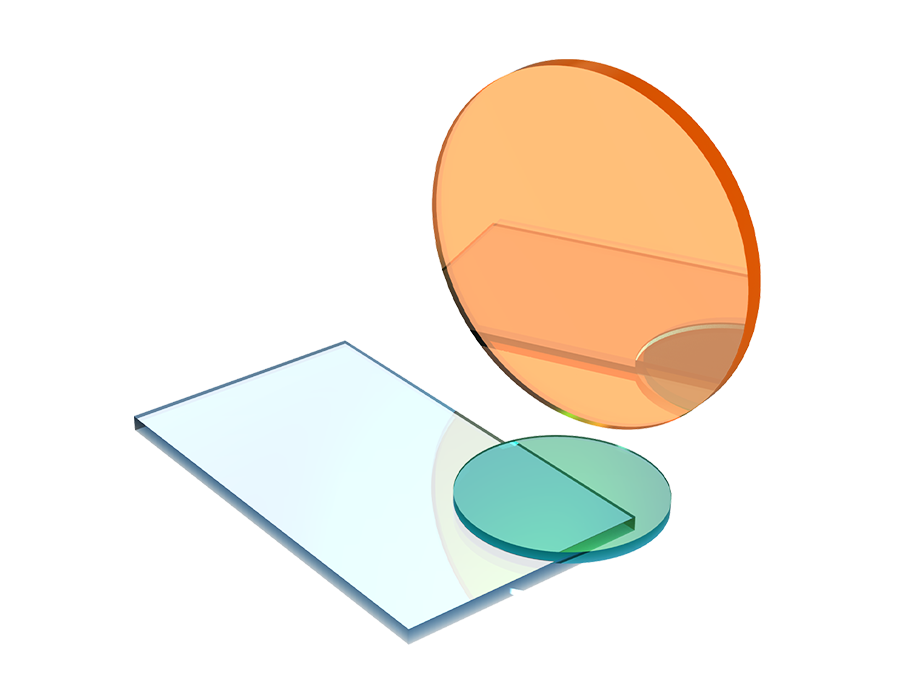

GU Optics offer standard high power Nd: YAG Laser Line Mirrors with angle of incidence of 0° and 45°and size of 25.4 mm. These high power Nd: YAG laser mirrors are made of corning 7980 as substrate material and using ultra-hard dielectric coating process. They have high reflectivity and laser damage threshold up to 40J/cm at specified wavelength and are widely used in laser processing field. We can also help to customize Nd: YAG laser mirrors to meet your requirements.

Material UV Grade Fused Silica

Irregularity(P-V) λ/10@632.8nm

Clear Aperture ≥80%

Surface Quality 10-5

Diameter Tolerance +0/-0.25 mm

Thickness Tolerance ±0.5 mm

Bevel Protective Bevel

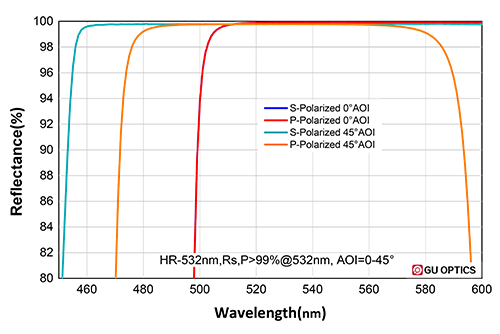

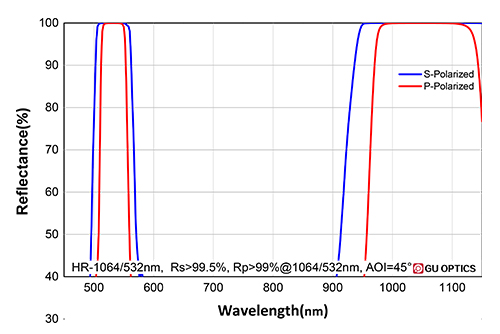

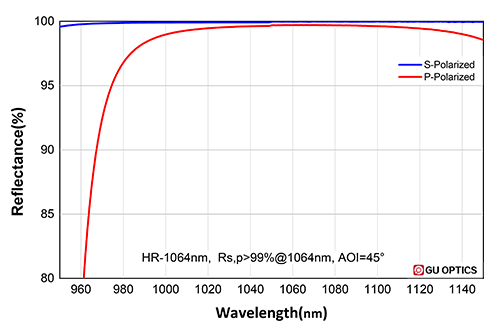

Products Spectral curve Related Download

Dia

Select..  

Thickness

Select..  

 6.35mm

Coating

Select..  

Angle of Incidence

Select..  

Clear

Pro No.

Parameter

Dia

Thickness

Coating

Angle of Incidence

Delivery time

Compare

Price

Purchase

431000

Parameter list

Φ25.4mm

6.35mm

HR@1064nm

0°

In stock



$230.33



431001

Parameter list

Φ25.4mm

6.35mm

HR@1064nm

45°

In stock



$203.33



431002

Parameter list

Φ25.4mm

6.35mm

HR@532nm

0°

In stock



$247.00



431003

Parameter list

Φ25.4mm

6.35mm

HR@532nm

45°

In stock



$230.17



431004

Parameter list

Φ25.4mm

6.35mm

HR@355nm

0°

In stock



$236.33



431005

Parameter list

Φ25.4mm

6.35mm

HR@355nm

45°

In stock



$214.67



431006

Parameter list

Φ25.4mm

6.35mm

HR@1064nm

45°

In stock



$188.67



431007

Parameter list

Φ25.4mm

6.35mm

HR@1064&532nm

45°

In stock



$250.17



431027

Parameter list

Φ25.4mm

6.35mm

HR@266nm

0°

Consult



$424.17



431028

Parameter list

Φ25.4mm

6.35mm

HR@266nm

45°

Consult



$274.17



453001

Parameter list

Φ12.7mm

6.35mm

HR@355nm

45°

Consult



Consult



Curve download
