Relay Lenses

Module detection Relay Lenses

 Module detection Relay Lenses

Module detection Relay Lenses

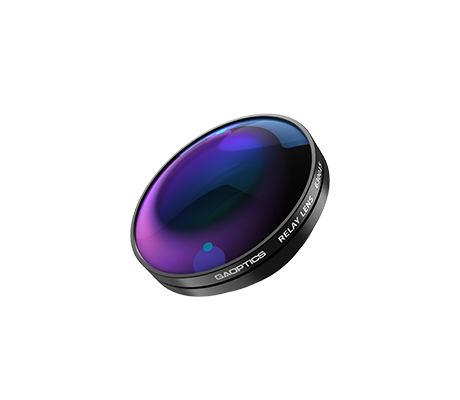

Module detection Relay Lenses can reduce the detection space and simulate different test distances, which can meet the high pixel requirements.
With the fast development of high pixels requirement of the mobile camera, remote imaging quality is getting higher and higher. The traditional testing method cost a huge detection space and also have a large test error. With the popularity of mobile phones, module detection relay lenses are widely used in factory automation.

Product characteristics
1. reduce the detection space
2. simulate different test distances

Products Parameter Related Download

Distrotion

Select..  

MAX FOV

Select..  

Diameter of exit pupil

Select..  

Distance of exit pupil/MBF

Select..  

Clear

Pro No.

Parameter

Distrotion

MAX FOV

Diameter of exit pupil

Distance of exit pupil/MBF

Delivery time

Compare

Price

Purchase

630012

Parameter list

＜0.5%

88°

φ4.00±0.5mm

20.00±1mm

Consult



Consult



630013

Parameter list

＜0.5%

90°

φ4.00±0.5mm

20.00±1mm

Consult



Consult



630014

Parameter list

＜0.5%

90°

φ4.00±0.5mm

20.00±1mm

Consult



Consult



630015

Parameter list

＜35%

130°

φ4.00±0.5mm

9.00±1.0mm

Consult



Consult



630016

Parameter list

＜60%

150°

4.00mm

7.00mm

Consult



Consult



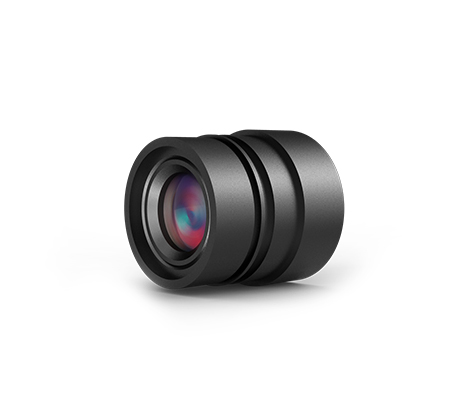

GA Infrared Lenses

连续变倍线扫镜头

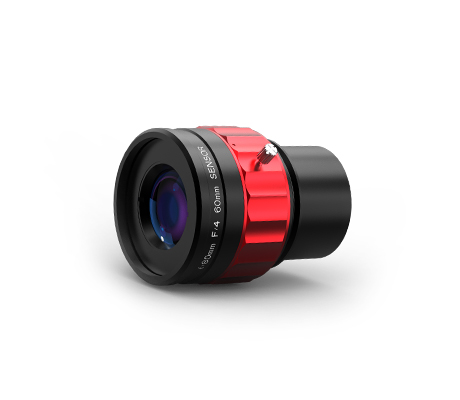

GA V8K Line Scan Lenses

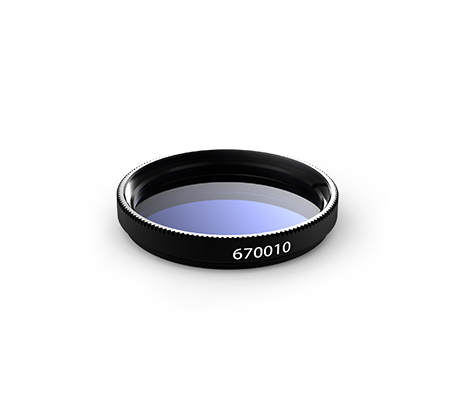

Filter

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
