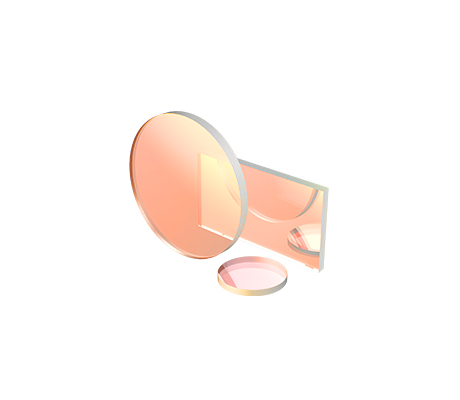

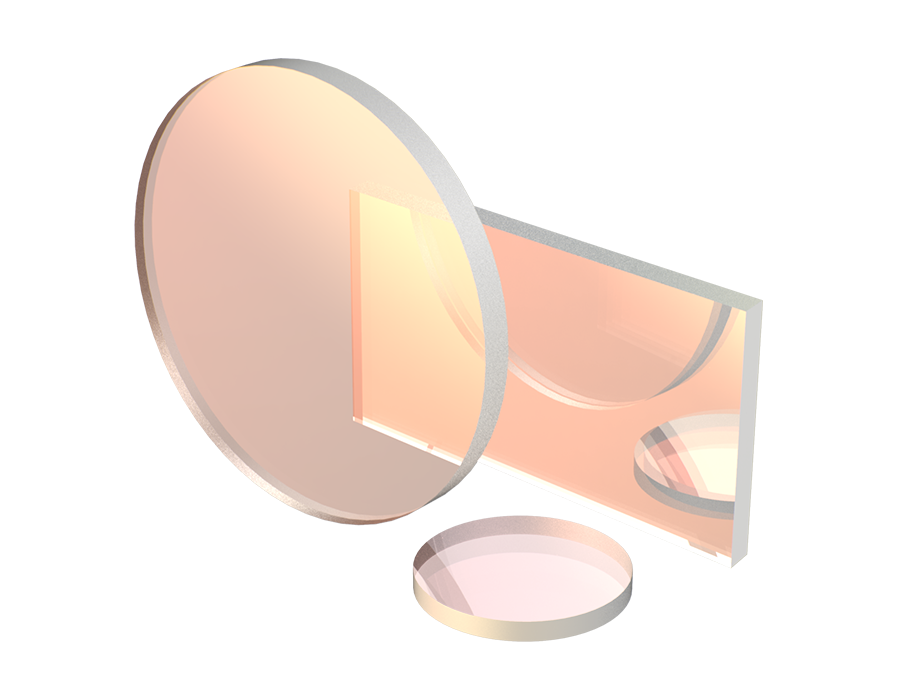

UV Fused Silica Laser Mirrors

GU Optics provide laser mirrors with high quality fused silica substrate and total dielectric high reflection, the reflection is very high within the fixed laser wavelength. The fused silica substrate reduces the dispersion of the light effectively. AOI for thse laser mirrors is 0° and 45° depending on your application.

Material Fused Silica

Surface Accuracy λ/10@633 nm

Parallelism ＜3 arcmin

Surface Quality 10-5

Back Surface Ground

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Products Spectral curve Related Download

Dia

Select..  

Thickness

Select..  

Laser Wavelength

Select..  

Angle of Incidence

Select..  

Clear

Pro No.

Parameter

Dia

Thickness

Laser Wavelength

Angle of Incidence

Delivery time

Compare

Price

Purchase

430000

Parameter list

Φ12.5mm

6.0mm

YAG-266nm

0°

In stock



$41.11



430001

Parameter list

Φ12.5mm

6.0mm

YAG-266nm

45°

In stock



$63.33



430002

Parameter list

Φ12.5mm

6.0mm

YAG-355nm

0°

In stock



$41.11



430003

Parameter list

Φ12.5mm

6.0mm

YAG-355nm

45°

Consult



$63.33



430004

Parameter list

Φ12.5mm

6.0mm

YAG-532nm

0°

Consult



$41.11



430005

Parameter list

Φ12.5mm

6.0mm

YAG-532nm

45°

In stock



$63.33



430006

Parameter list

Φ12.5mm

6.0mm

YAG-1064nm

0°

In stock



$41.11



430007

Parameter list

Φ12.5mm

6.0mm

YAG-1064nm

45°

In stock



$63.33



430008

Parameter list

Φ25.0mm

6.0mm

YAG-266nm

0°

In stock



$74.44



430009

Parameter list

Φ25.0mm

6.0mm

YAG-266nm

45°

In stock



$107.78



430010

Parameter list

Φ25.0mm

6.0mm

YAG-355nm

0°

In stock



$74.44



430011

Parameter list

Φ25.0mm

6.0mm

YAG-355nm

45°

In stock



$107.78



430012

Parameter list

Φ25.0mm

6.0mm

YAG-532nm

0°

Consult



$74.44



430013

Parameter list

Φ25.0mm

6.0mm

YAG-532nm

45°

Consult



$107.78



430014

Parameter list

Φ25.0mm

6.0mm

YAG-1064nm

0°

In stock



$74.44



430015

Parameter list

Φ25.0mm

6.0mm

YAG-1064nm

45°

In stock



$107.78



430016

Parameter list

Φ50.0mm

10.0mm

YAG-266nm

0°

In stock



$134.44



430017

Parameter list

Φ50.0mm

10.0mm

YAG-266nm

45°

In stock



$188.89



430018

Parameter list

Φ50.0mm

10.0mm

YAG-355nm

0°

In stock



$134.44



430019

Parameter list

Φ50.0mm

10.0mm

YAG-355nm

45°

In stock



$188.89



More products >>

Curve download

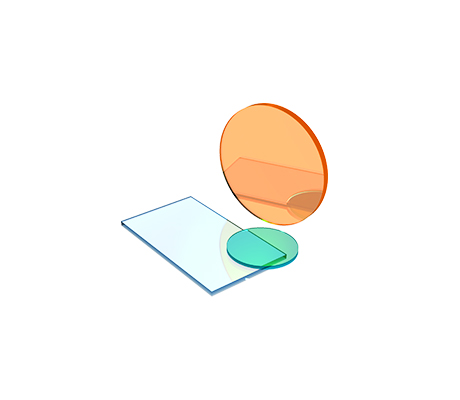

High Energy Nd:YAG Laser Mirrors

Borofloat®33 Laser line Dielectric Mirrors

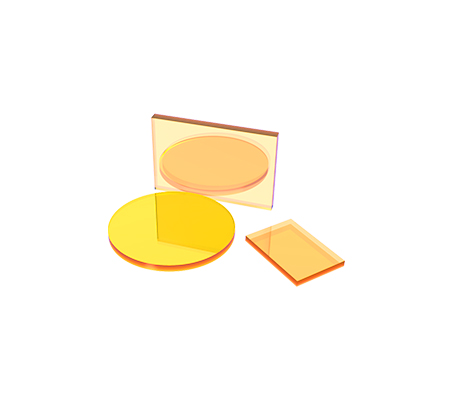

Zerodur Laser Line Dielectric Mirrors

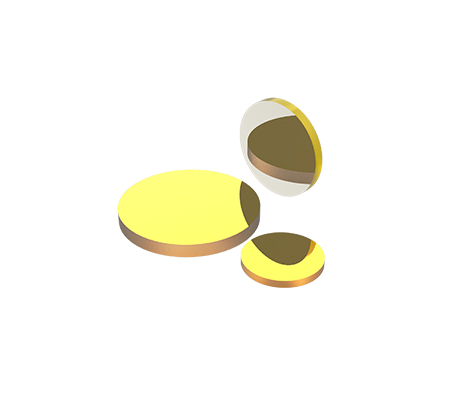

Zerodur Broadband Metal Laser Mirrors
