 Ultrafast Low Delay Laser Mirror

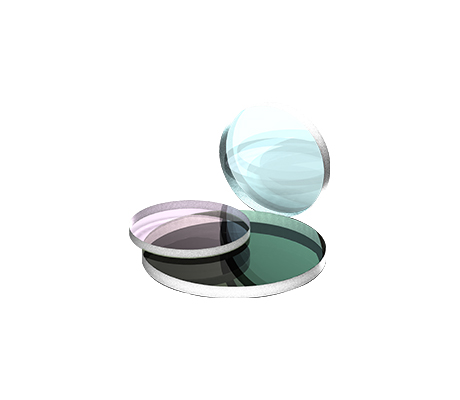

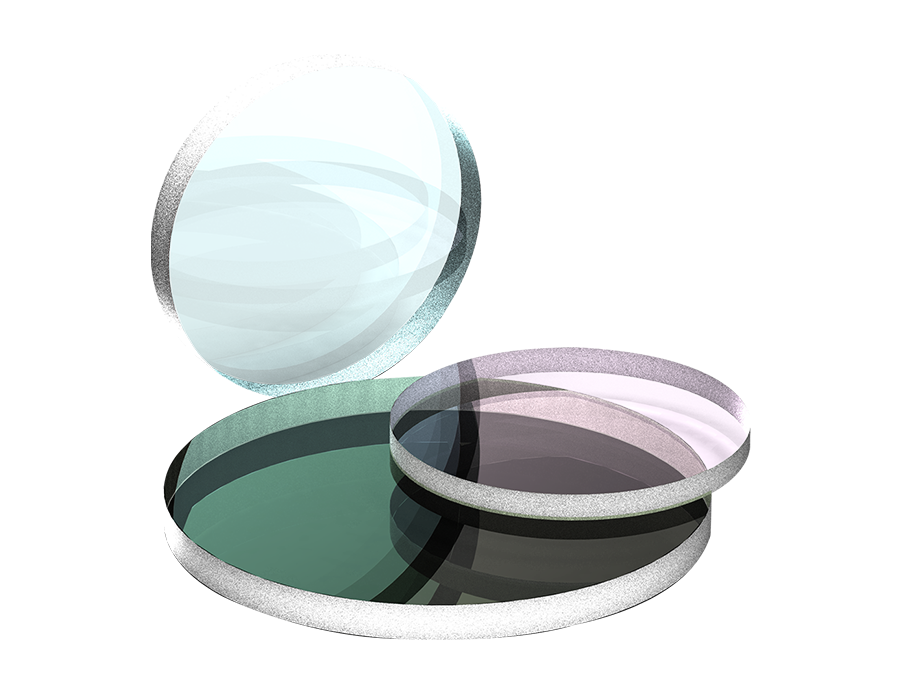

Ultrafast Low Delay Laser Mirror

GU Optics offer standard Ultrafast Low Delay Laser Mirrors with wavelength range from 1030-1050nm and 510-530nm. These laser mirrors are manufactured using corning 7980 substrate material and coated with multilayer dielectric coatings. They feature wide spectral range and high reflectivity, and are widely used in laser marking, laser welding, laser cutting, education and scientific research and other related fields. We can provide OEM services according to your requirements.

Material UV Grade Fused Silica

Irregularity(P-V) λ/10@632.8nm

Clear Aperture ≥80%

Surface Quality 10-5

Diameter Tolerance +0/-0.25mm

Thickness Tolerance ±0.5mm

Bevel Protective Bevel

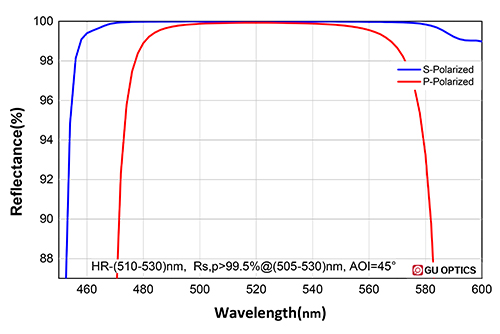

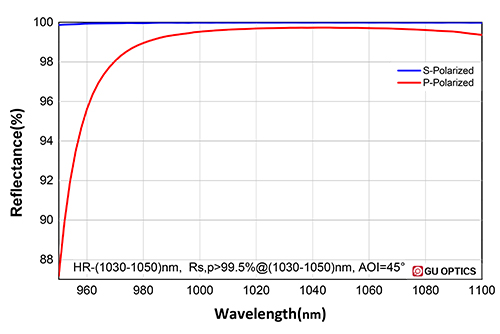

Products Spectral curve Related Download

Dia

Select..  

 25.4mm

Coating

Select..  

Angle of Incidence

Select..  

 45°

Damage Threshold

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Angle of Incidence

Damage Threshold

Delivery time

Compare

Price

Purchase

433000

Parameter list

25.4mm

HR@(1030-1050)nm

45°

10J/cm²@1064nm,10nsec,10HZ

Consult



$289.17



433001

Parameter list

25.4mm

HR@(510-530)nm

45°

2J/cm²@532nm,10nsec,10HZ

Consult



$253.33



Curve download
