360° Pericentric Optics Lenses

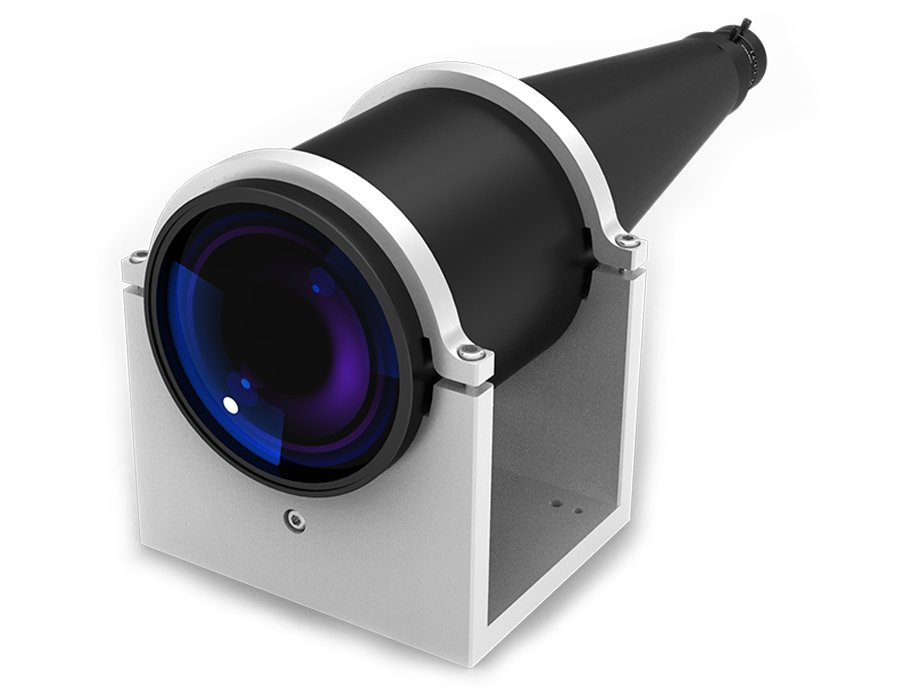

GAOPTICS’s 360° Pericentric Optics Lens allows one camera to see the top and lateral surfaces of an object. This type of lens is widely used in cylinder detection, such as medicine bottle, bottle cap, nut and so on.

Product characteristics
1. Used for multi-face imaging of cylinder and cube;
2. Multi-surfaces can be photographed with one camera, increasing system stability;
3. Continuous imaging of upper surface and side to avoid image stitching;

Products Parameter Related Download

Working Distance

Select..  

 23mm~82mm

Max. Sensor Size

Select..  

 Φ4.8mm

FOV(Min)

Select..  

 10×5mm

FOV(Max)

Select..  

 55×15mm

Clear

Pro No.

Parameter

Working Distance

Max. Sensor Size

FOV(Min)

FOV(Max)

Delivery time

Compare

Price

Purchase

611000

Parameter list

23mm~82mm

Φ4.8mm

10×5mm

55×15mm

Consult



$3795.07


