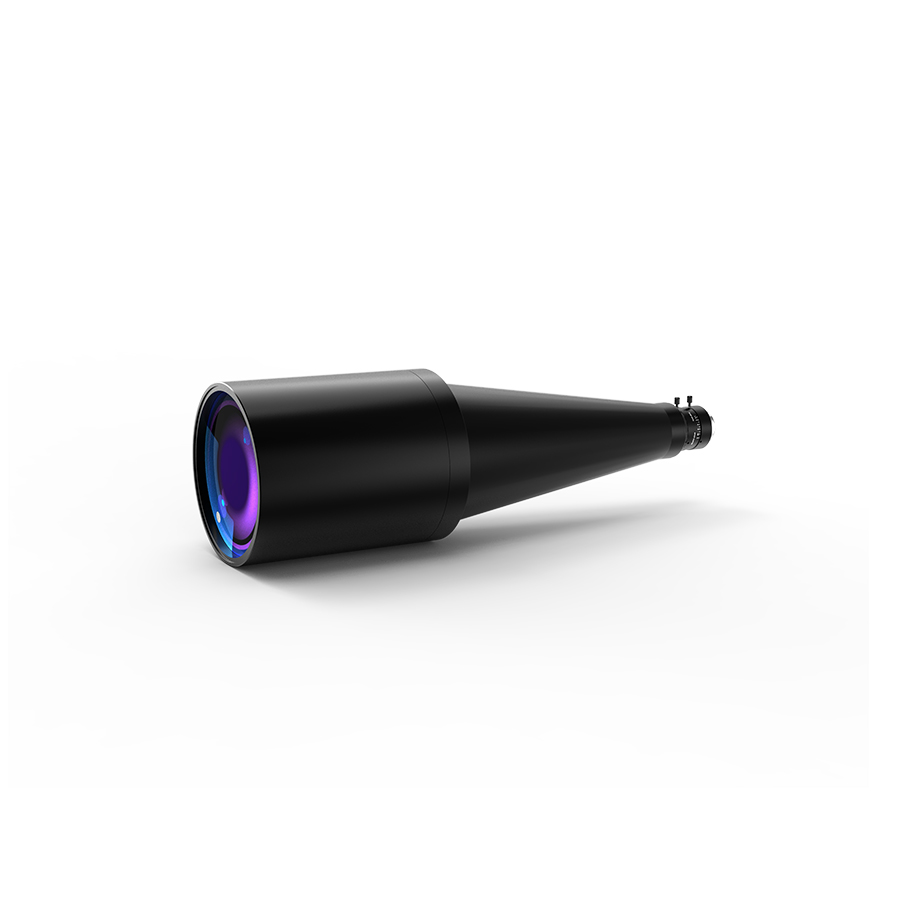

1/2" 360° Pericentric Optics Lens

Price Option

Product No. 611000

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

CCD 1/2"

Mount C

F/# F1.4-C

Working Distance 23mm~82mm

Max. Sensor Size Φ4.8mm

Working Wavelength 420-780nm

FOV(Min) 10×5mm

FOV(Max) 55×15mm

Weight 2.9kg

No.	Item		Specifications
1	Max. sensor size		1/2"(8mm)
2	Mount		C-Mount
3	F/#		F1.4-C
4	Working Distance		23mm~82mm
5	Image Circle		4.8mm
6	Working Wavelength		420-780nm
7	Distance of entrance pupil		-110.563mm
8	Distance of exit pupil		-65.194mm
9	Object Focus Position		-110.699mm
10	CTF@50lp/mm		>30%
11	FOV		Dia.(mm)	H(mm)	WDmm)	F/#	r(%)	H(mm)	WDmm)	F/#	r(%)	H(mm)	WDmm)	F/#	r(%)	H(mm)	WDmm)	F/#	r(%)
			10	5	82	16	18
			15	5	73	16	14	15	63	16	23
			20	5	66	16	9	10	61	16	14	20	51	16	22
			25	10	56	12	10	20	46	16	18	30	36	16	23
			30	10	48	8	10	20	38	16	15	30	28	16	20	40	18	16	24
			35	5	48	12	5	15	38	12	12	25	28	12	17	35	18	16	21
			40	10	37	14	8	20	27	16	13	30	17	16	17
			45	10	32	8	7	20	22	8	12	30	12	16	16
			50	10	25	10	7	20	15	16	12
			55	5	23	15	5	15	13	16	10
12	Magnification		Working Distance (mm)					Magnification
			82					-0.2689557
			73					-0.1929254
			66					-0.1581527
			56					-0.1257691
			48					-0.1080668
			37					-0.0905431
			32					-0.0843280
			23					-0.0750541
13	Operation	Focus	Manual
13	Operation	Aperture	M-Iris

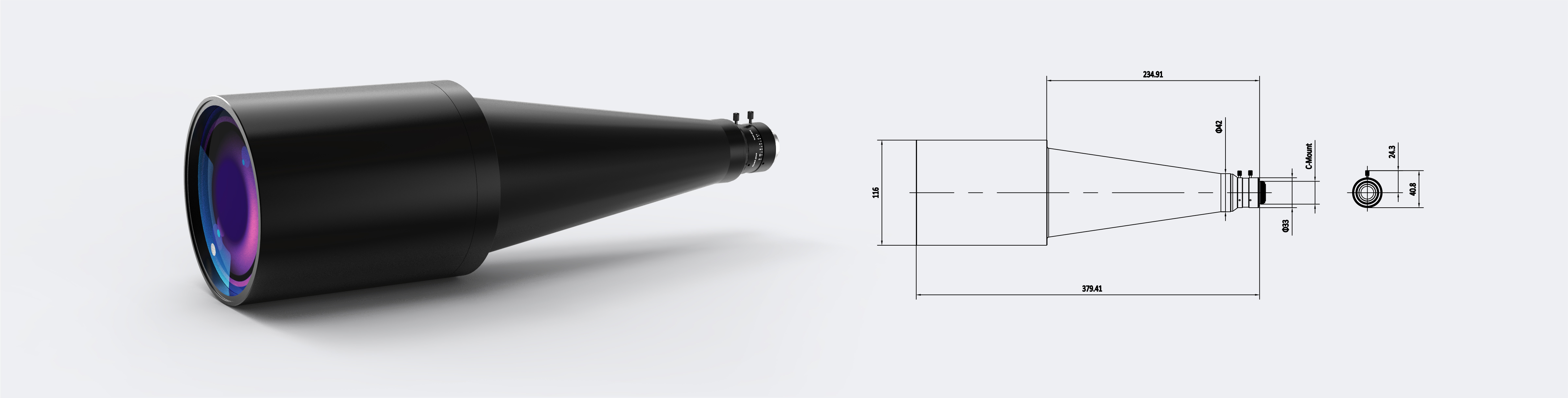

14	Lens Size(W x L)		φ116xφ386mm
15	Weight		＜1000g
