 Simple Focusing tube

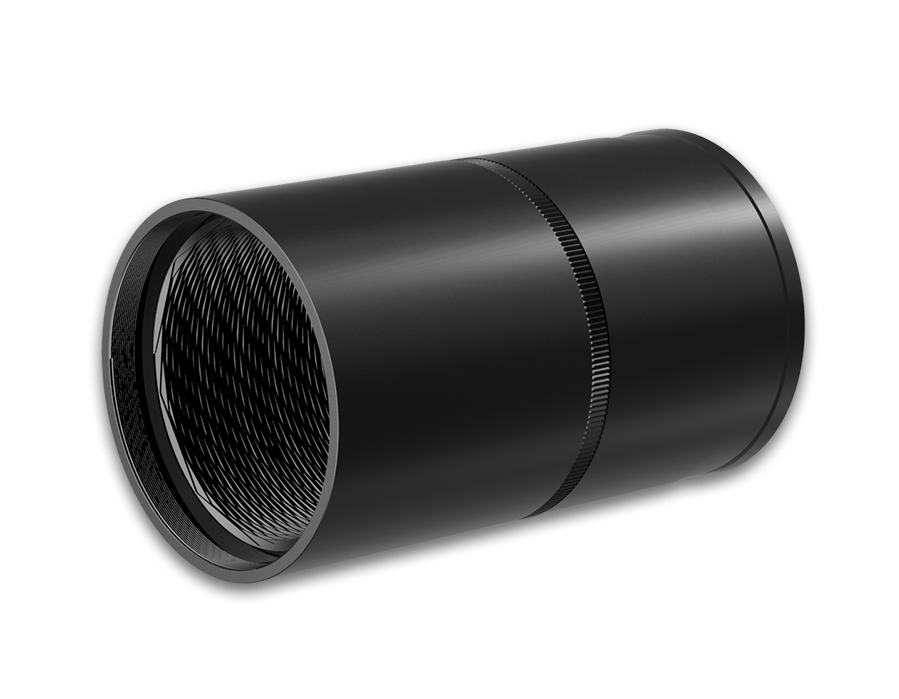

Simple Focusing tube

Commonly used methods for adjusting the spacing of laboratory optics include the use of stages, rails and sliders, as well as other rough adjustments. The displacement platform with high procurement accuracy and long stroke is expensive; when there are multiple components that need to be adjusted synchronously, it will involve the dilemma of whether the space of the experimental platform is sufficient, and if the distance between components is short, it cannot be used. The focusing component provides a series of quick, economical, and sufficiently accurate adjustment methods for users to adjust the spatial position of optical components along the optical axis of the system, as well as for various other applications that require focusing.

Products Related Download

Select..  

Travel range

Select..  

Applicable Extension Tube No.

Select..  

Thread Type

Select..  

Clear

Pro No.

Parameter

Travel range

Applicable Extension Tube No.

Thread Type

Delivery time

Compare

Price

Purchase

505000

Parameter list

Ø56mm

17mm

503000/503001/503002/503003/503006/503007/503008/503009

M52x0.75-Internal-thread

In stock



Consult



505001

Parameter list

Ø50.8mm

12.5mm

503011/503012/503013/503014/503017/503018/503019/503020

M48x0.75-Internal-thread

In stock



Consult



505002

Parameter list

Ø50.8mm

17mm

503022/503023/503024/503025/503028/503029/503030/503031

M42x0.75-Internal-thread

In stock



Consult



505003

Parameter list

Ø38.1mm

12.5mm

503033/503034/503035/503036/503039/503040/503041/503042

M35x0.75-Internal-thread

In stock



Consult



505004

Parameter list

Ø31.75mm

12.5mm

503044/503045/503046/503047/503050/503051/503052/503053

M28.5x0.6-Internal-thread

In stock



Consult



505005

Parameter list

Ø25.4mm

12.5mm

503055/503056/503057/503058/503061/503062/503063/503064

M23.2x0.75-Internal-thread

In stock



Consult



505006

Parameter list

Ø19.05mm

12.5mm

503077/503078/503079/503080/503083/503084/503085/503086

M15x0.75-Internal-thread

In stock



Consult


