Laser Line Polarizing Cube Beamsplitter

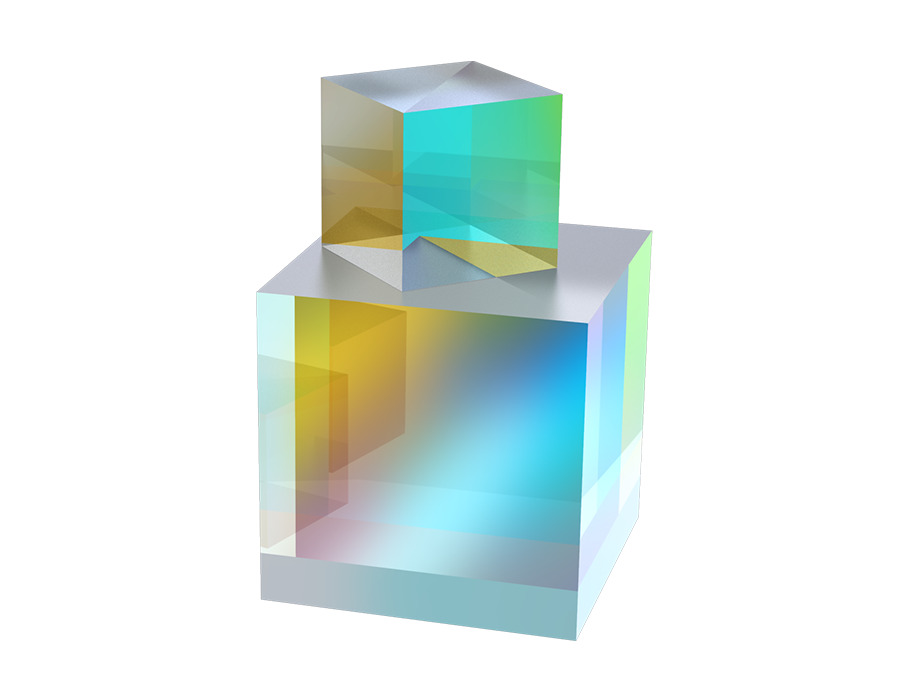

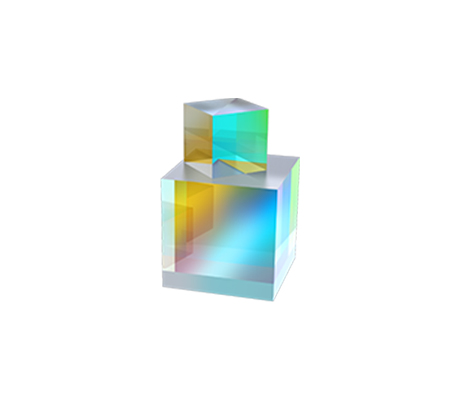

Laser Line Polarizing Cube Beamsplitters are designed for laser wavelengths for gas Laser and solid Laser. Laser Line Polarizing Cube Beamsplitters can divide a random polarized incident light into two orthogonally emitted line polarized light. S-polarized light will be reflected at an angle of 90° from the incident light, while the P-polarized light is transmitted out directly. Laser line polarizing cube beamsplitters consist of a pair of right angle prisms glued together. This structure features high extinction ratio and high transmission, and ensure a good parallelism between incident light and transmission light. Image Optics offer laser line polarizing cube beamsplitters with sizes of 10 mm and 12.7 mm, they are widely used in laser device, laser system, education and scientific research, laser processing and other related fields. We can also provide customized beamsplitters according to your requirements.

Extinction Ratio Tp：Ts＞1000：1

Angle of Incidence 0°

Materia H-ZF3

Transmittance Tp＞90%

Reflectivity Rs＞99.5%

Surface Quality 40-20

Dimension Tolerance +0.0/-0.2

Transmission Beam Deviation ＜5 arc min

Reflection Beam Deviation 90°±5 arc min

Transmission Wavefront Error ＜λ/4@633nm over the full aperture

Coating AR Coating Rabs＜0.25%@Design Wavelength

Bevel Protective Bevel

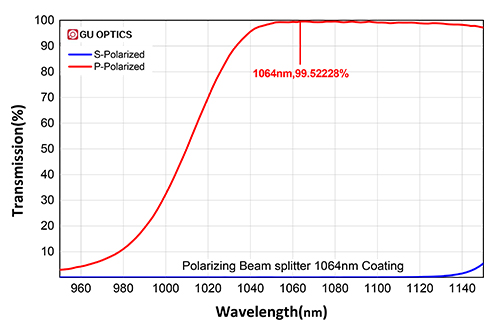

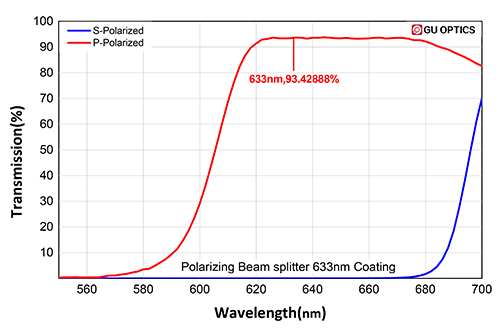

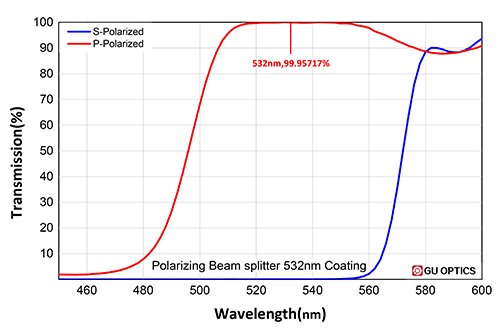

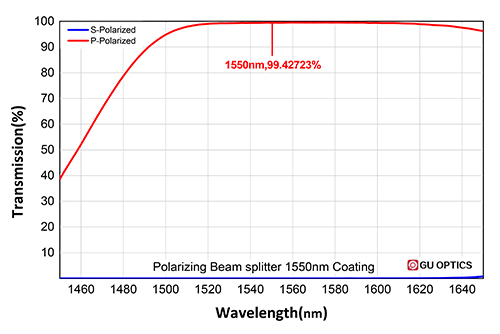

Products Spectral curve Related Download
