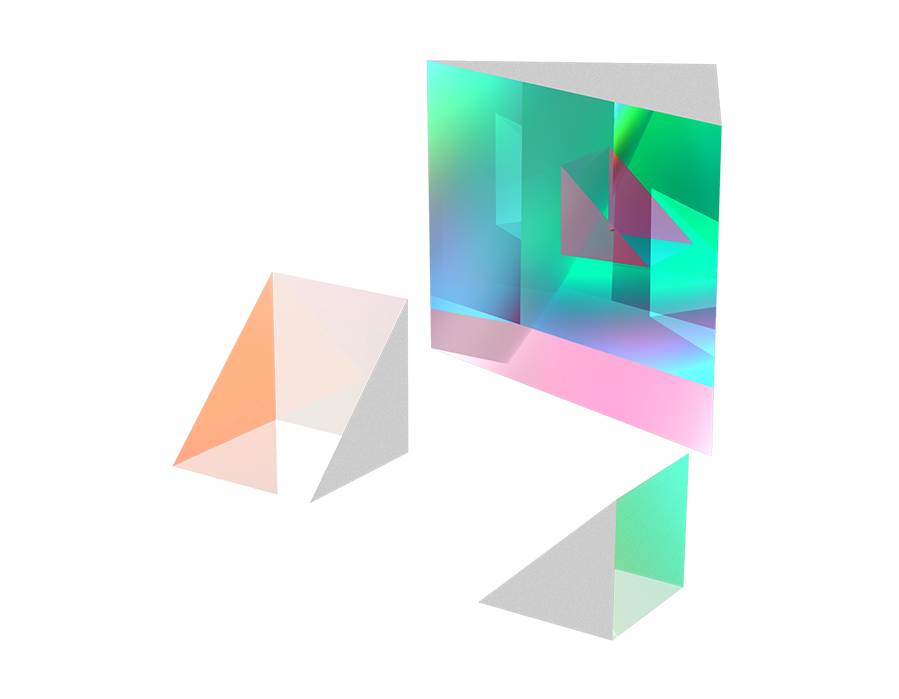

Laser Right Angle Prims
Right Angle Prisms are typically used to bend the image path or turn the light path 90°, combing two right angle prism also can combine the image and deflect the beam. We recommend using 2 right angle prisms with hypotenuse aluminum coated for applications with large AOI. Image Optics offers a wide range of right angle prisms to suit your application。
Laser Right Angle Prims
Material H-K9L Optical Glass,UV Fused Silica(JGS1)
Dimension Tolerance +0.0/-0.1mm
Surface Accuracy λ/10@632.8nm
Surface Quality 20-10
Angle Tolerance ±15 arcsec
Pyramid Tolerance ＜5 arcmin
Bevel ＜0.25mmX45°

Dimension

Coating

Material

Surface Accuracy

Clear
Pro No.
Parameter
Dimension
Coating
Material
Surface Accuracy
Delivery time
Compare
Price
Purchase
469000
Parameter list
A=B=C=5.0mm

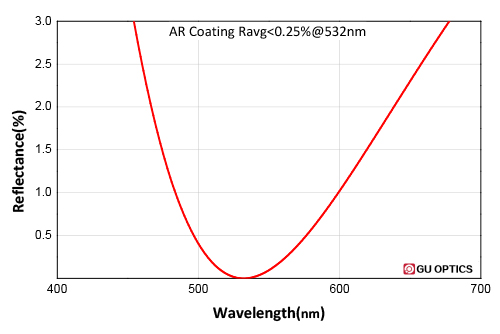

Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
Consult
$46.08
469001
Parameter list
A=B=C=10.0mm
Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
In stock
$46.08
469002
Parameter list
A=B=C=12.5mm
Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
In stock
$51.96
469003
Parameter list
A=B=C=15.0mm
Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
In stock
$57.84
469004
Parameter list
A=B=C=20.0mm
Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
Consult
$57.84
469005
Parameter list
A=B=C=25.0mm
Right-Angled-SurfaceR<0.25%@532nm
H-K9L
λ/10@632.8nm
In stock
$65.69
469006
Parameter list
A=B=C=5.0mm

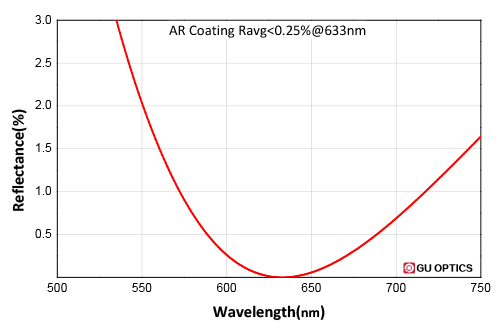

Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$46.08
469007
Parameter list
A=B=C=10.0mm
Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$46.08
469008
Parameter list
A=B=C=12.5mm
Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$51.96
469009
Parameter list
A=B=C=15.0mm
Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$57.84
469010
Parameter list
A=B=C=20.0mm
Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$57.84
469011
Parameter list
A=B=C=25.0mm
Right-Angled-SurfaceR<0.25%@633nm
H-K9L
λ/10@632.8nm
Consult
$65.69
469012
Parameter list
A=B=C=5.0mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$46.08
469013
Parameter list
A=B=C=10.0mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$46.08
469014
Parameter list
A=B=C=12.5mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$51.96
469015
Parameter list
A=B=C=15.0mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$57.84
469016
Parameter list
A=B=C=20.0mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$57.84
469017
Parameter list
A=B=C=25.0mm
Right-Angled-SurfaceR<0.25%@785nm
H-K9L
λ/10@632.8nm
In stock
$65.69
469018
Parameter list
A=B=C=5.0mm

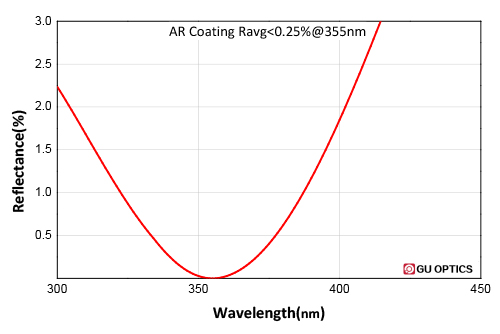

Right-Angled-SurfaceR<0.25%@355nm
JGS1
λ/10@632.8nm
Consult
$69.61
469019
Parameter list
A=B=C=10.0mm
Right-Angled-SurfaceR<0.25%@355nm
JGS1
λ/10@632.8nm
Consult
$77.45
More products >>

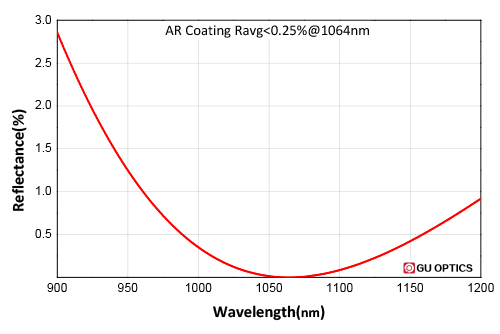

Curve download
