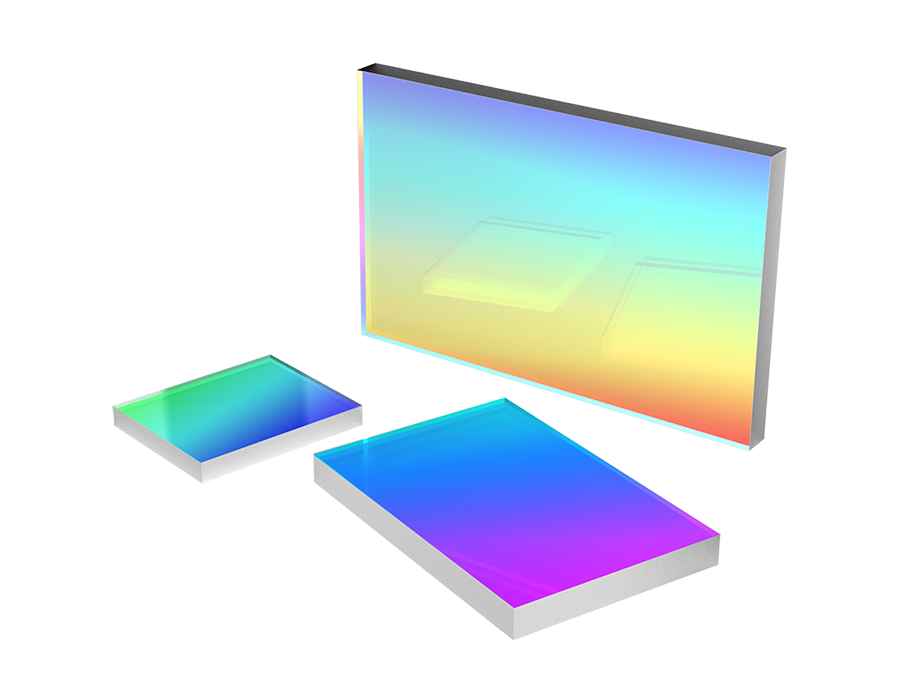

Transmission Grating Beamsplitters

Transmission grating beamsplitters are commonly used for He-Ne laser beam division and multiple laser line separation in visible wavelengths. The transmitted beam is diffracted into multiple orders. Transmission grating beamsplitters consist of a refractive index matched epoxy replica on a polished glass substrate in order to get a high total diffraction efficiency. These beamsplitters are specially designed for He-Ne laser.

Precautions:
Optical gratings can be easily damaged by moisture, fingerprints, aerosols, or the slightest contact with any abrasive material. Gratings should only be handled when necessary and always held by the sides. Latex gloves or a similar protective covering should be worn to prevent oil from fingers from reaching the grating surface. No attempt should be made to clean a grating other than blowing off dust with clean, dry air or nitrogen. Solvents will likely damage the grating's surface.

Substrate Material B270

Surface Quality 60-40

Dimension Tolerance ± 0.5 mm

Thickness Tolerance 3± 0.2 mm

Efficiency 45%~ 65% @ Peak Wavelength

Clear Aperture 90%

Damage Threshold 1 50mJ/cm² @200ns Pulsed Laser

Damage Threshold 2 40W/cm²(CW)Continuous Laser

Products Efficiency curve Related Download

Size

Select..  

Groove Density

Select..  

Substrate Material

Select..  

 B270

Efficiency

Select..  

 45%~65%@Peak-Wavelength

Clear

Pro No.

Parameter

Size

Groove Density

Substrate Material

Efficiency

Delivery time

Compare

Price

Purchase

376530

Parameter list

12.7x12.7x6mm

70Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376531

Parameter list

12.7x12.7x6mm

80Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376532

Parameter list

12.7x12.7x6mm

92Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376533

Parameter list

12.7x12.7x6mm

110Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376534

Parameter list

25x25x9.5mm

70Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376535

Parameter list

25x25x9.5mm

80Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376536

Parameter list

25x25x9.5mm

92Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult



376537

Parameter list

25x25x9.5mm

110Lines/mm

B270

45%~65%@Peak-Wavelength

Consult



Consult


