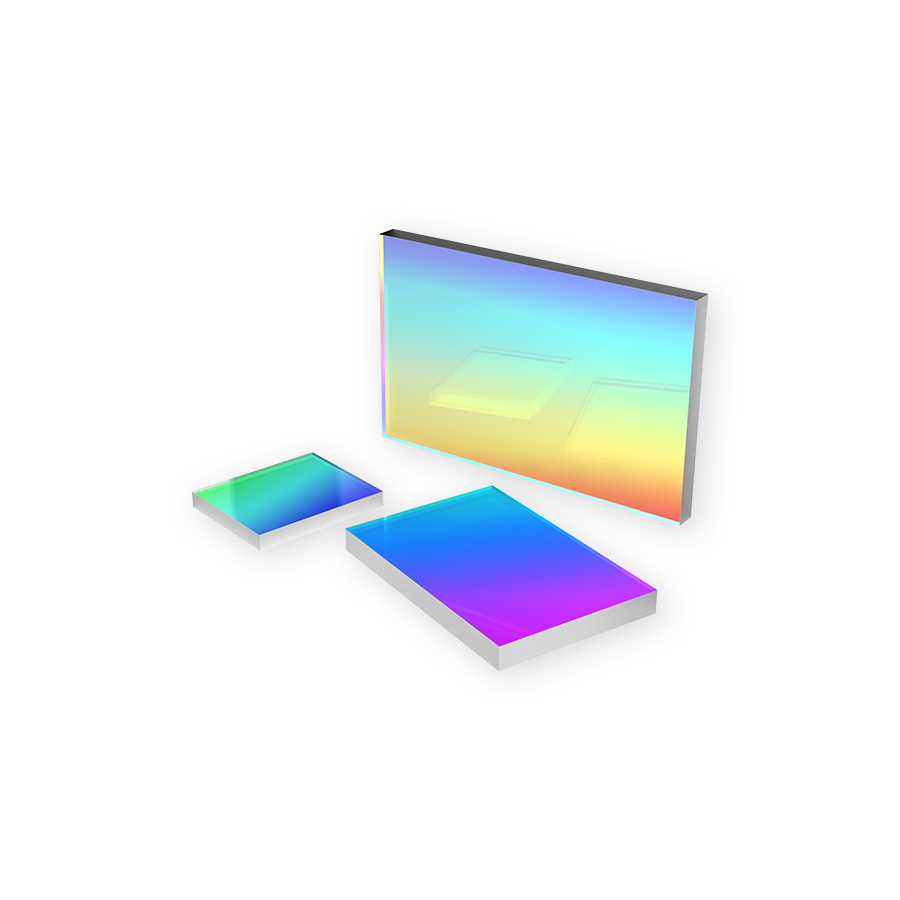

Transmission Grating Beamsplitters 12.7x12.7x6mm 80Lines/mm B270





Share

WeChat

Scan and add Wechat

Transmission Grating Beamsplitters 12.7x12.7x6mm 80Lines/mm B270

Price Option Please Consult

Product No. 376531

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Efficiency Curve Related Products Description

Size 12.7x12.7x6mm

Groove Density 80Lines/mm

Substrate Material B270

He-Ne Typical Distribution of Diffraction Orders @632.8nm (% 0.05

He-Ne Typical Distribution of Diffraction Orders @632.8nm (% 0.25

He-Ne Typical Distribution of Diffraction Orders @632.8nm (% 0.25

He-Ne Typical Distribution of Diffraction Orders @632.8nm (% 0.25

He-Ne Typical Distribution of Diffraction Orders @632.8nm (% 0.05

Surface Quality 60-40

Dimension Tolerance ± 0.5 mm

Thickness Tolerance 3± 0.2 mm

Efficiency 45%~65%@Peak-Wavelength

Clear Aperture 90%

Damage Threshold 50mJ/cm² @200ns Pulsed Laser；40W/cm² （CW）Continuous Laser

Transmission Grating Beamsplitters 12.7x12.7x6mm 92Lines/mm B270

Transmission Grating Beamsplitters 12.7x12.7x6mm 92Lines/mm B270

Transmission Grating Beamsplitters 12.7x12.7x6mm 110Lines/mm B270

Transmission Grating Beamsplitters 12.7x12.7x6mm 110Lines/mm B270

Transmission Grating Beamsplitters 25x25x9.5mm 70Lines/mm B270

Transmission Grating Beamsplitters 25x25x9.5mm 70Lines/mm B270

Transmission Grating Beamsplitters 25x25x9.5mm 80Lines/mm B270

Transmission Grating Beamsplitters 25x25x9.5mm 80Lines/mm B270

Transmission grating beamsplitters are commonly used for He-Ne laser beam division and multiple laser line separation in visible wavelengths. The transmitted beam is diffracted into multiple orders. Transmission grating beamsplitters consist of a refractive index matched epoxy replica on a polished glass substrate in order to get a high total diffraction efficiency. These beamsplitters are specially designed for He-Ne laser.
