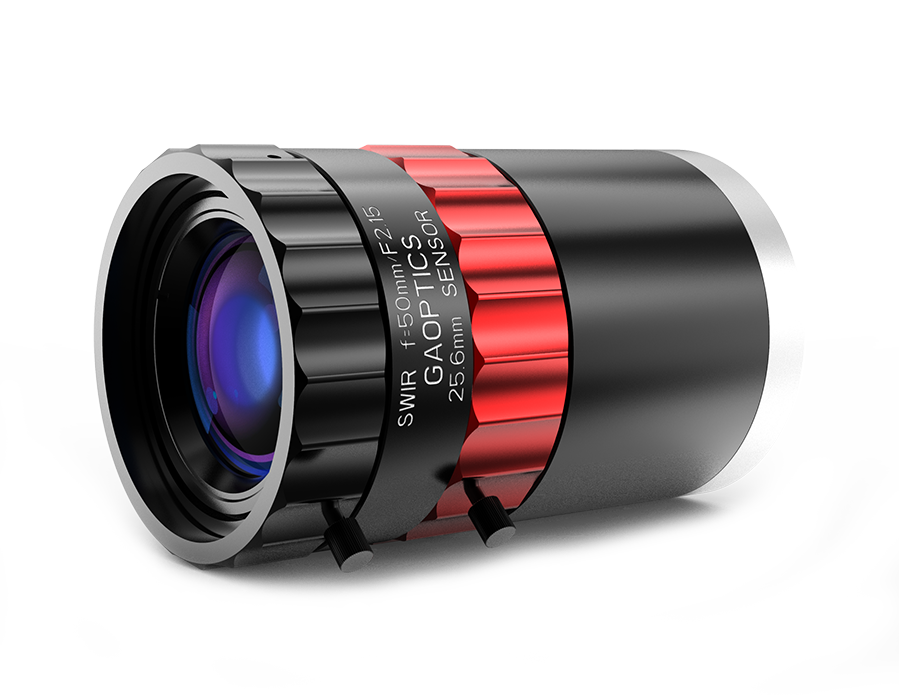

GA 25.6mm SWIR Lenses

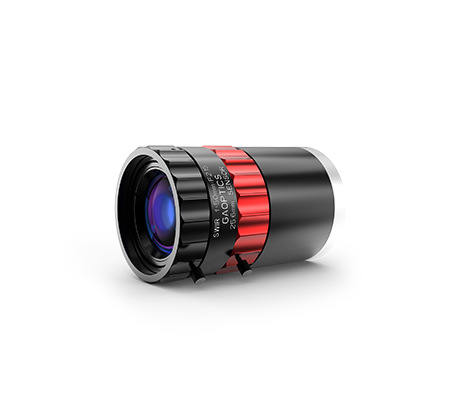

GA 25.6mm SWIR lens, the maximum imaging format is 25.6mm, working wavelength from 800 -1800nm, well compatible with the 2K resolution SWIR camera on the market.

Product characteristics
1. 1.6" Optical Format, Max imaging size is 25.6 mm, 100lp/mm@±4mm, 50lp/mm@±12.8mm；
2. Working wavelength from 800-1800mm;
3. Optical optimization, high consistency between center and edge;
4. High transmission, suitable for low-light environment;
5. Standard C-mount design, matching C-mount infrared cameras

Products Parameter Related Download

Focal Length

Select..  

F/#

Select..  

Working Distance

Select..  

Distrotion

Select..  

Clear

Pro No.

Parameter

Focal Length

F/#

Working Distance

Distrotion

Delivery time

Compare

Price

Purchase

680000

Parameter list

50mm

2.15

275mm～∞

＜1.0%

In stock



$1707.78



680001

Parameter list

25mm

2.1

200mm～∞

＜2.4%

In stock



$1707.78



680002

Parameter list

100mm

2.1

400mm～∞

0.17%@y=12.8mm

In stock



$1859.58



680005

Parameter list

50mm

2.15

275mm～∞

＜1.0%

Consult



$1707.78



680006

Parameter list

50mm

2.15

275mm～∞

＜1.0%

Consult



$1707.78



680008

Parameter list

25mm

2.1

200mm～∞

＜2.4%

Consult



$1707.78



680009

Parameter list

100mm

2.1

400mm～∞

0.17%@y=12.8mm

Consult



$1859.58



680010

Parameter list

100mm

2.1

400mm～∞

0.17%@y=12.8mm

Consult



$1859.58



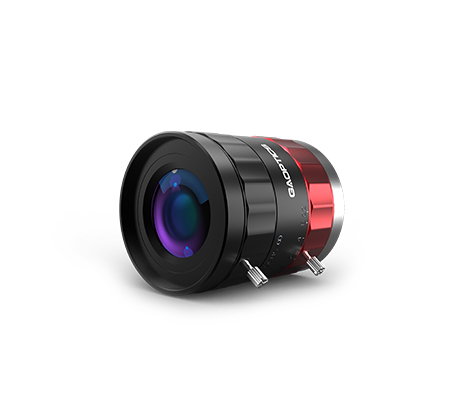

GA 1" SWIR Lenses

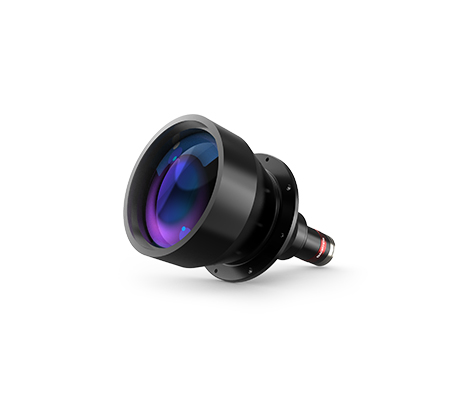

GA Large FOV Double Telecentric Lenses

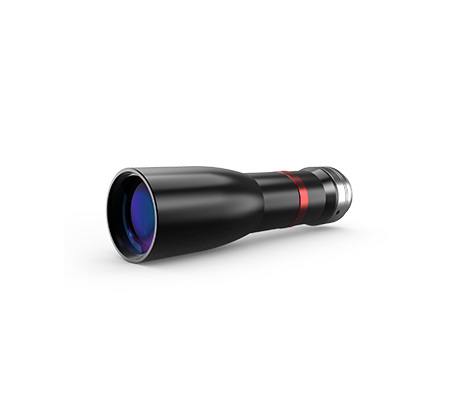

Compact High Magnification Double Telecentric Lenses

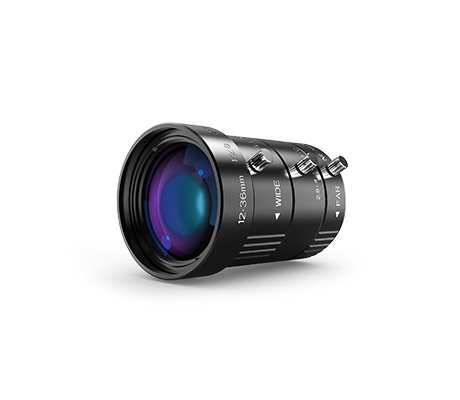

2/3" Manual Zoom Lens
