Focal Length100mm 25.6mm 800-1800nm F Mount SWIR Lens





  Likes

Share

WeChat

Scan and add Wechat

Focal Length100mm 25.6mm 800-1800nm F Mount SWIR Lens

Price Option

Product No. 680009

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

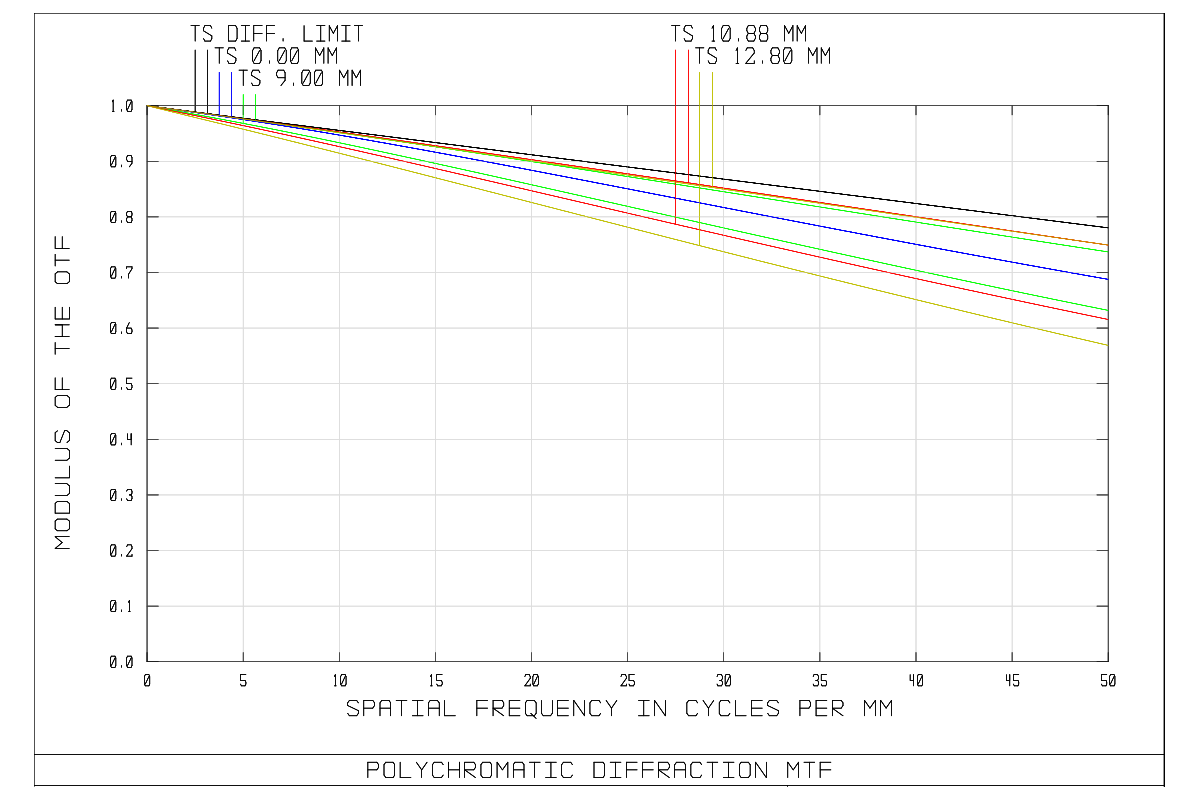

Parameters Specification Data curve Related Products Description

Focal Length 100mm

F/# 2.1

Max. sensor size 25.6mm

Mount F

Working Distance 400mm～∞

Working Wavelength 800-1800nm

FOV 14.33°×11.52°×8.72°

Distrotion 0.17%@y=12.8mm

Weight /

No.	Item		Specifications
1	Max. Sensor size		25.6mm
2	Focal Length		100mm
3	Mount		F-Mount
4	F/#		F2.1-F22
5	Focusing Range		0.4m~∞
6	FOV(Diagonal x H×V)	25.6mm	14.33°×11.52°×8.72°
		4/3"	11.96°×9.68°×7.26°
		1"	9.08°×7.30°×5.50°
		1/2''	4.58°×3.64°×2.80°
7	Object Size (at the minimum focus distance)	25.6mm	109.44×87.55×65.66mm
		4/3"	90.84×72.67×54.50mm
		1"	68.10×54.48×40.86mm
		1/2''	34.00×27.20×20.40mm
8	BFL（in air）		25.485mm
9	Operation	Focus	Manual
9	Operation	Aperture	M-Iris
10	Distortion	25.6mm	0.17%@y=12.8mm
		4/3"	0.12%@y=11.5mm
		1"	0.068%@y=8mm
		1/2''	0.018%@y=4mm
11	Filter Thread		M52X0.75
12	Working Wavelength		800~1700nm

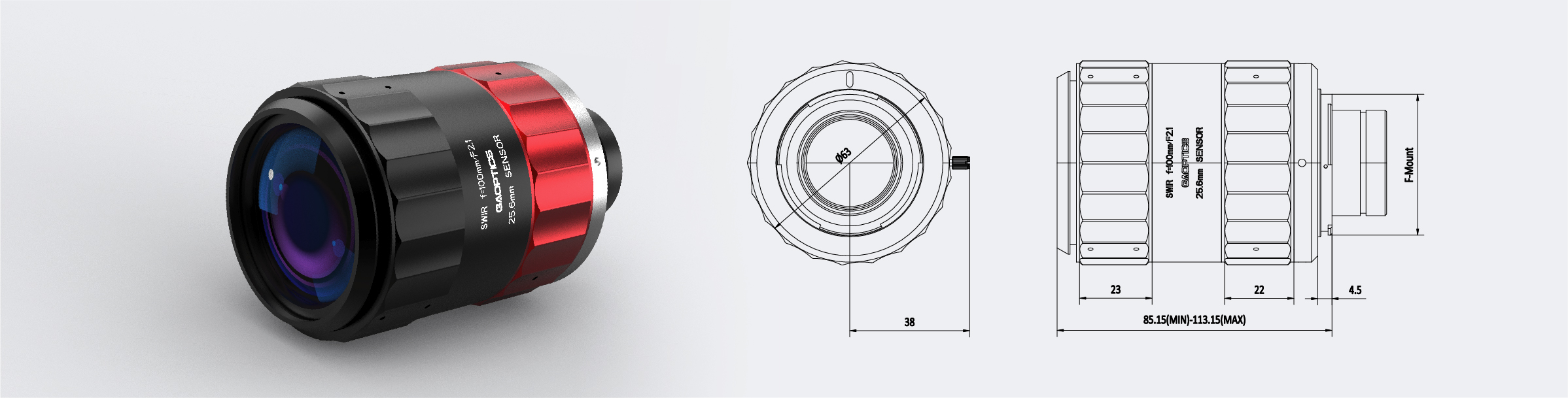

13	Lens Size(W x L)		69.5×141.62mm
14	Weight		/
15	Work Temperature		-10℃～+50℃

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
400mm	-0.2358015	0.62900931	0.630993815
450mm	-0.2109356	0.795933455	0.798759051
500mm	-0.1908138	0.98244082	0.986316811
550mm	-0.1741967	1.188519862	1.193678811
600mm	-0.1602419	1.414159049	1.420856774
650mm	-0.1483571	1.659346859	1.667862435
700mm	-0.1381136	1.924071777	1.934707538
750mm	-0.1291932	2.208322298	2.221403833
800mm	-0.1213552	2.512086926	2.527963084
850mm	-0.1144138	2.835354174	2.85439706
900mm	-0.1082236	3.178112564	3.200717543
950mm	-0.1026688	3.540350626	3.566936321
1000mm	-0.09765641	3.922056901	3.953065194
