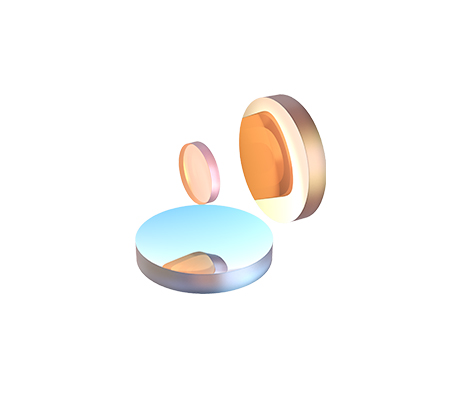

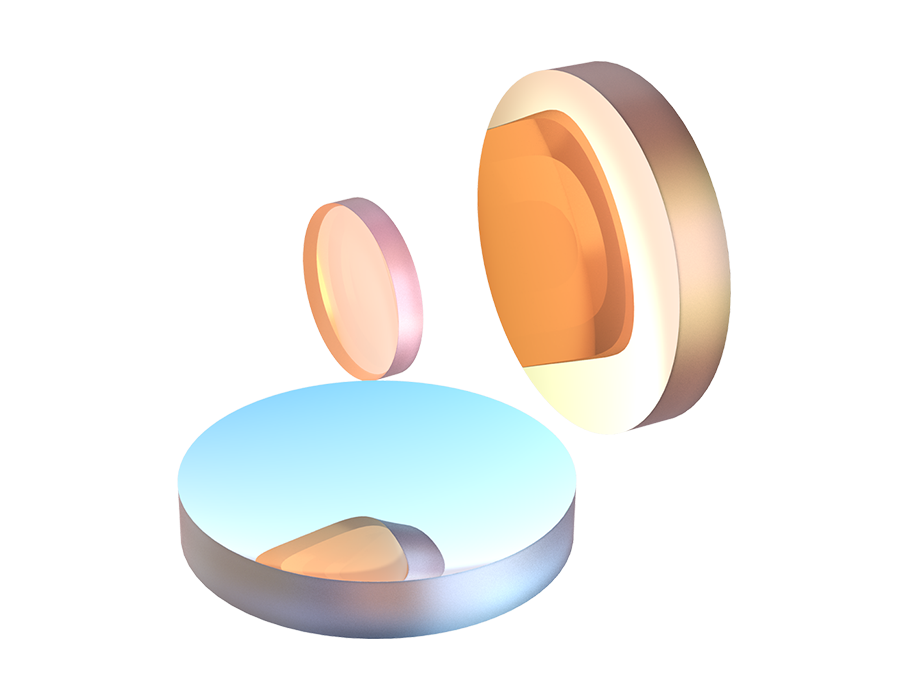

Concave Broadband Metal Laser Mirrors

GU Optics offers standard Borofloat® 33 Concave Broadband Metal Laser Mirrors with angles of incidence of 0° and 15°and spectrum ranges from 266nm to 20000nm. These laser mirrors have characteristics of wide spectral range, large angle of incidence and high reflectivity which meet the needs of various concave broadband metal laser applications. We can offer customized borofloat® 33 concave broadband metal laser mirrors according to your requirements.

Material Borofloat®33

Irregularity(P-V) λ/4@632.8nm

Clear Aperture N/A

Surface Quality 40-20

Angle of Incidence 0-15°

Diameter Tolerance +0/-0.13mm

Thickness Tolerance ±0.25mm

Wedge ≤0.03mm

Bevel Protective Bevel

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

F／#

Select..  

coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

F／#

coating

Delivery time

Compare

Price

Purchase

432500

Parameter list

12.7mm

12.5mm

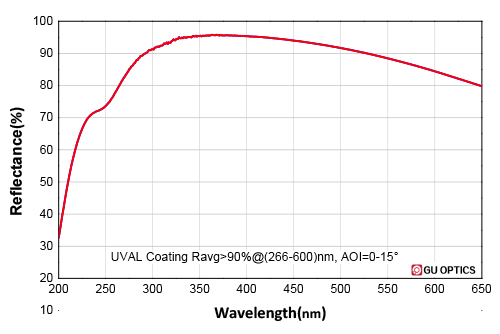

HR@266-600nm

Consult



$125.33



432501

Parameter list

12.7mm

25mm

HR@266-600nm

Consult



$125.33



432502

Parameter list

12.7mm

50mm

3.9

HR@266-600nm

Consult



$125.33



432503

Parameter list

12.7mm

100mm

7.9

HR@266-600nm

Consult



$125.33



432504

Parameter list

12.7mm

250mm

19.7

HR@266-600nm

Consult



$125.33



432505

Parameter list

12.7mm

12.5mm

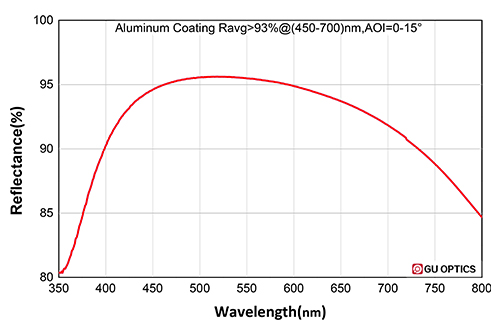

HR@460-700nm

Consult



$125.33



432506

Parameter list

12.7mm

25mm

HR@460-700nm

Consult



$125.33



432507

Parameter list

12.7mm

50mm

3.9

HR@460-700nm

Consult



$125.33



432508

Parameter list

12.7mm

100mm

7.9

HR@460-700nm

Consult



$125.33



432509

Parameter list

12.7mm

250mm

19.7

HR@460-700nm

Consult



$125.33



432510

Parameter list

12.7mm

12.5mm

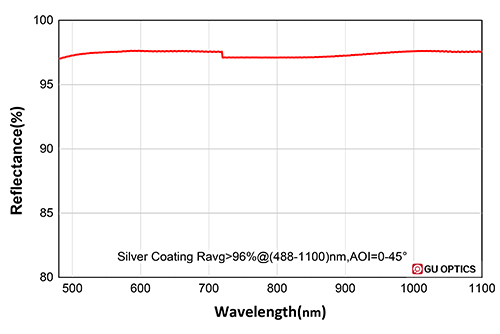

HR@488-1100nm／HR@1.1-20µm

Consult



$125.33



432511

Parameter list

12.7mm

25mm

HR@488-1100nm／HR@1.1-20µm

Consult



$125.33



432512

Parameter list

12.7mm

50mm

3.9

HR@488-1100nm／HR@1.1-20µm

Consult



$125.33



432513

Parameter list

12.7mm

100mm

7.9

HR@488-1100nm／HR@1.1-20µm

Consult



$125.33



432514

Parameter list

12.7mm

250mm

19.7

HR@488-1100nm／HR@1.1-20µm

Consult



$125.33



432515

Parameter list

25.4mm

25mm

HR@266-600nm

Consult



$142.00



432516

Parameter list

25.4mm

50mm

HR@266-600nm

Consult



$142.00



432517

Parameter list

25.4mm

100mm

3.9

HR@266-600nm

Consult



$142.00



432518

Parameter list

25.4mm

250mm

9.8

HR@266-600nm

Consult



$142.00



432519

Parameter list

25.4mm

500mm

19.7

HR@266-600nm

Consult



$142.00



More products >>
