 High Energy Polarizing Beamsplitter Cube

High Energy Polarizing Beamsplitter Cube

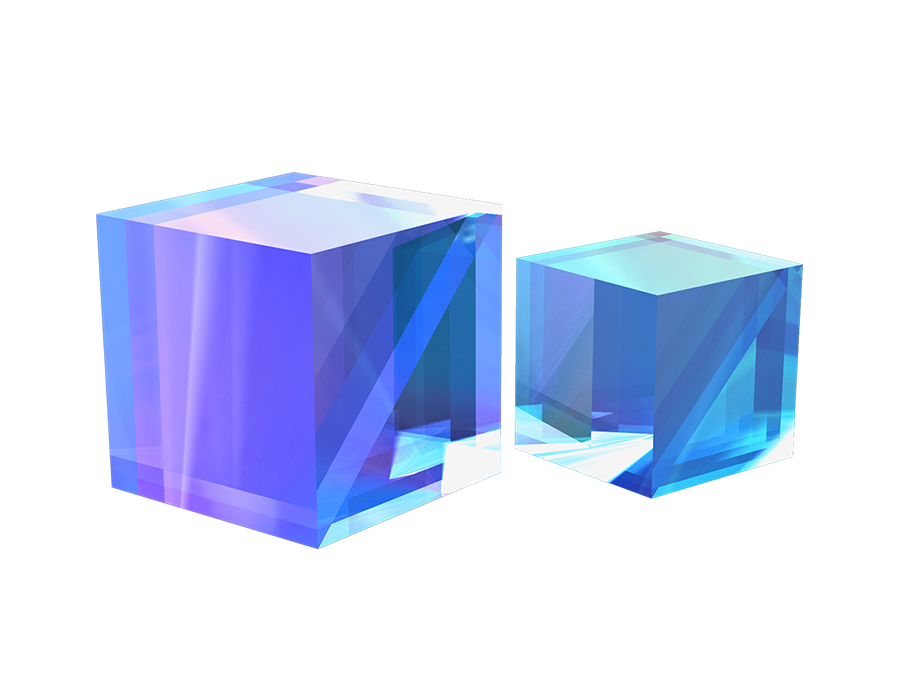

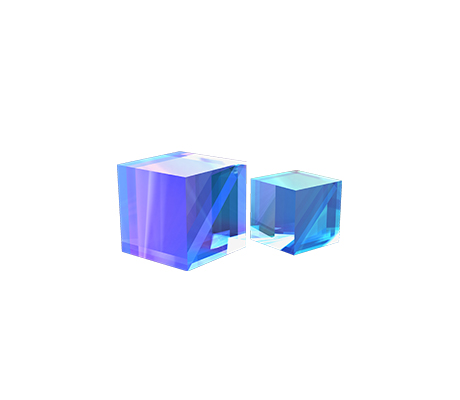

Grand Unified Optics offers High Energy Polarizing Beamsplitter Cube with wavelengths of 266nm, 355nm, 405nm, 532nm, and 1064nm. These polarization cube splitting prisms can split randomly polarized incident light into two orthogonally emitted linear polarized lights. S-polarized light will be reflected at an angle of 90° to the incident light, and split P-polarized light will be transmitted directly. These polarized cube beam splitter prisms are composed of a pair of right-angled prisms glued together. This structure makes it have the characteristics of high extinction ratio, high light transmittance, high laser damage threshold, etc., and also ensures that the incident light and the emitted light have good transmission. Parallelism. These high-energy laser polarization cube beam splitter prisms are widely used in lasers, laser systems, education and scientific research, laser processing and other products and related fields. At the same time, we can also provide high energy laser polarization cube according to your requirements.

消光比 Tp：Ts＞2000：1

入射角 0°

材料紫外熔融石英

面形精度 λ/10@633nm

透过效率 Tp ＞ 96%

反射效率 Rs＞99.5%

表面光洁度 20-10

尺寸误差 +0.0/-0.2

透射光偏移＜5 arc min

反射光偏移 90°±5 arc min

镀膜 AR Coating R＜0.25%@设计波长

Products Spectral curve Related Download

Dimension

Select..  

 25.4×25.4×25.4mm

Extinction Ratio

Select..  

 Tp:Ts＞2000:1

DWL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dimension

Extinction Ratio

DWL

Coating

Delivery time

Compare

Price

Purchase

452500

Parameter list

25.4×25.4×25.4mm

Tp:Ts＞2000:1

266nm

R＜0.25%@266nm

Consult



$525.83



452501

Parameter list

25.4×25.4×25.4mm

Tp:Ts＞2000:1

355nm

R＜0.25%@355nm

Consult



$525.83



452502

Parameter list

25.4×25.4×25.4mm

Tp:Ts＞2000:1

405nm

R＜0.25%@405nm

Consult



$525.83



452503

Parameter list

25.4×25.4×25.4mm

Tp:Ts＞2000:1

532nm

R＜0.25%@532nm

Consult



$525.83



452504

Parameter list

25.4×25.4×25.4mm

Tp:Ts＞2000:1

1064nm

R＜0.25%@1064nm

Consult



$525.83


