Infinity Corrected LWD Microscope Objectives | GU OPTICS

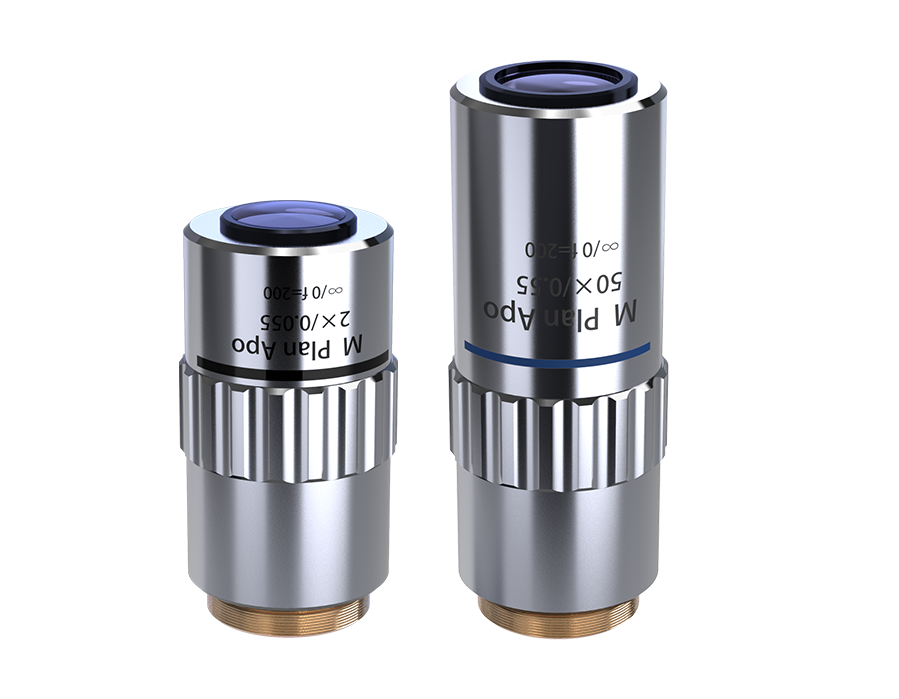

Infinity Corrected LWD Microscope Objectives
GU Optics has launched 2x, 5x, 10x, 20x, 50x and 100x long working distance microscope objectives, its spectral wavelength range is 400-700nm. This objective adopts Plan Apochromatic Designs, which can correct red, blue and yellow light. It has the characteristics of Ultra-Long Working Distances and Large Numerical Aperture. These objectives are widely used in bright field inspection, education and scientific research.

Product characteristics
1. Spectral wavelength range is 400-700nm;
2. Adopts Plan Apochromatic Designs, can correct red, blue and yellow light;
3. Ultra-Long Working Distances and Large N.A.;

Infinity Corrected LWD Microscope Objectives
Pro No.
Parameter
Magnification
NA
Working Distance
Resolution
Delivery time
Compare
Price
Purchase
2X
0.06
34mm
5μm
Consult
$851.04
10X
0.28
34mm
1μm
Consult
$915.56
20X
0.42
20mm
0.7μm
Consult
$1856.74
50X
0.55
13mm
0.5μm
Consult
$2386.15
100X
0.7
7mm
0.4μm
Consult
$3185.01

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:

This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
