10X M PLAN APO Infinity Corrected LWD Microscope Objectives





Share

WeChat

Scan and add Wechat

10X M PLAN APO Infinity Corrected LWD Microscope Objectives

Price Option

Product No. 690002

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

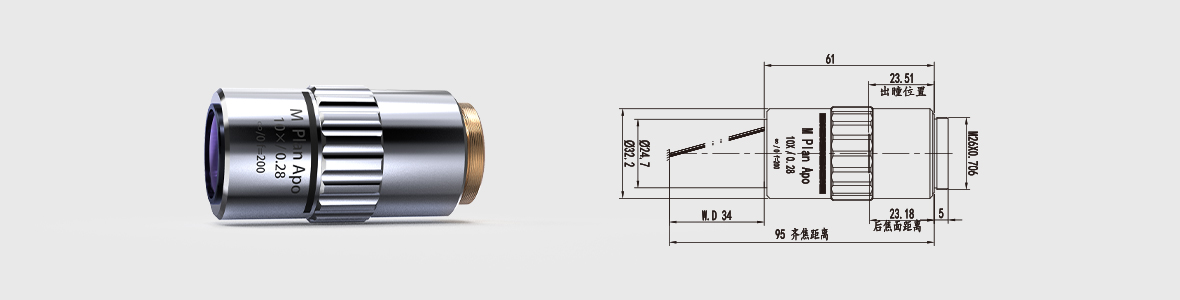

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 10X

NA 0.28

Working Distance 34mm

Focal Length 20mm

Wavelength 400~700nm

Depth of Focus 3.5μm

Diameter of exit pupil 11.2mm

Resolution 1μm

Focal Length of Tube Lens f200mm

FOV 1/2"Sensor 0.48X0.64mm

FOV 2/3"Sensor 0.66X0.88mm

Length（thread not included） 61mm

Thread M26X0.706

Type M Plan APO

Curve Download

2X M PLAN APO Infinity Corrected LWD Microscope Objectives

5X M PLAN APO Infinity Corrected LWD Microscope Objectives

20X M PLAN APO Infinity Corrected LWD Microscope Objectives

50X M PLAN APO Infinity Corrected LWD Microscope Objectives

Grand Unified Optics( Beijing)Co., Ltd pushed out the Infinity Corrected LWD Microscope objectives with the magnification 2X、5X、10X、20X、50X、100X, its wavelength range is 400nm~700nm and adopts 。
