Line Scan Lenses

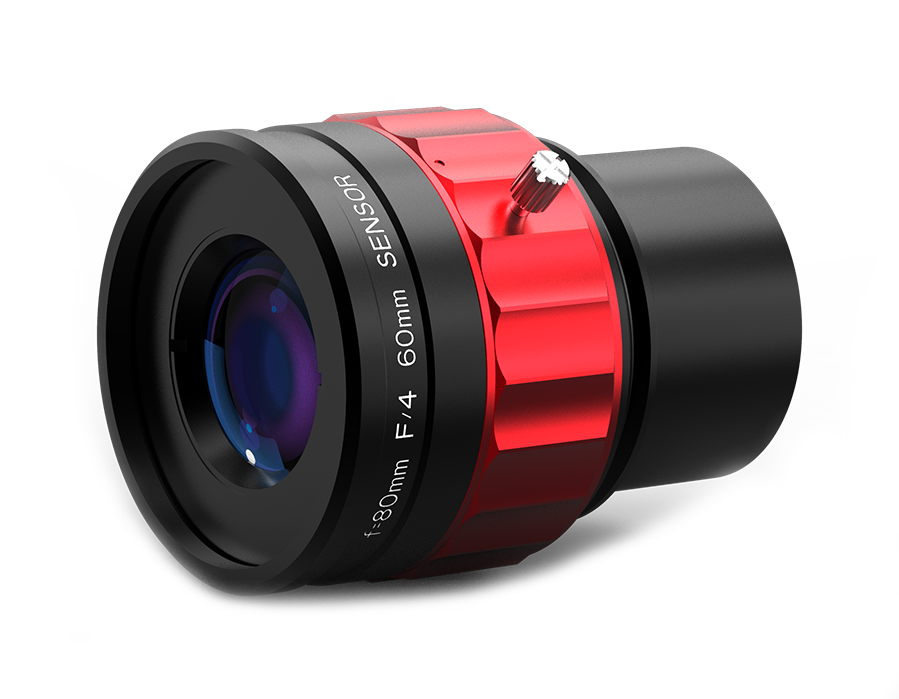

GA V8K Line Scan Lenses

 GA V8K Line Scan Lenses

GA V8K Line Scan Lenses

GAOPTICS V8K Line Scan Lens are specially designed for large format cameras, the maximum imaging sensors up to 60mm, suitable for 8k7μ line scan cameras, compatible with 8k5μ line scan cameras; adopt V-mount design, has a variety of magnification; Used in PCB, LCD, semiconductor inspection and other fields.

Product characteristics
1. Maximum imaging sensors up 60mm;
2. Match 8k7μline scan cameras, compatible with 8k5μ line scan cameras;
3. High resolution & low distortion;
4. Applied to high requirements for color restoration;
5. Used for PCB, LCD, semiconductor inspection, etc.

Products Parameter Related Download

Focal Length

Select..  

F/#

Select..  

Max. sensor size

Select..  

 60mm

Magnification

Select..  

Clear

Pro No.

Parameter

Focal Length

F/#

Max. sensor size

Magnification

Delivery time

Compare

Price

Purchase

620100

Parameter list

60mm

F4.0-F22

60mm

0.0x～1.0x

Consult



$910.82



620101

Parameter list

80mm

F4.0～22

60mm

0.0x～0.33x

Consult



$910.82


