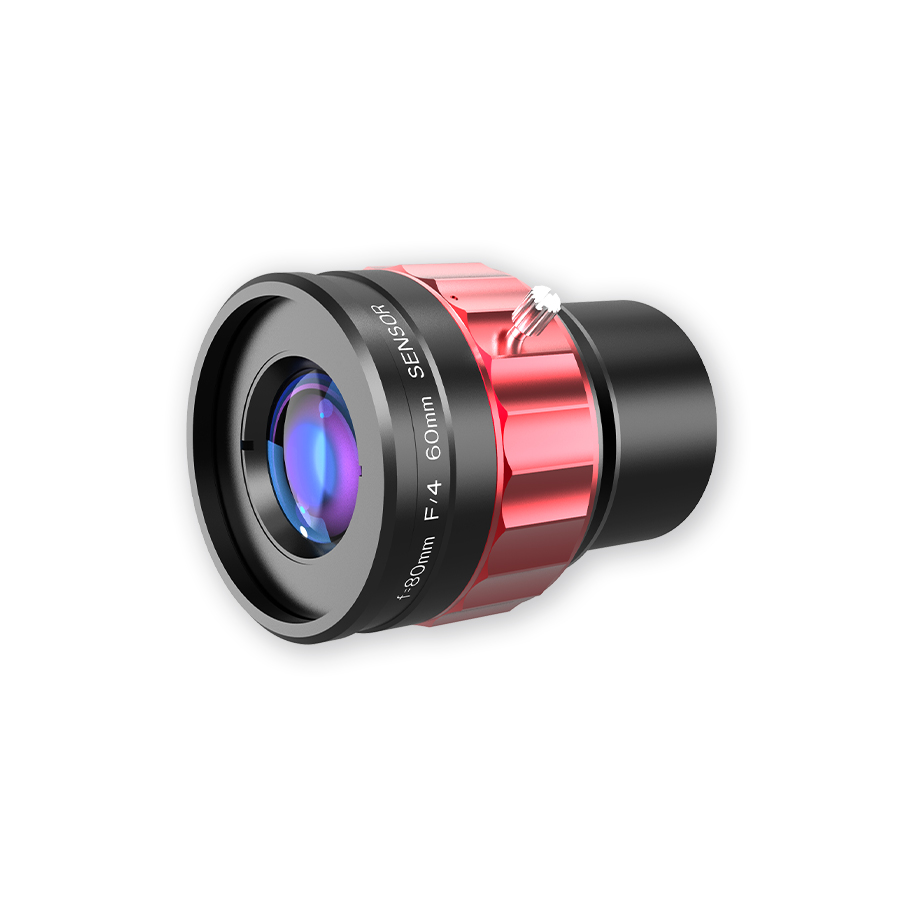

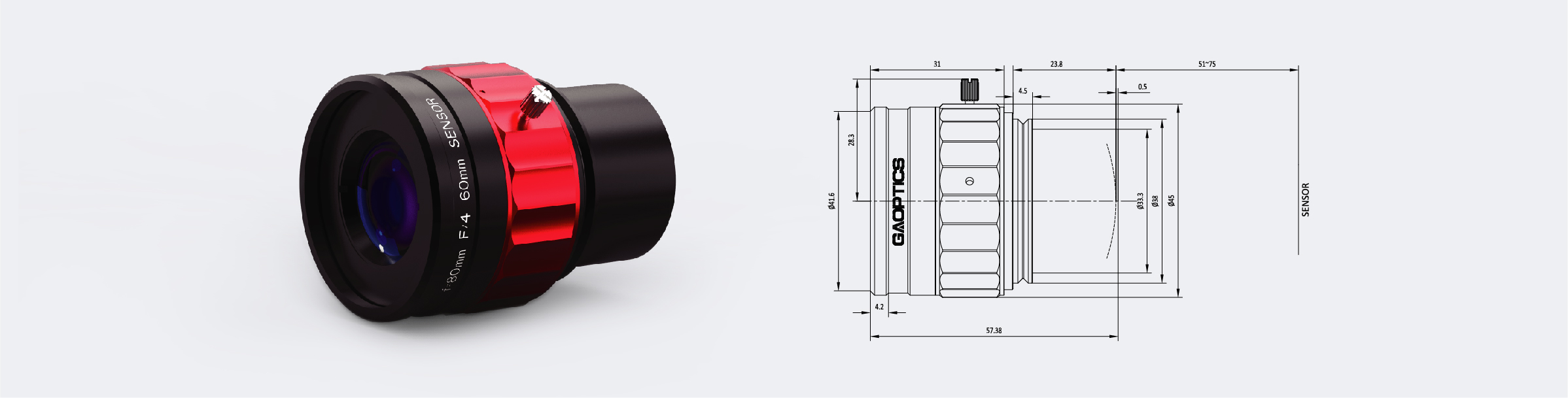

Focal Length 80mm 0.0x～0.33x Φ60mm V-mount Line Scan Lens





  Likes

Share

WeChat

Scan and add Wechat

Focal Length 80mm 0.0x～0.33x Φ60mm V-mount Line Scan Lens

Price Option

Product No. 620101

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 80mm

F/# F4.0～22

Max. sensor size 60mm

Magnification 0.0x～0.33x

Working Wavelength 400～1000nm

Mount V-mount

Weight /

No	Item		Specifications
1	Max. sensor size		60mm
2	Focal Length		80mm
3	Mount		V-Mount
4	F/#		F4～22
5	Working Distance		0.3m～∞
6	FOV	8K7u/60mm	40.57°
		8K5u/40mm	27.70°
7	Object Size (at the minimum focus distance)	8K7u/60mm	193.97mm
		8K5u/40mm	129.31mm
8	BFL（in air）		51mm～75mm
9	Operation	Focus	Fixed
		Aperture	Manual
10	Distortion	8K7u/60mm	-0.11/-0.08%@y=30mm（0.3m/inf）
		8K5u/40mm	-0.049/0.028y=20mm(0.3m/inf)
11	Filter thread		M39×0.5mm
12	Lens Size(W x L)		51.1×57.38mm
13	Weight		172g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		21.10
16	Diameter of entrance pupil		20
17	Distance of exit pupil		-77.74
18	Diameter of exit pupil		19.18
19	Total optical length		104.08mm（inf）
20	Magnification		-0.34（0.3m）
21	First principal plane point		21.56mm
22	2nd principal plane point		26.94mm

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)	Optical BFL(mm)	M72 Adapter	M72 Extension
325mm	-0.30933	0.692	0.695	76.0986	670204	670203(50mm)+670201(10mm)+670200(5mm)
350mm	-0.28232	0.802	0.806	73.9268	670204	670203(50mm)+670201(10mm)+670200(5mm)
400mm	-0.24042	1.047	1.053	70.5402	670204	670203(50mm)+670201(10mm)
450mm	-0.20937	1.325	1.333	68.0302	670204	670203(50mm)+670201(10mm)
500mm	-0.18543	1.635	1.646	66.0956	670204	670203(50mm)+670201(10mm)
550mm	-0.16653	1.978	1.992	64.5657	670204	670203(50mm)+670201(10mm)
600mm	-0.15091	2.353	2.372	63.3083	670204	670203(50mm)+670201(10mm)
650mm	-0.13807	2.761	2.785	62.2712	670204	670203(50mm)+670201(10mm)
700mm	-0.12723	3.201	3.23	61.397	670204	670203(50mm)+670201(10mm)
1730mm	-0.05000	18.733	19.155	55.22	670204	670202(25mm)+670201(10mm)+670200(5mm)

Curve Download

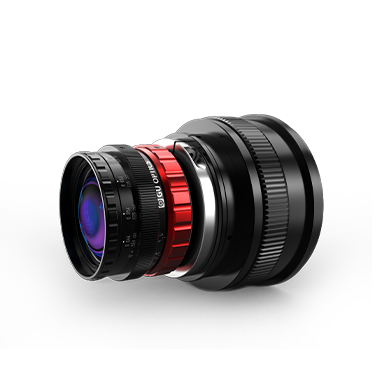

焦距 60mm 0.2x～0.75x Φ60mm M72x0.75 线扫镜头

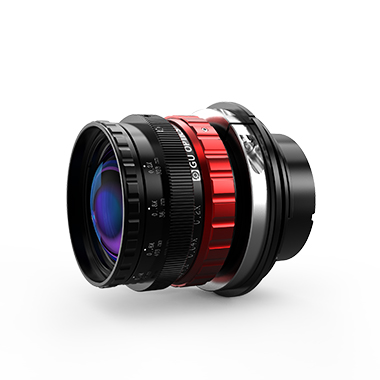

焦距 60mm 0.04x～0.2x Φ60mm F-mount 线扫镜头

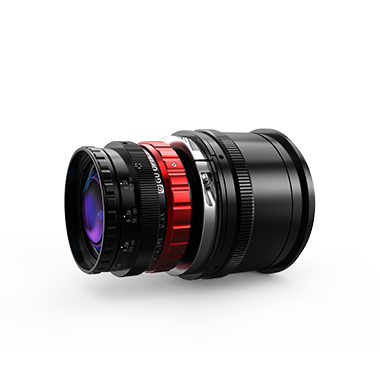

焦距 60mm 0.04x～0.2x Φ60mm M58x0.75 线扫镜头

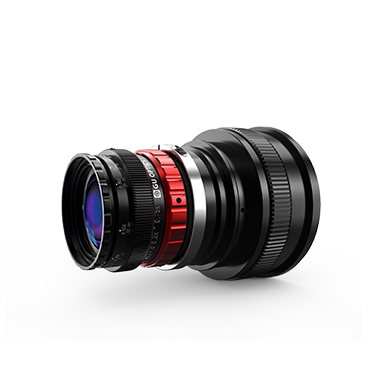

焦距 60mm 0.04x～0.2x Φ60mm M72x0.75 线扫镜头

GAOPTICS push out new series of V8K Line Scan Lens, they are specially designed for large format cameras, the maximum imaging sensors up 60mm, suitable for 8k7μ line scan cameras, compatible with 8k5μ line scan cameras; adopt V interface design, with a variety of magnification; Applicable to PCB, LCD, semiconductor inspection and other fields.
