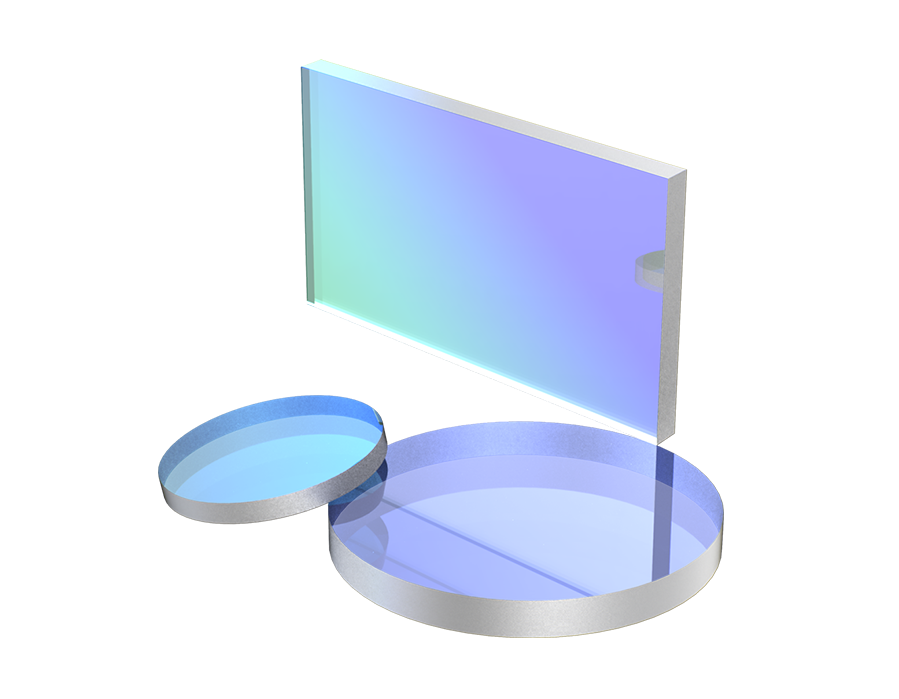

Borofloat®33 Laser line Dielectric Mirrors

GU Optics offers standard Borofloat® 33 Laser Mirrors with angle if incidence of 0° and 45°. These laser mirrors have the characteristics of wide angle of incidence, high reflectivity, medium-high laser damage threshold, which meets the requirements of various laser reflection applications. We can also offer customized borofloat® 33 laser mirrors to meet your requirements.

Material Borofloat® 33

Irregularity(P-V) λ/10@632.8nm

Clear Aperture ≥80%

Surface Quality Better than 20-10

Diameter Tolerance +0/-0.13 mm

Thickness Tolerance ±0.25 mm

Bevel Protective Bevel

Products Spectral curve Related Download

Dia

Select..  

Thickness

Select..  

Coating

Select..  

Angle of Incidence

Select..  

 0-45°

Clear

Pro No.

Parameter

Dia

Thickness

Coating

Angle of Incidence

Delivery time

Compare

Price

Purchase

431008

Parameter list

Φ12.7mm

3.1mm

HR@632.8nm

0-45°

In stock



$86.00



431009

Parameter list

Φ12.7mm

3.1mm

HR@(488-514.5)nm

0-45°

In stock



$89.33



431010

Parameter list

Φ12.7mm

3.1mm

HR@441.6nm

0-45°

In stock



$97.67



431011

Parameter list

Φ12.7mm

3.1mm

HR@(1520-1580)nm

0-45°

In stock



$92.67



431012

Parameter list

Φ12.7mm

3.1mm

HR@(1030-1090)nm

0-45°

In stock



$83.17



431013

Parameter list

Φ12.7mm

3.1mm

HR@532nm

0-45°

In stock



$83.17



431014

Parameter list

Φ25.4mm

6.0mm

HR@632.8nm

0-45°

In stock



$126.00



431015

Parameter list

Φ25.4mm

6.0mm

HR@(488-514.5)nm

0-45°

In stock



$126.00



431016

Parameter list

Φ25.4mm

6.0mm

HR@441.6nm

0-45°

In stock



$135.17



431017

Parameter list

Φ25.4mm

6.0mm

HR@(1520-1580)nm

0-45°

In stock



$142.67



431018

Parameter list

Φ25.4mm

6.0mm

HR@(1030-1090)nm

0-45°

In stock



$121.00



431019

Parameter list

Φ25.4mm

6.0mm

HR@532nm

0-45°

In stock



$115.50



431020

Parameter list

Φ30.0mm

6.0mm

HR@632.8nm

0-45°

In stock



$166.50



431021

Parameter list

Φ30.0mm

6.0mm

HR@(1030-1090)nm

0-45°

In stock



$166.50



431022

Parameter list

Φ30.0mm

6.0mm

HR@532nm

0-45°

In stock



$149.83



431023

Parameter list

Φ50.8mm

12.7mm

HR@632.8nm

0-45°

In stock



$205.83



431024

Parameter list

Φ50.8mm

12.7mm

HR@(1520-1580)nm

0-45°

In stock



$261.00



431025

Parameter list

Φ50.8mm

12.7mm

HR@(1030-1090)nm

0-45°

In stock



$239.17



431026

Parameter list

Φ50.8mm

12.7mm

HR@532nm

0-45°

In stock



$239.17



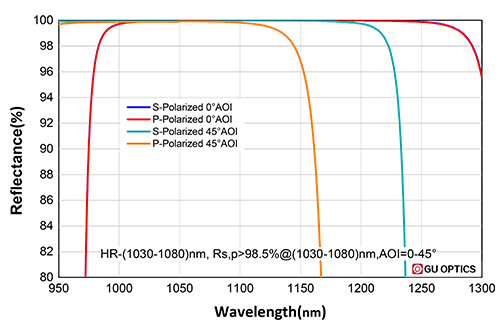

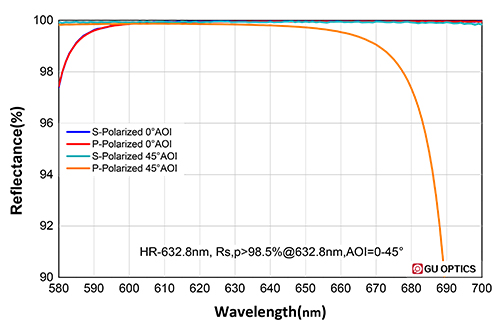

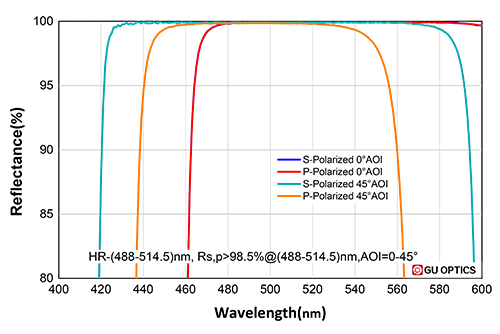

Curve download
