Nd:YAG Harmonic Beam Splitter

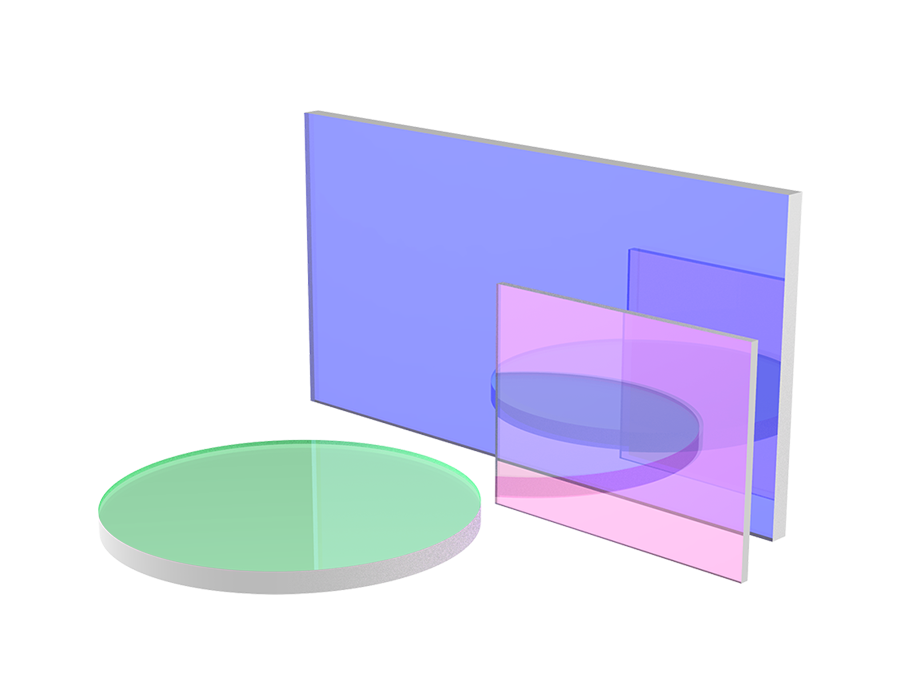

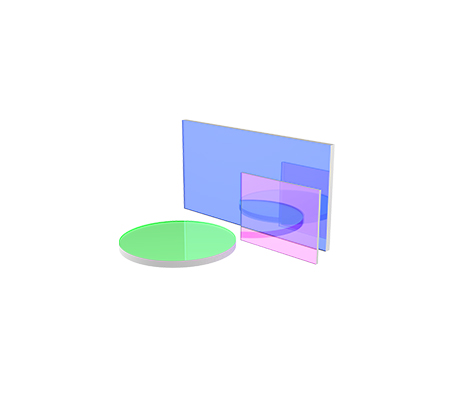

Grand Unified Optics offers 12.7mm, 25.4mm diameter Nd:YAG harmonic beam splitter. This product uses a special coating principle to achieve good transmission/reflection effects for different laser wavelengths, thereby realizing the effect of light splitting. At present, there are standard products with incidence angles of 10°, 45°, reflection 266nm, 355nm, transmission 532nm&1064nm, and we can also provide cube according to your requirements

Material C7980

NA ＞95%

Surface Quality 20-10

Dimension Tolerance 0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel

Products Spectral curve Related Download

Dimension

Select..  

Angle of Incidence

Select..  

Coating

Select..  

Surface Accuracy

Select..  

Clear

Pro No.

Parameter

Dimension

Angle of Incidence

Coating

Surface Accuracy

Delivery time

Compare

Price

Purchase

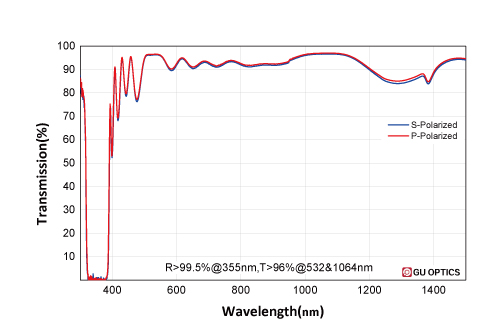

453000

Parameter list

φ12.7×6.35

10°

355HR-532-1064AR

λ/10@633nm

Consult



$195.83



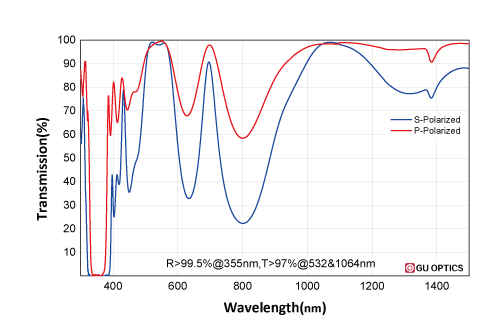

453002

Parameter list

φ25.4×5

45°

355HR-532-1064AR

≥λ/2@633nm

Consult



$229.17



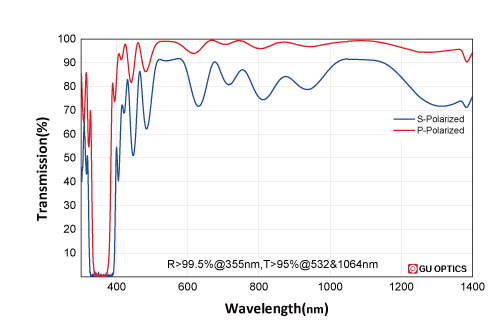

453003

Parameter list

φ25.4×5

45°

355HR-532-1064AR

≥λ/2@633nm

Consult



$209.17



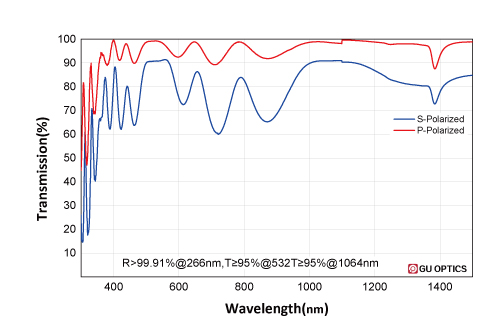

453004

Parameter list

φ25.4×8

45°

266HR-532-1064AR

λ/4@633nm

Consult



$209.17



Curve download
