Laser Plano-Convex (PCX) Lenses

 Laser Plano-Convex (PCX) Lenses

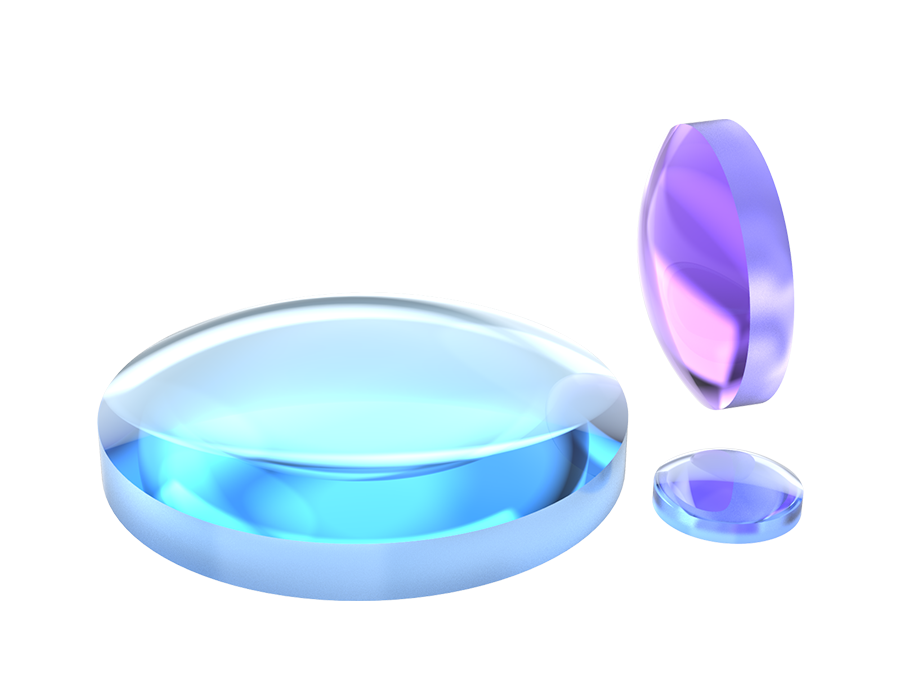

Laser Plano-Convex (PCX) Lenses

Grand Unified Opticsoffer laser plano-convex lenses specially designed for wavelengths 355 nm, 532 nm and 1064 nm. Manufactured from Corning 7980 substrate material and coated with high transmission AR coatings. Corning 7978 offers high transmittance and laser damage threshold up to 20J/cm². These high power laser plano-convex lenses have a wide range of applications in the fields of education, scientific research and laser processing. We can also customize high power laser plano-convex lenses to meet your needs.

Reflectivity Ravg＜0.25%

Angle of Incidence (AOI) 0°

Material Corning 7980

Irregularity(P-V) λ/8@633nm

Clear Aperture ≥90%

Surface Quality ＜20-10

Center Deviation ＜3′

Diameter Tolerance +0/-0.1mm

Focal Length Tolerance ±1%

Center Thickness Tolerance ±0.1mm

Bevel Protective Bevel

Damage Threshold 1 20J/cm²@1064nm,20ns（AR@1064nm）

Damage Threshold 2 6.8J/cm²@532nm,20ns（AR@532nm）

Damage Threshold 3 5J/cm²@355nm,20ns（AR@355nm）

Damage Threshold 4 15J/cm²@1064nm,20ns（AR@1064 and 532nm）

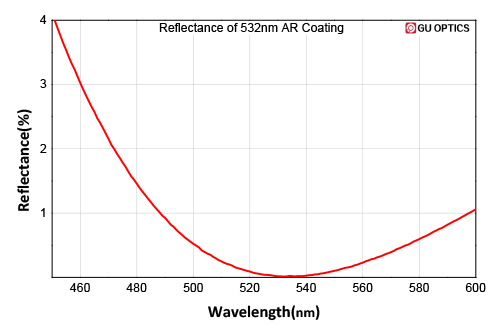

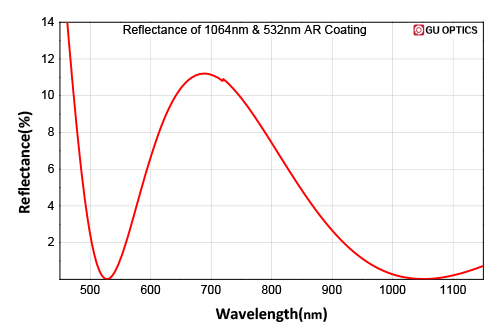

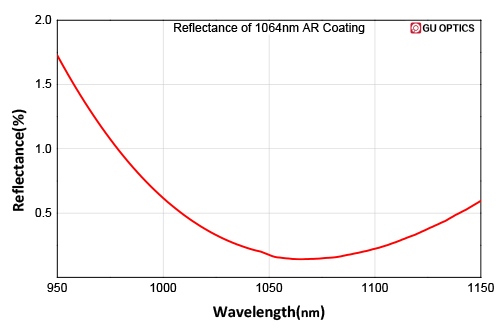

Products Spectral curve Related Download

Dia

Select..  

 25.4mm

EFL

Select..  

Coating

Select..  

Angle of Incidence

Select..  

 0°

Clear

Pro No.

Parameter

Dia

EFL

Coating

Angle of Incidence

Delivery time

Compare

Price

Purchase

400000

Parameter list

25.4mm

100mm

AR@1064nm

0°

In stock



$165.83



400001

Parameter list

25.4mm

125mm

AR@1064nm

0°

Consult



$165.83



400002

Parameter list

25.4mm

150mm

AR@1064nm

0°

In stock



$165.83



400003

Parameter list

25.4mm

200mm

AR@1064nm

0°

Consult



$165.83



400004

Parameter list

25.4mm

50.0mm

AR@1064nm

0°

In stock



$165.83



400005

Parameter list

25.4mm

75.0mm

AR@1064nm

0°

In stock



$165.83



400006

Parameter list

25.4mm

100mm

AR@532nm

0°

In stock



$165.83



400007

Parameter list

25.4mm

125mm

AR@532nm

0°

In stock



$165.83



400008

Parameter list

25.4mm

150mm

AR@532nm

0°

In stock



$165.83



400009

Parameter list

25.4mm

200mm

AR@532nm

0°

In stock



$165.83



400010

Parameter list

25.4mm

50.0mm

AR@532nm

0°

In stock



$165.83



400011

Parameter list

25.4mm

75.0mm

AR@532nm

0°

In stock



$165.83



400012

Parameter list

25.4mm

100mm

AR@355nm

0°

In stock



$165.83



400013

Parameter list

25.4mm

125mm

AR@355nm

0°

In stock



$165.83



400014

Parameter list

25.4mm

150mm

AR@355nm

0°

In stock



$165.83



400015

Parameter list

25.4mm

200mm

AR@355nm

0°

In stock



$165.83



400016

Parameter list

25.4mm

50.0mm

AR@355nm

0°

In stock



$165.83



400017

Parameter list

25.4mm

75.0mm

AR@355nm

0°

In stock



$165.83



400018

Parameter list

25.4mm

33mm

AR@1064nm

0°

Consult



$172.50



400019

Parameter list

25.4mm

250mm

AR@1064nm

0°

In stock



$165.83



More products >>
