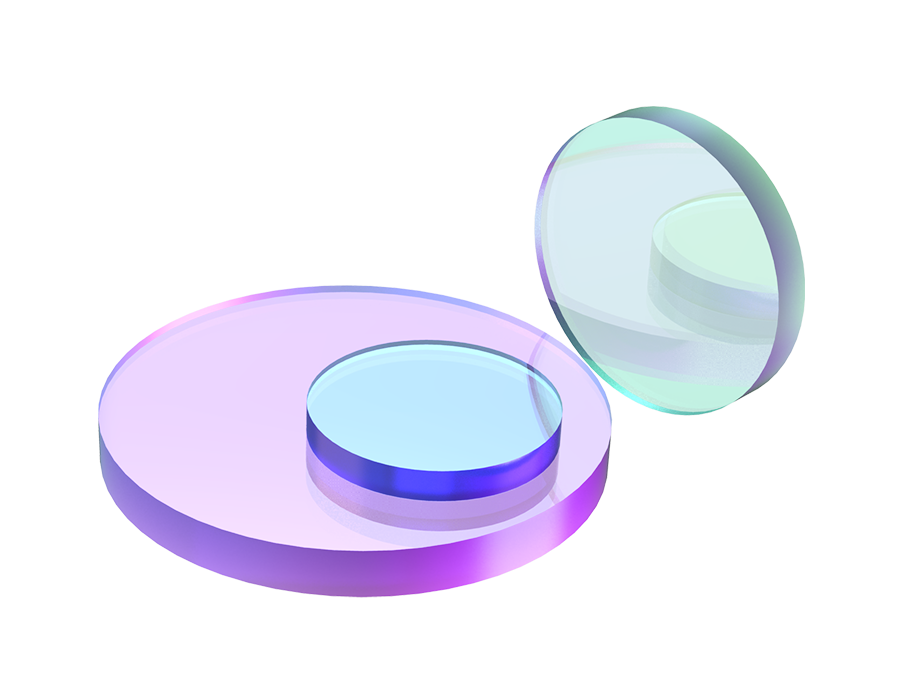

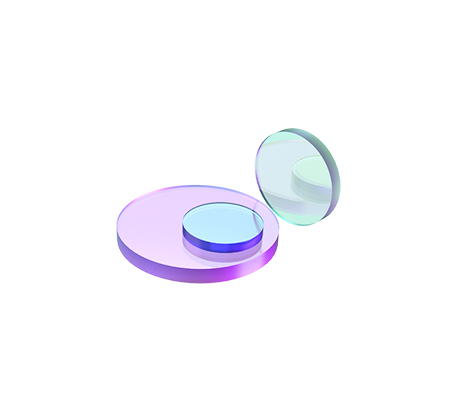

Laser Flat Windows
Flat windows are flat-parallel plates which can protect electronic sensors or detectors without blocking transmission. Flat windows do not change the magnification of the system. We offer various sizes of Laser flat windows.
Laser Flat Windows
Material H-K9L Optical Glass
Surface Accuracy λ/10 @ 633 nm
Parallelism ＜5 arcsec
Surface Quality 20-10
Diameter Tolerance +0.0/-0.1mm
Thickness Tolerance ±0.2mm
Bevel Protective Bevel 0.2~0.5mmX45°

Dia

Thickness

Coating

Material

Clear
Pro No.
Parameter
Dia
Thickness
Coating
Material
Delivery time
Compare
Price
Purchase
416000
Parameter list
Φ5.0mm
2.0mm
R＜0.25%@532nm
H-K9L
In stock
$29.17
416001
Parameter list
Φ10.0mm
2.0mm
R＜0.25%@532nm
H-K9L
In stock
$29.17
416002
Parameter list
Φ12.5mm
3.0mm
R＜0.25%@532nm
H-K9L
In stock
$34.17
416003
Parameter list
Φ12.7mm
3.0mm
R＜0.25%@532nm
H-K9L
In stock
$34.17
416004
Parameter list
Φ20.0mm
4.0mm
R＜0.25%@532nm
H-K9L
In stock
$39.17
416005
Parameter list
Φ25.0mm
6.0mm
R＜0.25%@532nm
H-K9L
In stock
$55.83
416006
Parameter list
Φ25.4mm
6.0mm
R＜0.25%@532nm
H-K9L
In stock
$55.83
416007
Parameter list
Φ30.0mm
6.0mm
R＜0.25%@532nm
H-K9L
In stock
$81.67
416008
Parameter list
Φ38.1mm
10.0mm
R＜0.25%@532nm
H-K9L
In stock
$96.67
416009
Parameter list
Φ50.0mm
10.0mm
R＜0.25%@532nm
H-K9L
In stock
$129.17
416010
Parameter list
Φ50.8mm
10.0mm
R＜0.25%@532nm
H-K9L
In stock
$129.17
416011
Parameter list
Φ5.0mm
2.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$29.17
416012
Parameter list
Φ10.0mm
2.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$29.17
416013
Parameter list
Φ12.5mm
3.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$34.17
416014
Parameter list
Φ12.7mm
3.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$34.17
416015
Parameter list
Φ20.0mm
4.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$39.17
416016
Parameter list
Φ25.0mm
6.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$55.83
416017
Parameter list
Φ25.4mm
6.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$55.83
416018
Parameter list
Φ30.0mm
6.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$81.67
416019
Parameter list
Φ38.1mm
10.0mm
R＜0.25%@632.8nm
H-K9L
In stock
$96.67
More products >>

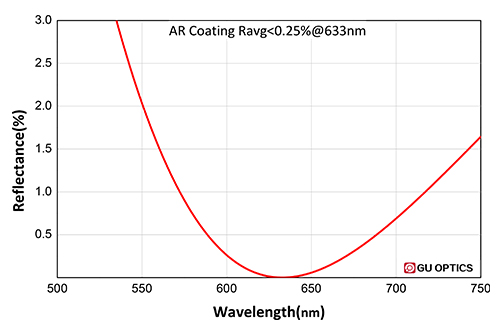

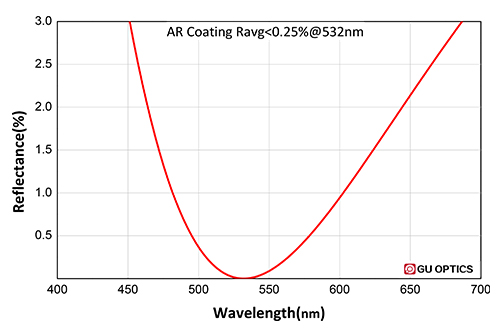

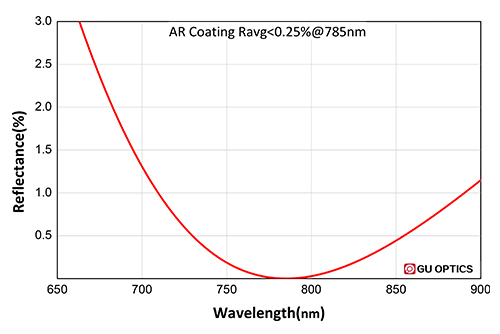

Curve download

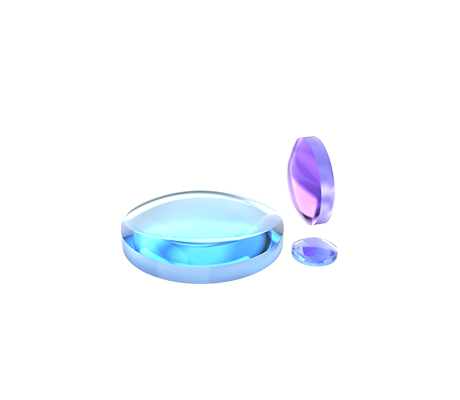

Laser Plano-Convex (PCX) Lenses
