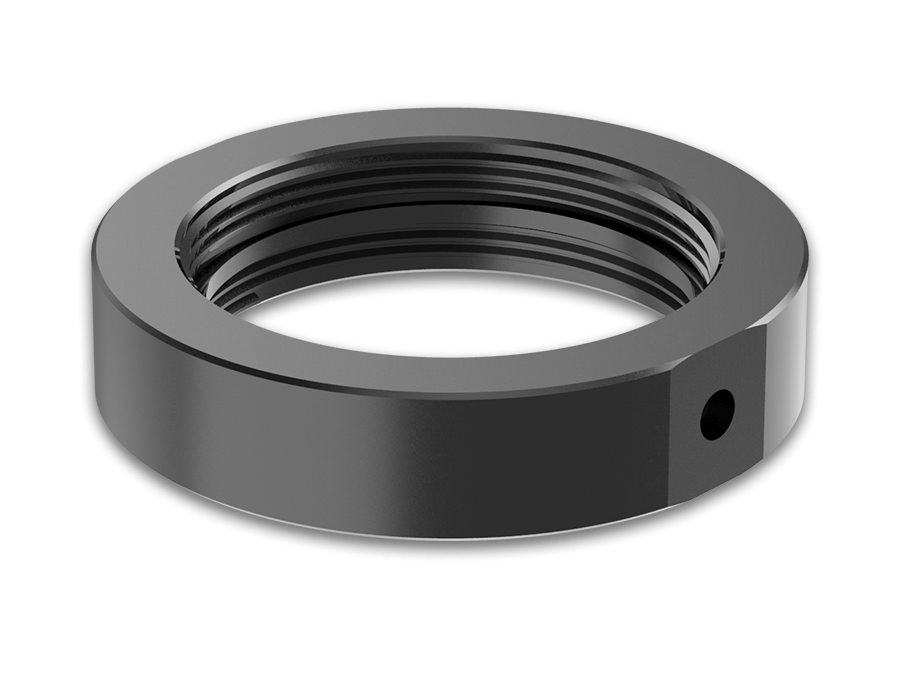

Frame Fixing Ring
The usual optical laboratory has been equipped with a common optical table, as well as height-adjustable support rods and posts connected to the table. The optical bridge system provides the optical system frame fixing ring for the fixing of the assembled optical components in the optical path system and the interconnection with other products.
Frame Fixing Ring
Pro No.
Parameter
D
d(mm)
Port 1-Screw Threads
Prot 2-Screw Threads
Delivery time
Compare
Price
Purchase
Ø69mm
Ø50.8mm
M52x0.75-internal-thread
M52x0.75-internal-thread
In stock
Consult
Ø57mm
Ø38.1mm
M42x0.75-internal-thread
M42x0.75-internal-thread
In stock
Consult
Ø50.8mm
Ø31.75mm
M35x0.75-internal-thread
M35x0.75-internal-thread
In stock
Consult
Ø45mm
Ø25.4mm
M28.5x0.6-internal-thread
M28.5x0.6-internal-thread
In stock
Consult
Ø38.1mm
Ø19.5mm
M23.2x0.75-internal-thread
M23.2x0.75-internal-thread
In stock
Consult
Ø69mm
Ø50.8mm
N/A
N/A
In stock
Consult
Ø57mm
Ø38.1mm
N/A
N/A
In stock
Consult
Ø50.8mm
Ø31.75mm
N/A
N/A
In stock
Consult
Ø45mm
Ø25.4mm
N/A
N/A
In stock
Consult
Ø38.1mm
Ø19.05mm
N/A
N/A
In stock
Consult
Ø69mm
Ø48mm
M52x0.75-internal-thread
M52x0.75-internal-thread
In stock
Consult
Ø65mm
Ø38mm
M48x0.75-internal-thread
M48x0.75-internal-thread
In stock
Consult
Ø59mm
Ø38mm
M42x0.75-internal-thread
M42x0.75-internal-thread
In stock
Consult
Ø50.8mm
Ø30mm
M35x0.75-internal-thread
M35x0.75-internal-thread
In stock
Consult
Ø45mm
Ø24mm
M28.5x0.6-internal-thread
M28.5x0.6-internal-thread
In stock
Consult
Ø40mm
Ø18.5mm
M23.2x0.75-internal-thread
M23.2x0.75-internal-thread
In stock
Consult
Ø31.75mm
Ø11.5mm
M15x0.75-internal-thread
M15x0.75-internal-thread
In stock
Consult
