50X M PLAN APO Infinity Corrected LWD Microscope Objectives





Share

WeChat

Scan and add Wechat

50X M PLAN APO Infinity Corrected LWD Microscope Objectives

Price Option

Product No. 690004

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

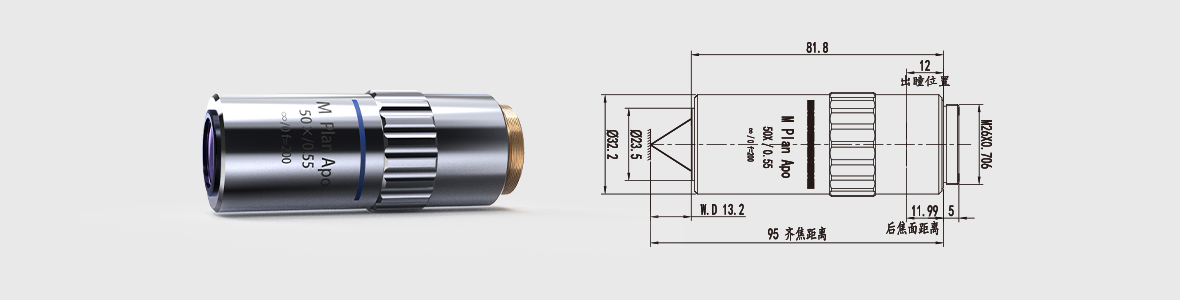

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 50X

NA 0.55

Working Distance 13mm

Focal Length 4mm

Wavelength 400~700nm

Depth of Focus 0.9μm

Diameter of exit pupil 4.4mm

Resolution 0.5μm

Focal Length of Tube Lens f200mm

FOV 1/2"Sensor 0.1X0.13mm

FOV 2/3"Sensor 0.132X0.176mm

Length（thread not included） 82mm

Thread M26X0.706

Type M Plan APO

Curve Download

2X M PLAN APO Infinity Corrected LWD Microscope Objectives

5X M PLAN APO Infinity Corrected LWD Microscope Objectives

10X M PLAN APO Infinity Corrected LWD Microscope Objectives

100X M PLAN APO Infinity Corrected LWD Microscope Objectives

Grand Unified Optics( Beijing)Co., Ltd pushed out the Infinity Corrected LWD Microscope objectives with the magnification 2X、5X、10X、20X、50X、100X, its wavelength range is 400nm~700nm and adopts 。
