5X M PLAN APO Infinity Corrected LWD Microscope Objectives





Share

WeChat

Scan and add Wechat

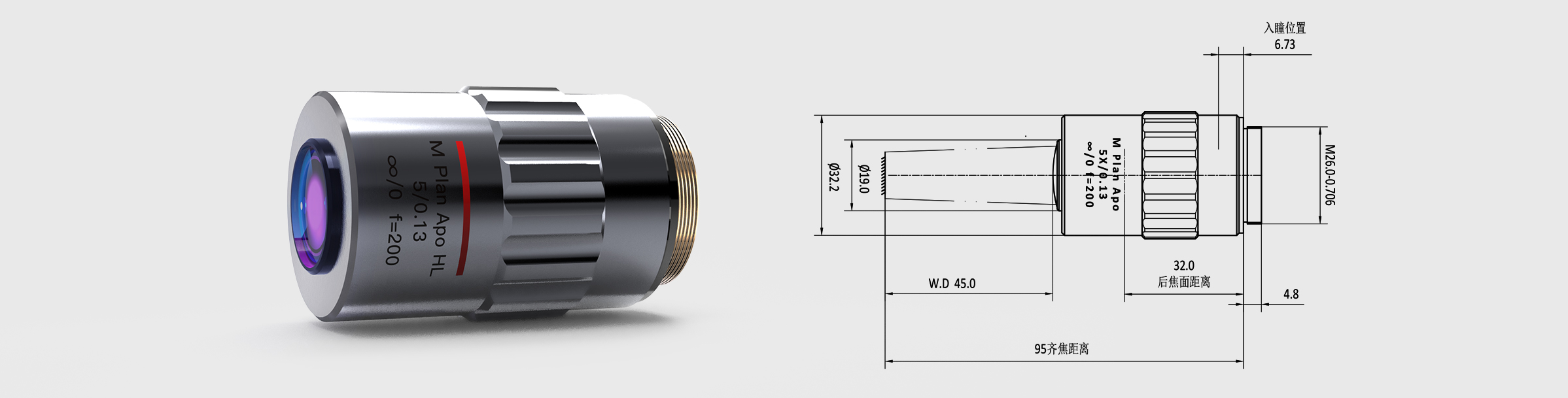

5X M PLAN APO Infinity Corrected LWD Microscope Objectives

Price Option Please Consult

Product No. 690001

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 5X

NA 0.14

Working Distance 45mm

Focal Length 40mm

Wavelength 400~700nm

Depth of Focus 14μm

Diameter of exit pupil 11.2mm

Resolution 2μm

Focal Length of Tube Lens f200mm

FOV 1/2"Sensor 0.96X1.28mm

FOV 2/3"Sensor 1.32X1.76mm

Length（thread not included） 61mm

Thread M26X0.706

Type M Plan APO

Curve Download

5X M PLAN APO Infinity Corrected LWD Microscope Objectives

10X M PLAN APO Infinity Corrected LWD Microscope Objectives

20X M PLAN APO Infinity Corrected LWD Microscope Objectives

50X M PLAN APO Infinity Corrected LWD Microscope Objectives

Grand Unified Optics( Beijing)Co., Ltd pushed out the Infinity Corrected LWD Microscope objectives with the magnification 2X、5X、10X、20X、50X、100X, its wavelength range is 400nm~700nm and adopts 。
