Laser Line Polarizing Cube Beamsplitter 12.7x12.7x12.7mm 532 nm H-ZF3

Laser Line Polarizing Cube Beamsplitter 12.7x12.7x12.7mm 532 nm H-ZF3

Price Option

Product No. 452007

Stock In Stock

Express DHL, Fedex etc.

Product file downloadClick file to download
Dimension 12.7x12.7x12.7mm
Extinction Ratio Tp:Ts>1000:1
DWL 532nm
Coating AR-Coating-Rabs<0.25%@532nm
Angle of Incidence
Material H-ZF3
Damage Threshold CW 1kW/cm@532nm(Ø1.000mm)
Damage Threshold Pulsed 2J/cm2@532nm(10ns,10Hz,Ø0.45mm)
Transmittance Tp > 90%
Reflectivity Rs>99.5%
Clear Aperture 10.0x10.0 mm
Surface Quality 40-20
Dimension Tolerance +0.0/-0.2
Transmission Beam Deviation < 5 arcmin
Reflection Beam Deviation 90° ± 5 arcmin
Transmission Wavefront Error <λ/4@633nm over the full aperture
Bevel Protective Bevel

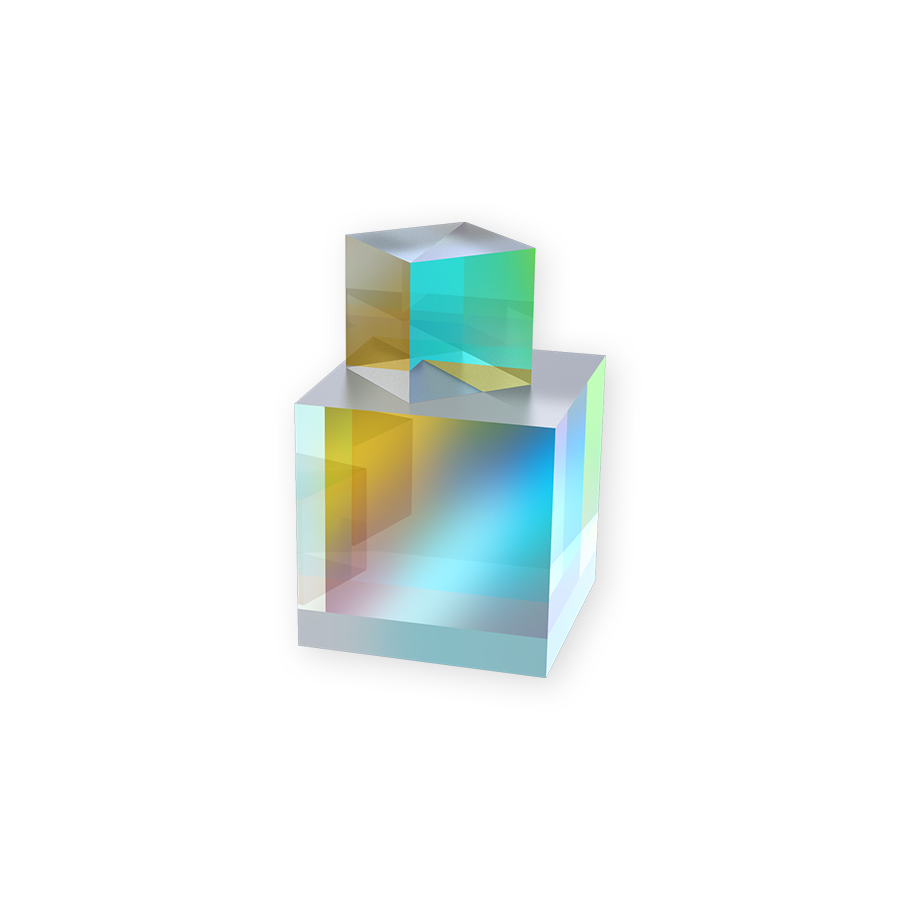

Laser Line Polarizing Cube Beamsplitters are designed for laser wavelengths for gas Laser and solid Laser. Laser Line Polarizing Cube Beamsplitters can divide a random polarized incident light into two orthogonally emitted line polarized light. S-polarized light will be reflected at an angle of 90° from the incident light, while the P-polarized light is transmitted out directly. Laser line polarizing cube beamsplitters consist of a pair of right angle prisms glued together. This structure features high extinction ratio and high transmission, and ensure a good parallelism between incident light and transmission light. Grand Unified Opticsoffer laser line polarizing cube beamsplitters with sizes of 10 mm and 12.7 mm, they are widely used in laser device, laser system, education and scientific research, laser processing and other related fields. We can also provide customized beamsplitters according to your requirements.目前联合光科推出有Diameter分别为10mm、12.7mm的标准库存元件,这些Laser Line Polarizing Cube Beamsplitter被广泛应用到激光器、激光系统、教育科研及激光加工等产品及相关领域,同时也可根据您的需求为您定制满足您使用要求的Laser Line Polarizing Cube Beamsplitter。
