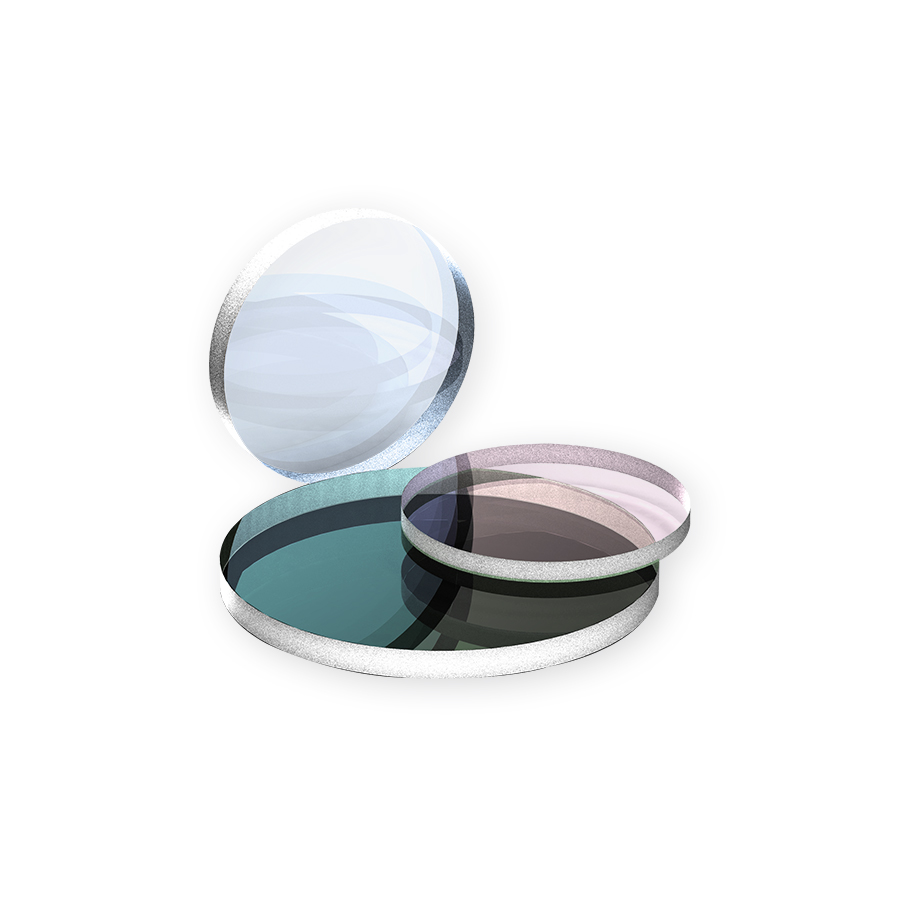

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 1030-1050nm





Share

WeChat

Scan and add Wechat

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 1030-1050nm

Price Option

Product No. 433000

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 25.4mm

Thickness 6.35mm

Coating HR@(1030-1050)nm

Reflectivity Rp,Rs＞99.5%

Angle of Incidence 45°

Material UV Grade Fused Silica

Irregularity(P-V) λ/10@632.8nm

Damage Threshold 10J/cm²@1064nm,10nsec,10HZ

Clear Aperture ≥80%

Surface Quality 10-5

Diameter Tolerance +0/-0.25mm

Thickness Tolerance ±0.5mm

Bevel Protective Bevel

GDD |GDD| < 20 fs

Concave Broadband Metal Laser Mirrors Φ50.8mm F=250mm 488-20000nm Borofloat®33

Concave Broadband Metal Laser Mirrors Φ50.8mm F=250mm 488-20000nm Borofloat®33

Concave Broadband Metal Laser Mirrors Φ50.8mm F=500mm 488-20000nm Borofloat®33

Concave Broadband Metal Laser Mirrors Φ50.8mm F=500mm 488-20000nm Borofloat®33

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 1030-1050nm

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 1030-1050nm

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 510-530nm

Ultrafast Low Delay Laser Mirror D=25.4mm 45° 510-530nm

Grand Unified Opticsoffer standard Ultrafast Low Delay Laser Mirrors with wavelength range from 1030-1050nm and 510-530nm. These laser mirrors are manufactured using corning 7980 substrate material and coated with multilayer dielectric coatings. They feature wide spectral range and high reflectivity, and are widely used in laser marking, laser welding, laser cutting, education and scientific research and other related fields. We can provide OEM services according to your requirements.
