Home  Products  Module detection Relay Lenses  630014

90° MBF=20.00mm Relay Lens





Share

WeChat

Scan and add Wechat

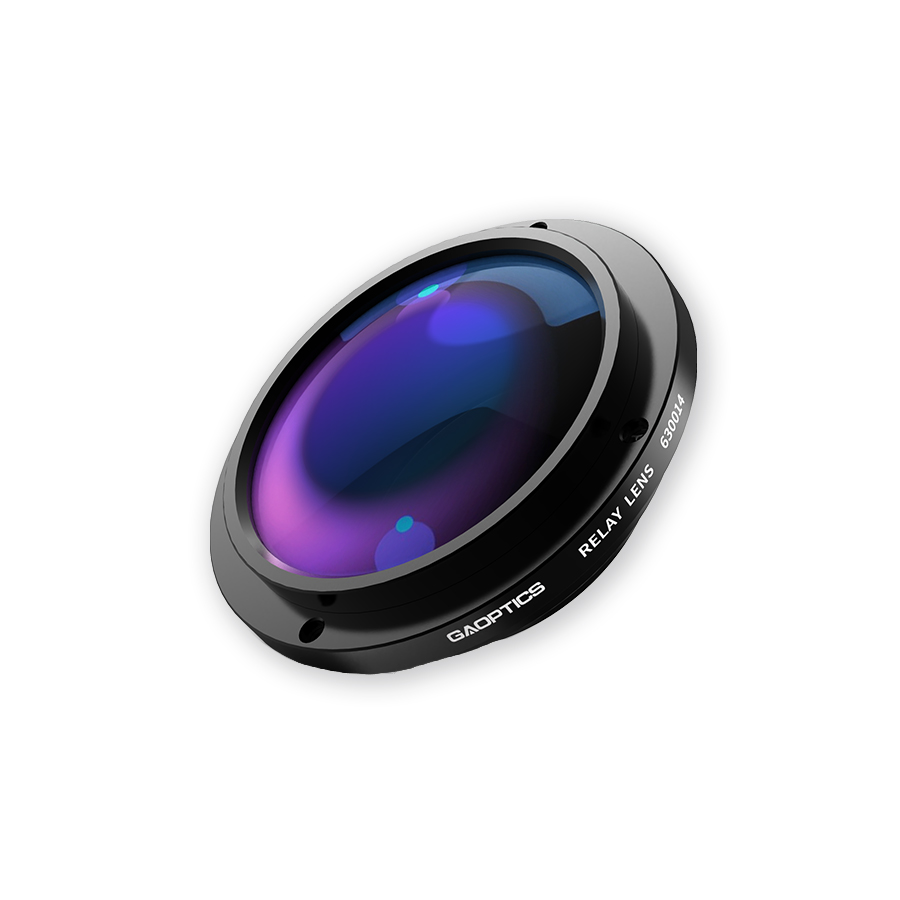

90° MBF=20.00mm Relay Lens

Price Option Please Consult

Product No. 630014

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Distrotion ＜0.5%

MAX FOV 90°

Diameter of exit pupil φ4.00±0.5mm

Distance of exit pupil/MBF 20.00±1mm

Weight 944g

Specification
Distortion		＜0.5%
MAX FOV		90°
Weight		944g
Diameter of exit pupil		φ4.00±0.5mm
Distance of exit pupil/MBF		20.00±1mm
WDV	WDR	Chart Size
400mm	67.86mm	252.9mm
500mm	76.07mm	271.78mm
700mm	87.08mm	297.1mm
1000mm	96.77mm	319.39mm
2000mm	110.07mm	349.99mm
3000mm	115.09mm	361.53mm
4000mm	117.72mm	367.61mm
5000mm	119.34mm	371.36mm
10000mm	122.68mm	379.08mm
Inf	126.17mm	387.13mm

Curve Download

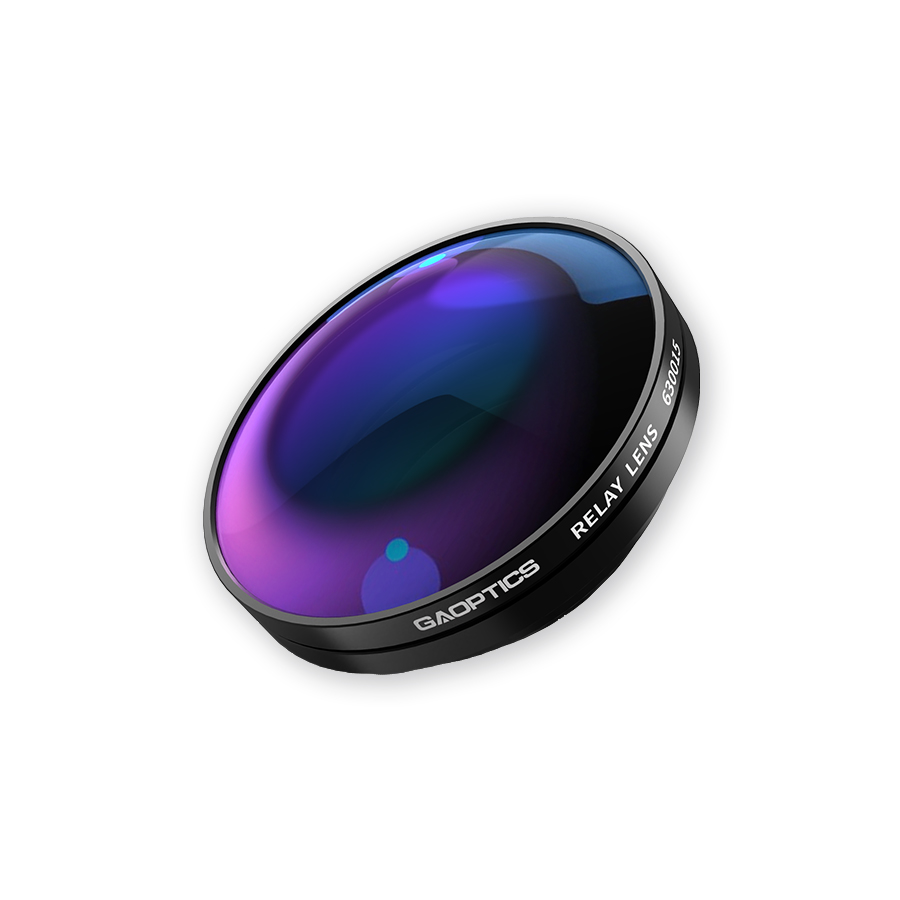

88° MBF=20.00mm Relay Lens

90° MBF=20.00mm Relay Lens

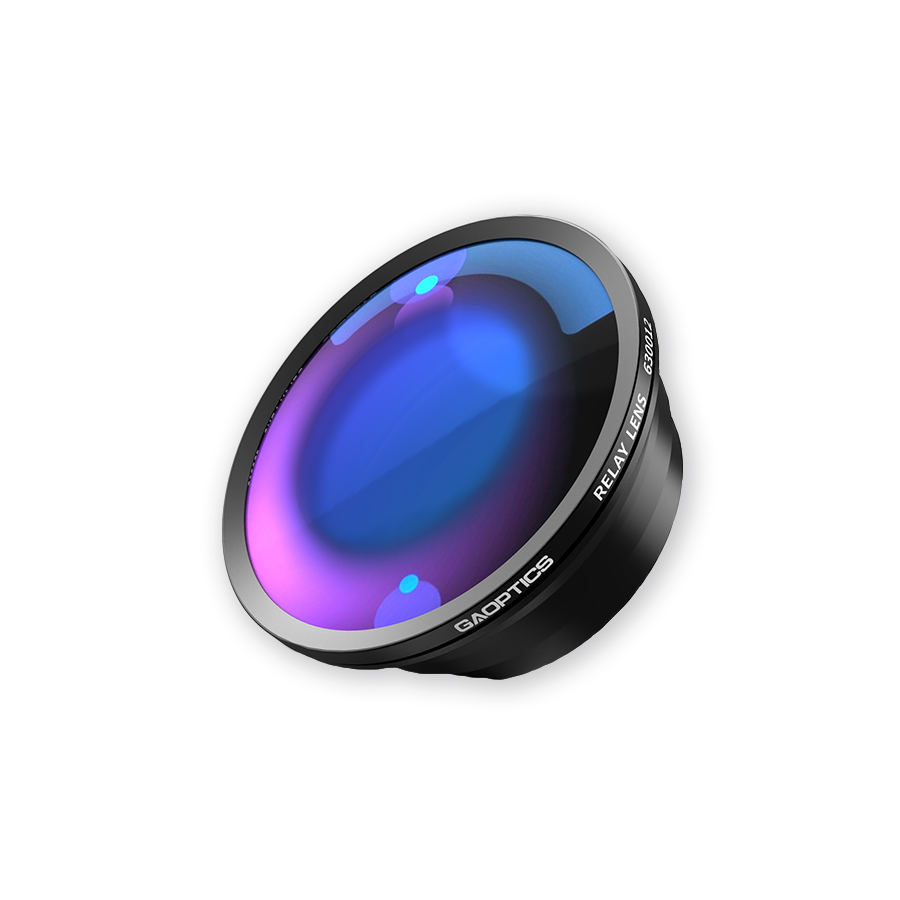

130° MBF=9.00mm Relay Lens

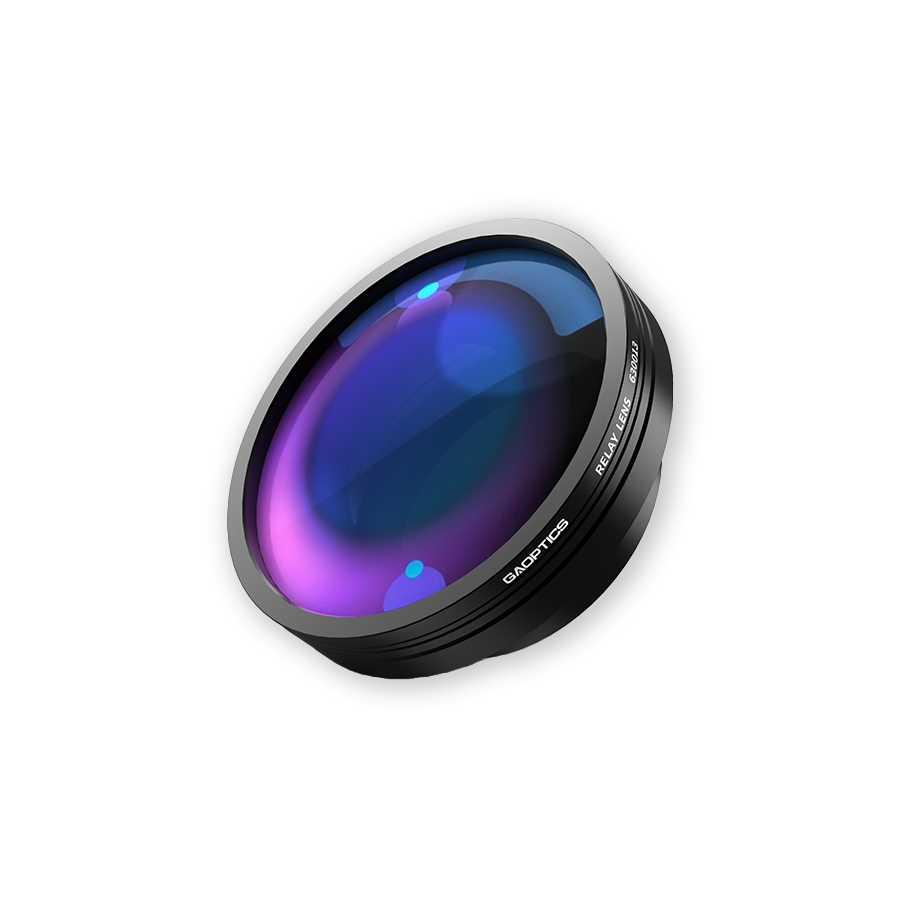

150° MBF=7.00mm Relay Lens

Module detection Relay Lens can reduce the detection space and simulate different test distances, which can meet the high pixel requirements
