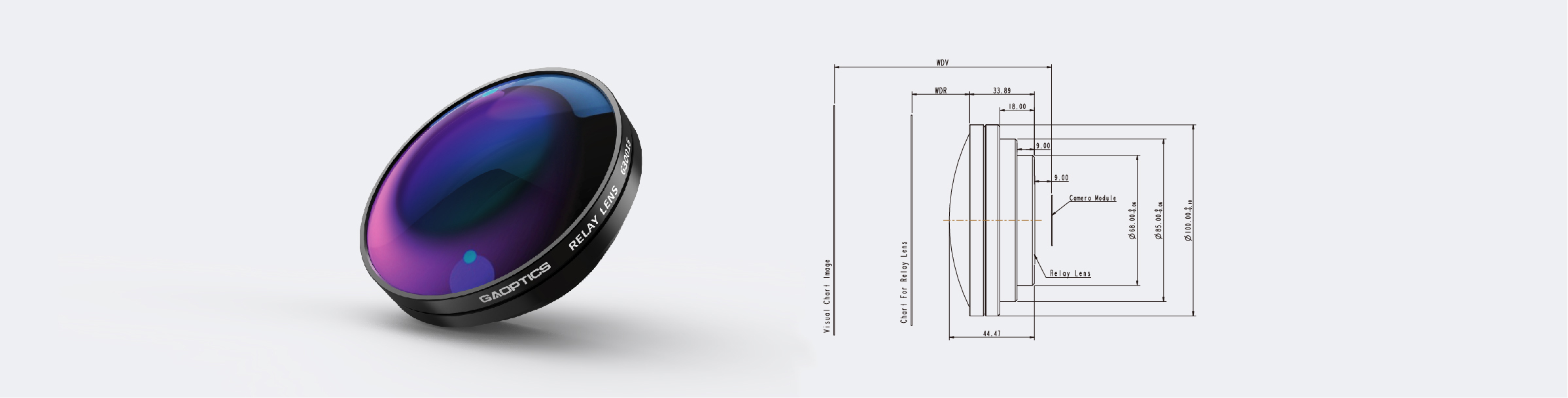

130° MBF=9.00mm Relay Lens





Share

WeChat

Scan and add Wechat

130° MBF=9.00mm Relay Lens

Price Option Please Consult

Product No. 630015

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Distrotion ＜35%

MAX FOV 130°

Diameter of exit pupil φ4.00±0.5mm

Distance of exit pupil/MBF 9.00±1.0mm

Weight /

Specification
Distortion		＜35%
MAX FOV		130°
Weight		/
Diameter of exit pupil		φ4.00±0.5mm
Distance of exit pupil/MBF		9.00±1.0mm
WDV	WDR	Chart Size
350mm	125.19mm	359.4mm
500mm	139.38mm	389.45mm
700mm	150.26mm	412.5mm
1000mm	159.32mm	431.72mm
2000mm	171.03mm	456.58mm
3000mm	175.24mm	465.58mm
10000mm	181.43mm	478.8mm
50000mm	183.63mm	483.51mm
100000mm	183.91mm	484.1mm
Inf	184.19mm	484.7mm

Curve Download

88° MBF=20.00mm Relay Lens

90° MBF=20.00mm Relay Lens

90° MBF=20.00mm Relay Lens

150° MBF=7.00mm Relay Lens

Module detection Relay Lens can reduce the detection space and simulate different test distances, which can meet the high pixel requirements
