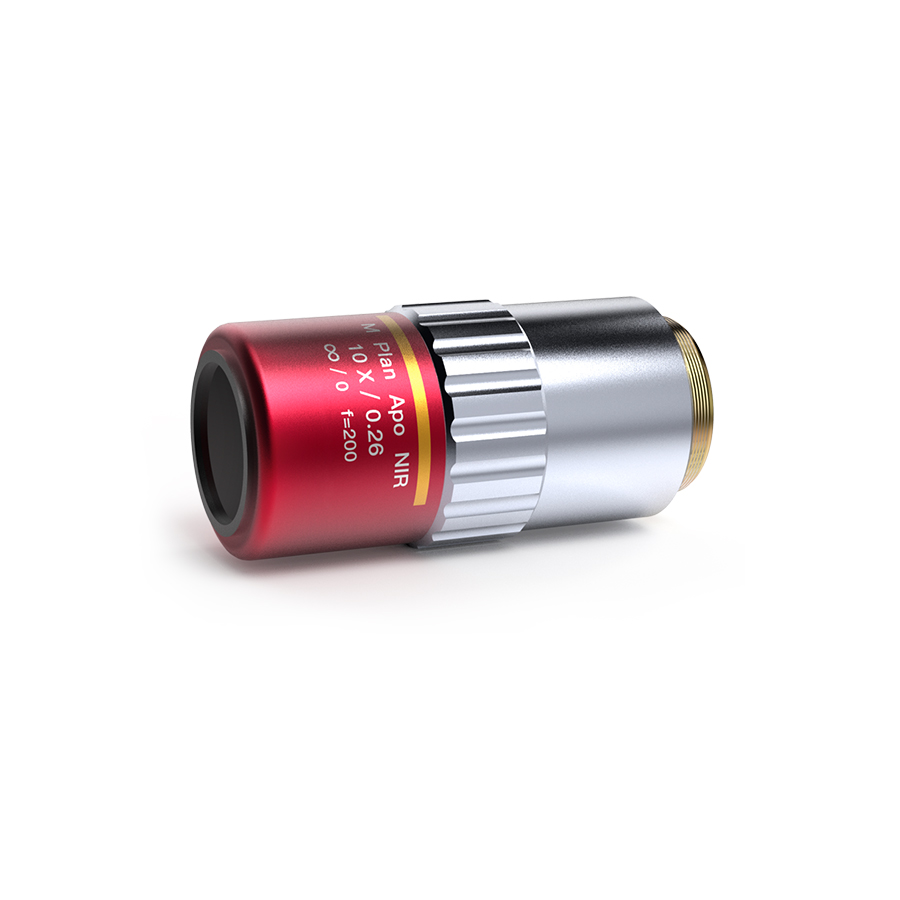

10× Mitutoyo M Plan Apo NIR Infinity Corrected Objective
Price Option
Please Consult
Product No. 690025
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Magnification 10×
- NA 0.26
- Working Distance 31.0mm
- Focal Length 20mm
- Wavelength Range 480-1800nm
- Depth of Focus 4.1um
- Resolution 1.1um
- Focal Length of Tube Lens 200mm

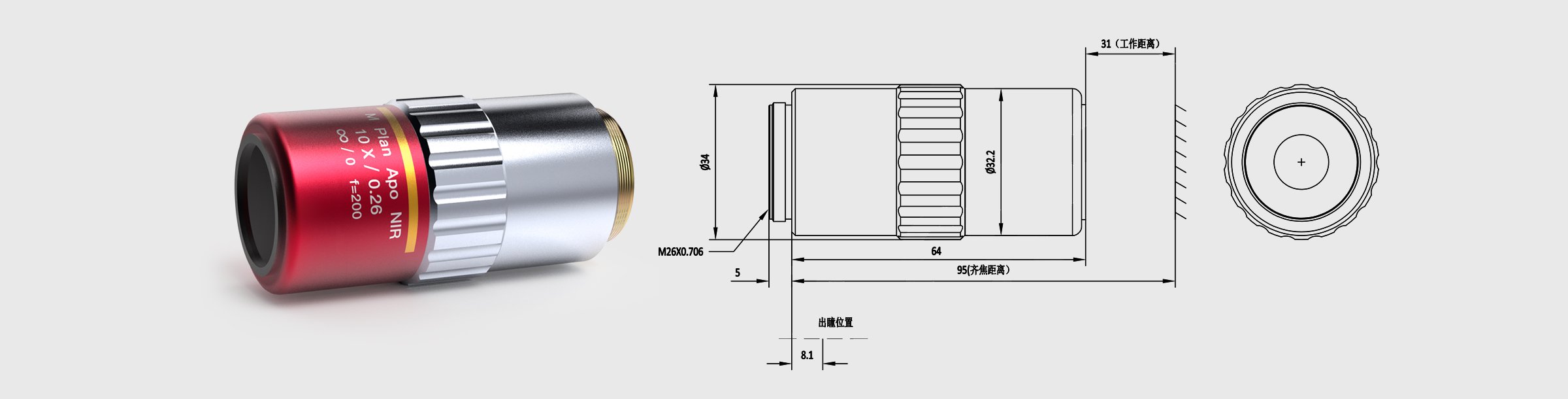

- Diameter Φ34mm
- Length 69mm
- Thread M26*0.706
- Type M Plan Apo NIR
Grand Unified Optics provides Mitutoyo wide-spectrum M Plan Apo NIR Infinity Corrected Objective, 5×, 10×, 20×, 50×, 100 to choose from, with a uniform parfocal distance. While combining the high NA value and contrast of the visible light version, the resolution is improved, and the working wavelength range is further widened, the working wavelength range can be from 480nm-1800nm. The objective lens adopts the plan apochromatic design, which is suitable for bright field microscopy. Can be widely used in education and scientific research, bright field industrial inspection. At the same time, it can be used in laser marking and laser cutting circuit boards.
