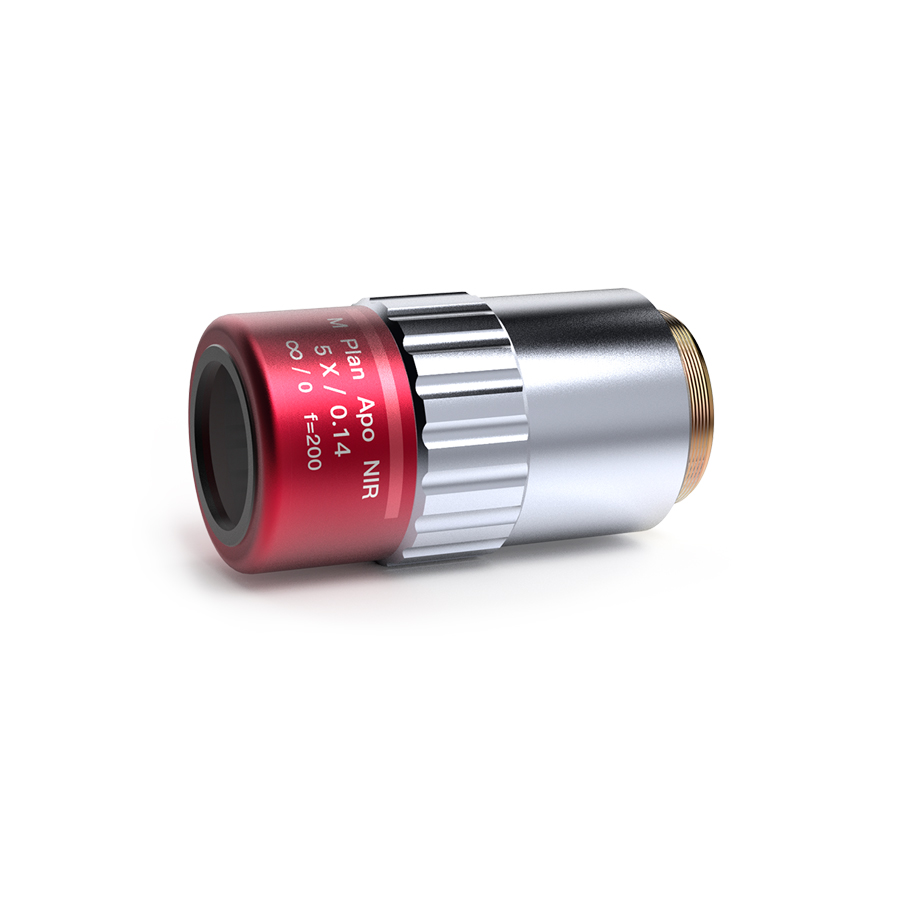

5× Mitutoyo M Plan Apo NIR Infinity Corrected Objective





Share

WeChat

Scan and add Wechat

5× Mitutoyo M Plan Apo NIR Infinity Corrected Objective

Price Option Please Consult

Product No. 690024

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Related Products Description

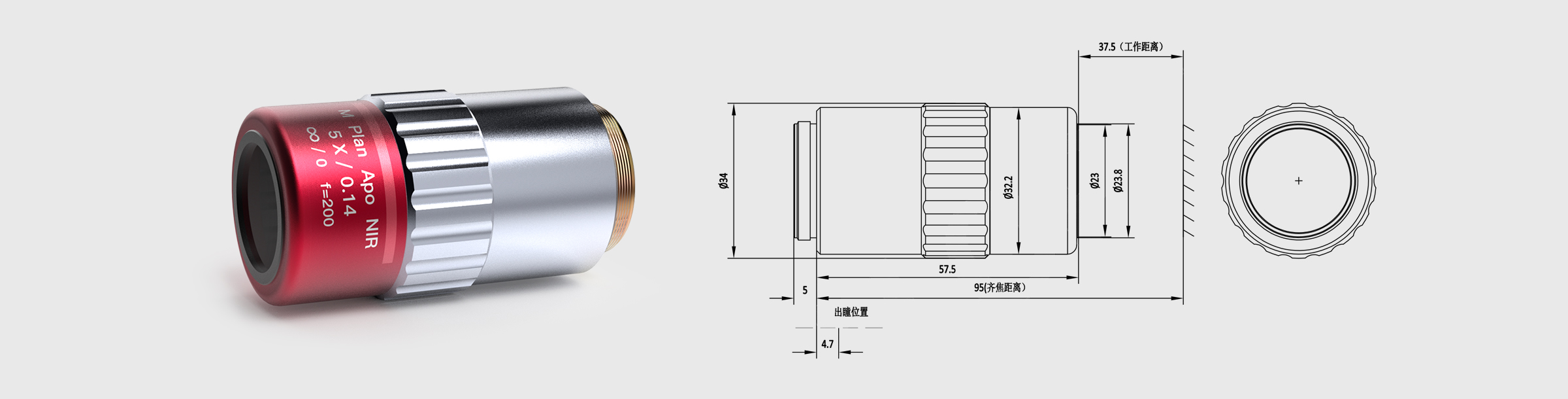

Magnification 5×

NA 0.14

Working Distance 37.5mm

Focal Length 40mm

Wavelength Range 480-1800nm

Depth of Focus 14.0um

Resolution 2.0um

Focal Length of Tube Lens 200mm

Diameter Φ34mm

Length 62.5mm

Thread M26*0.706

Type M Plan Apo NIR

Grand Unified Optics provides Mitutoyo wide-spectrum M Plan Apo NIR Infinity Corrected Objective, 5×, 10×, 20×, 50×, 100 to choose from, with a uniform parfocal distance. While combining the high NA value and contrast of the visible light version, the resolution is improved, and the working wavelength range is further widened, the working wavelength range can be from 480nm-1800nm. The objective lens adopts the plan apochromatic design, which is suitable for bright field microscopy. Can be widely used in education and scientific research, bright field industrial inspection. At the same time, it can be used in laser marking and laser cutting circuit boards.
