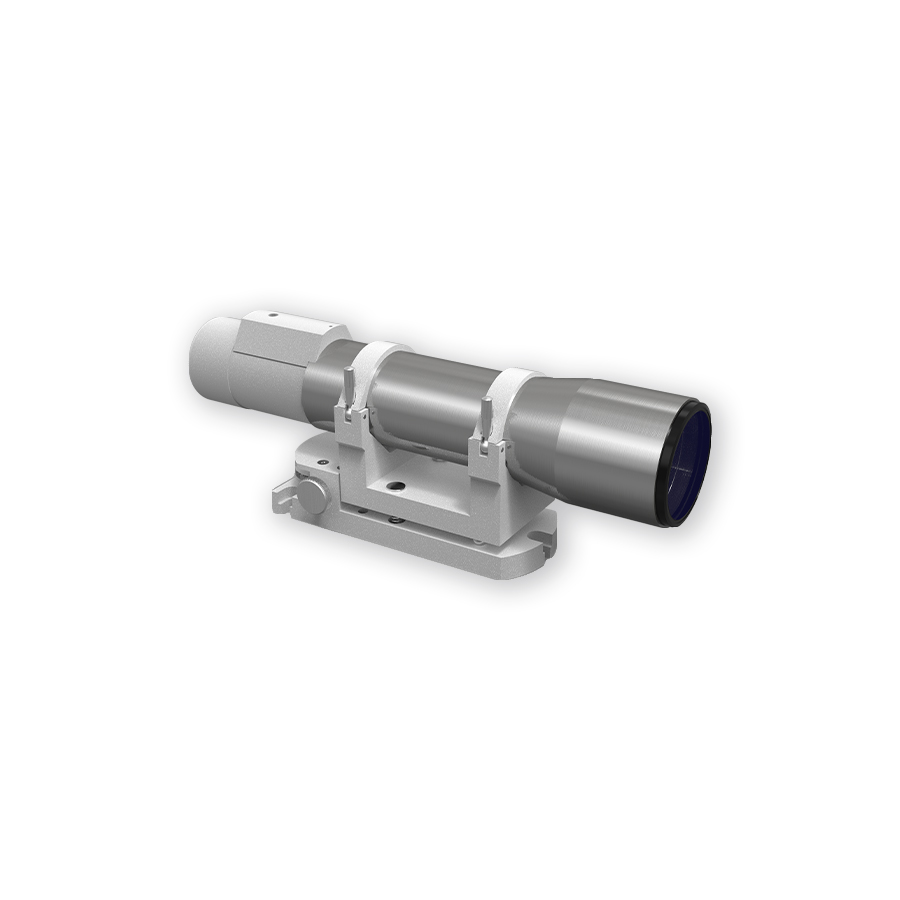

COMPACT-300-45 Compact Autocollimator
Price Option
Please Consult
Product No. COMPACT-300-45
Stock In Stock | 2 Weeks
Express DHL, Fedex etc.
Files Click file to download
- Accuracy ±0.3″@Within Central ±100˝
- Lens Diameter 50mm (NA. = 90%)
- Focal Length 300mm
| Order Number | COMPACT 300-45 | |
| Focal Length | 300mm | |
| Lens Diameter | 50mm NA. = 90% | |
| Light Source | LED Light Source λ=630nm | |
| Sensors | High Resolution Image Sensors | |
| Viewfinder | Electronic Viewfinder with Software Cross hair | |
| Measuring Frequency | 7.5Hz TYP. | |
| Interface | USB 2.0 High Speed Interface with power supply | |
| Measuring Distance | 2525 meter MAX. | |
| Measuring Range | 2000˝×1400˝ arc sec. | |
| Resolution | 0.05˝ arc sec. | |
| Accuracy[1] |
Center ± 100 ˝ | ±0.3″arc sec. |
| Center ± 100 ˝ | ±0.6″arc sec. | |
| Dimensions | 375mmL×79mmW×108mmH | |
| Weight | 2.7KG | |
