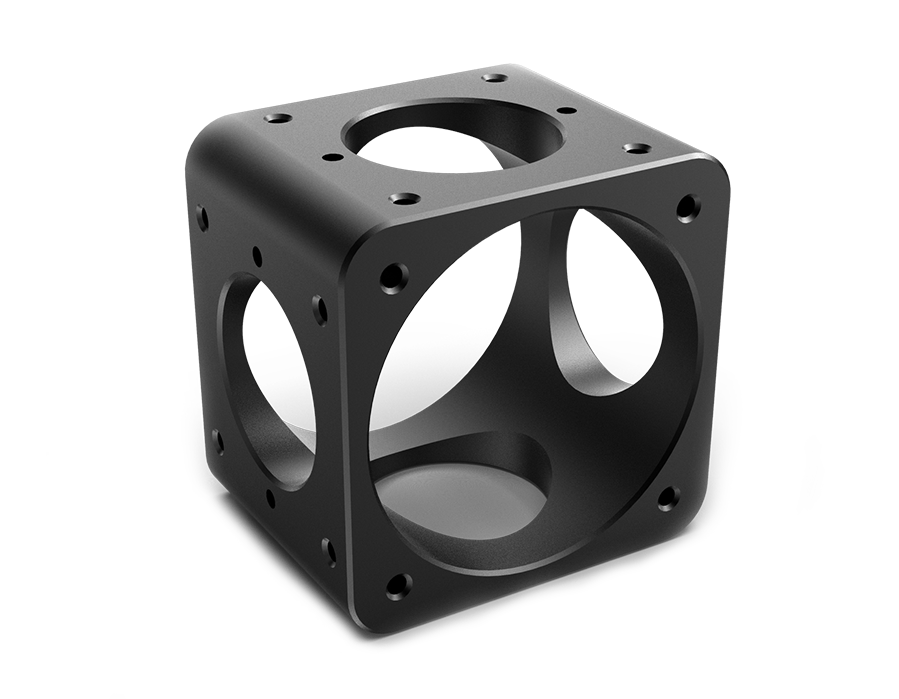

30 mm Cage Cube

Product characteristics
1. Designed for 30 mm Cage Systems
2. Top and Bottom Faces have Φ1.75″ (44.5 mm) Through Holes
3. SM1-Threaded Hole Around Four M3 screw holes on Each Side Face of (530012 and 530013), Compatible with Φ 6mm cage rod.
4. 530013 : Two Opposing Sides with Φ6 mm Through Holes for Φ6 mm Cage Rods
5. Four M4 and Five M3 Tapped Holes of (530014 and 530015), use with 530012 and 530013
6. 530015 allows Pitch, Roll, and Z Translation

Products Related Download

Thread

Select..  

Features

Select..  

Clear

Pro No.

Parameter

Thread

Features

Delivery time

Compare

Price

Purchase

530012

Parameter list

In stock



$65.17



530013

Parameter list

Φ6mm，through-holes

In stock



$68.67



530014

Parameter list

M3、M4

Fixed-Cage-Cube-Platforms

In stock



$27.00



530015

Parameter list

M3、M4

Kinematic-Cage-Cube-Platform

In stock



$81.67


