Alignment Plates for 30 mm Cage Systems

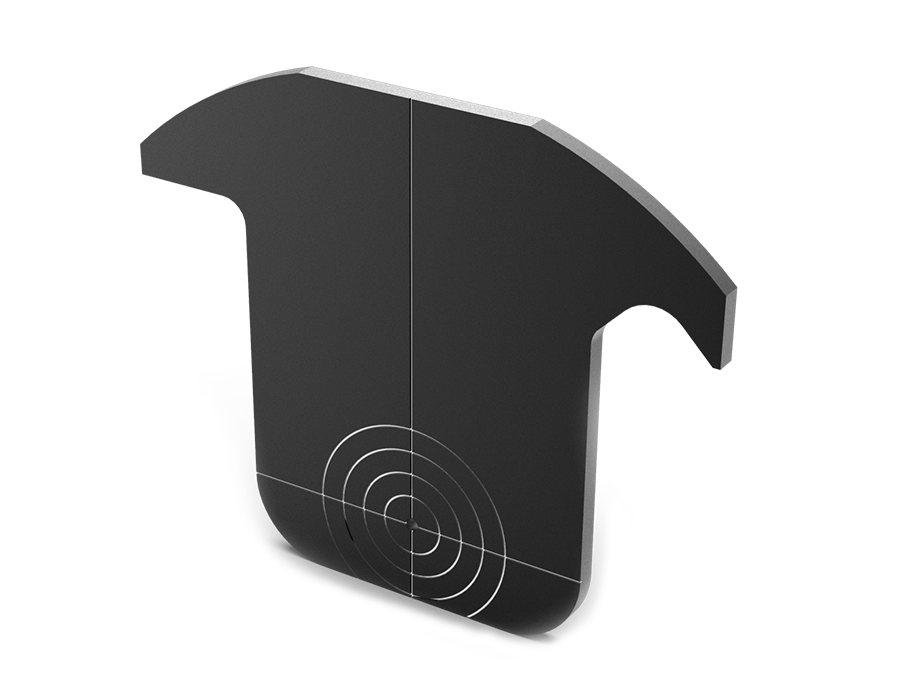

GU Optics's Alignment Plates is a Quick Drop-In Beam Alignment tool for 30 mm Cage Systems, featured a small through hole at the exact center of the 30 mm cage assembly that are convenient for aligning visible beams. For easy alignment, the through hole is surrounded by engraved rings, which indicate Φ4 mm, Φ7 mm, Φ10 mm, and Φ13 mm. In beam focusing applications, the central through hole is convenient for viewing the focused spot position. Slide back and forth on the cage rod along the optical path, by check the position of the light spot to determine whether the optical path is coaxial with the cage system.

Product characteristics
1. Material：6061-T6 aluminum alloy.
2. Surface : Black Anodized.
3. 30 mm Cage System Compatible.

Products Related Download

Center Hole size

Select..  

 0.9mm

Clear

Pro No.

Parameter

Center Hole size

Delivery time

Compare

Price

Purchase

530076

Parameter list

0.9mm

In stock



$13.33


