Alignment Plates for 30 mm Cage Systems 0.9mm Through Holes





  Likes

Share

WeChat

Scan and add Wechat

Alignment Plates for 30 mm Cage Systems 0.9mm Through Holes

Price Option

Product No. 530076

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

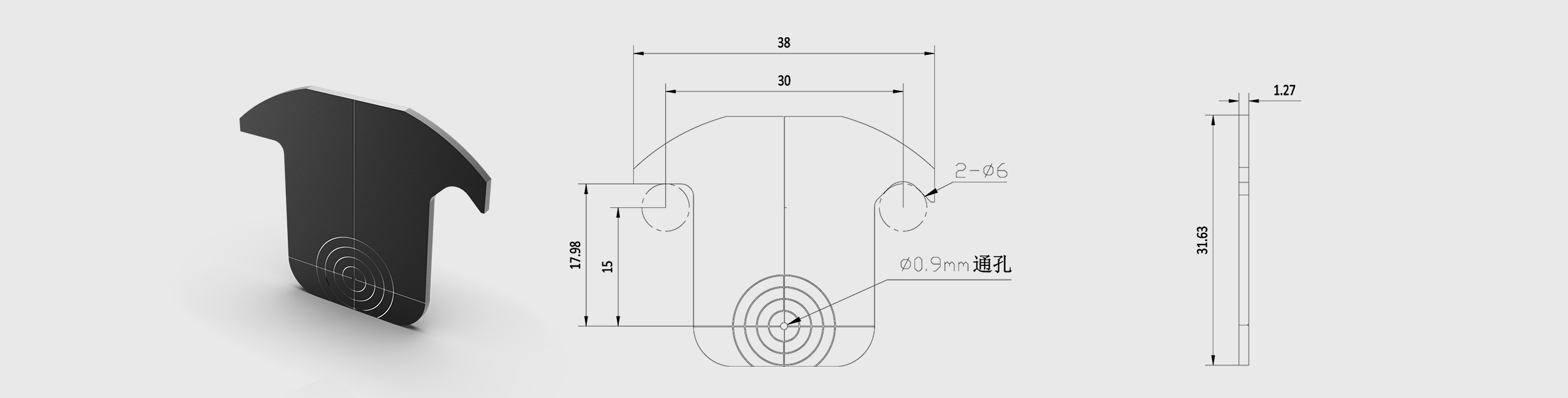

Center Hole size 0.9mm

Ø1" Lens Tubes L=50mm Lens Tube Without Internal Threads

Ø1" Lens Tubes L=25mm Lens Tube Without Internal Threads

Ø1" Lens Tubes L=50mm Lens Tube Without Internal Threads

SM1 30 mm Cage Cube Cover Plates

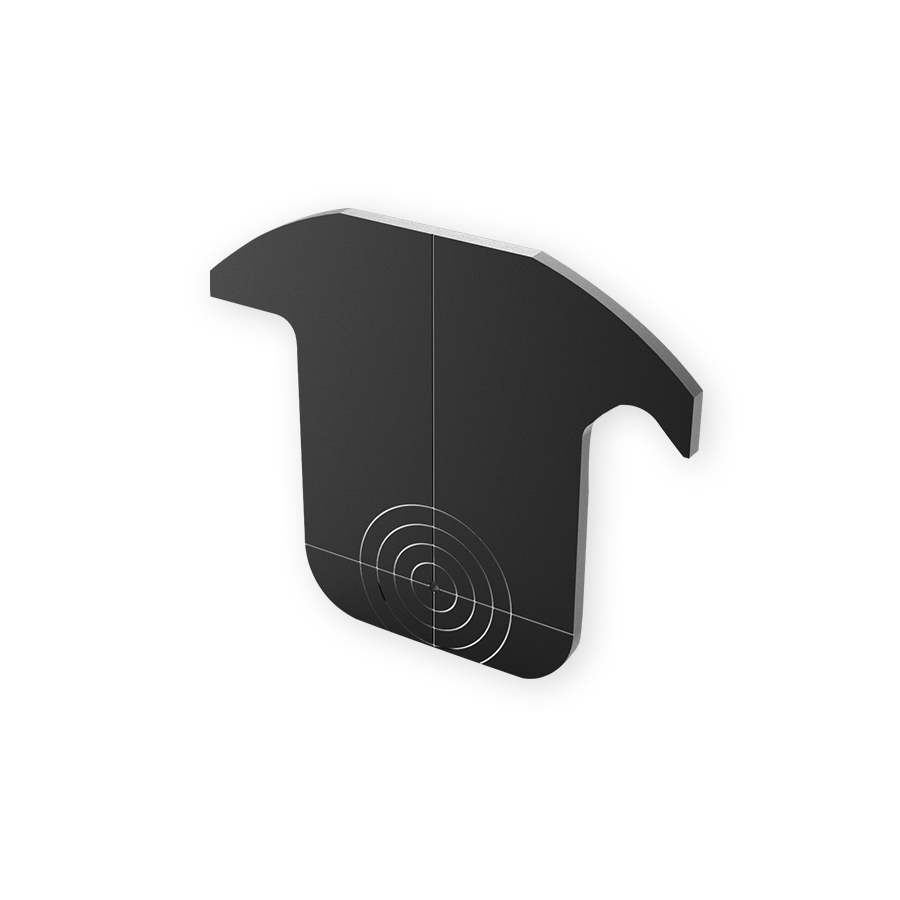

GU Optics's Alignment Plates is a Quick Drop-In Beam Alignment tool for 30 mm Cage Systems, featured a small through hole at the exact center of the 30 mm cage assembly that are convenient for aligning visible beams. For easy alignment, the through hole is surrounded by engraved rings, which indicate Ø4 mm, Ø7 mm, Ø10 mm, and Ø13 mm. In beam focusing applications, the central through hole is convenient for viewing the focused spot position. Slide back and forth on the cage rod along the optical path, by check the position of the light spot to determine whether the optical path is coaxial with the cage system.
