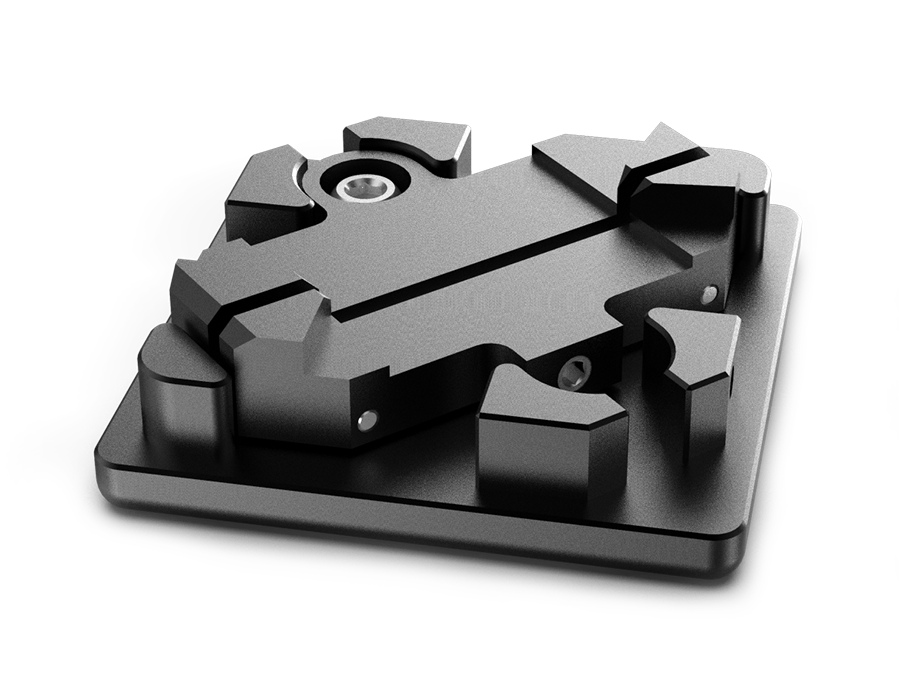

30mm Cage Cubes for Plates Optics

GU Optics's Plates Cage Cube base are used for 45° mounting of round and rectangular optics, such as Dichroic, Beamsplitter and other optics. The 530043 can directly mount Φ25.4 mm optical components with thickness ranging from 3 mm to 8 mm; 530042 Suitable for mounting rectangular optics with a size of 36 mm × 25 mm, maximum thickness 3 mm; Bottom of the Cube base with M4 threaded holes support mounting Φ12.7 mm post.

Product characteristics
1. 530043: Suitable for mounting Φ25.4mm Round Optics with thickness from 3 mm to 8 mm at 45° AOI.
2. 530042: Suitable for mounting rectangular optics up to 3 mm Thick at 45° AOI.
3. Compatible 30 mm Cage System.
4. 530040 is used with 530042.

Products Related Download

Size of Compatible Optics

Select..  

Max Clamping Thickness

Select..  

Bottom Thread

Select..  

 M4

Clear

Pro No.

Parameter

Size of Compatible Optics

Max Clamping Thickness

Bottom Thread

Delivery time

Compare

Price

Purchase

530040

Parameter list

25x36mm

3mm

Consult



$40.00



530041

Parameter list

Φ25.4mm

＞3mm

Consult



$46.67



530042

Parameter list

25x36mm

3mm

Consult



$91.67



530043

Parameter list

Φ25.4mm

＞3mm

Consult



$93.33


