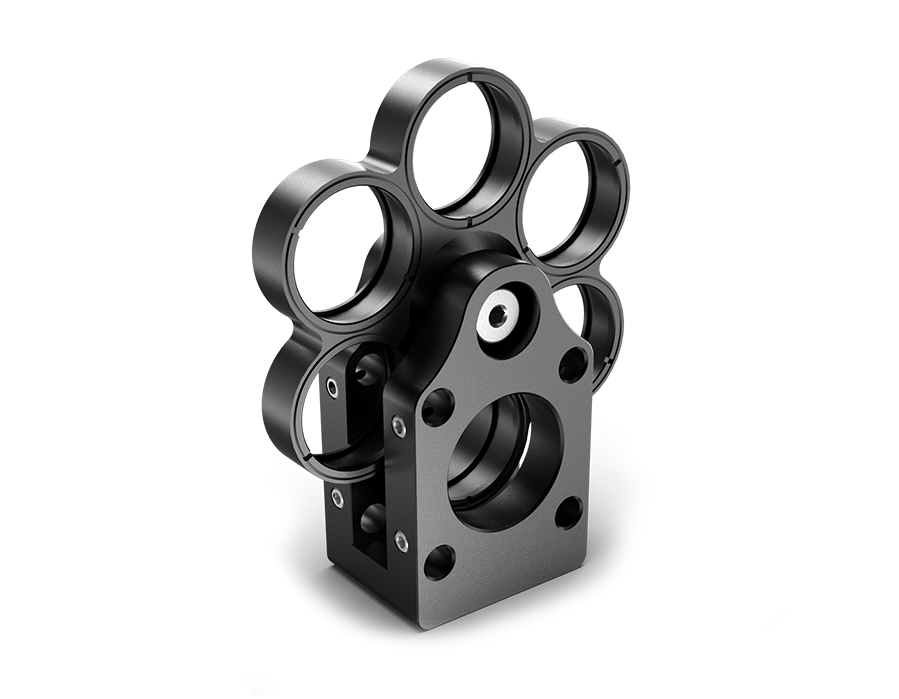

30mm Cage System Filter Wheels

530032 is designed for our 30 mm cage system and has six SM1-threaded filter holders for Φ1" (Φ25 mm) optics. The spring-loaded wheel features indents that click into place, centering the filter in the cage. The stationary input and output ports of the main body are also SM1-threaded for compatibility with our Φ1" lens tubes. Each cage rod through hole is accompanied by a side-located M3 setscrew, which can be secured using a hex key, the bottom have two M6 and four M4 mounting holes.

Product characteristics
1. Holds up to Six Φ1″ (Φ25.4 mm) Filters.
2. Maximum Filter Thickness: 0.25″ (6.4 mm).
3. SM1-Threaded Through Ports on Main Body, Included Six SM1 Retaining Rings (530082).
4. Bottoms Taps for Post Mounting.
5. Compatible with 30 mm Cage System.

Products Related Download

Size of Compatible Optics

Select..  

 25.4mm

Number of Filters

Select..  

 6个

Compatible Post

Select..  

 M6&M4

Clear

Pro No.

Parameter

Size of Compatible Optics

Number of Filters

Compatible Post

Delivery time

Compare

Price

Purchase

530032

Parameter list

25.4mm

6个

M6&M4

In stock



$141.67


