30mm Cage System Filter Wheels Number of Filters：6 M6&M4





Share

WeChat

Scan and add Wechat

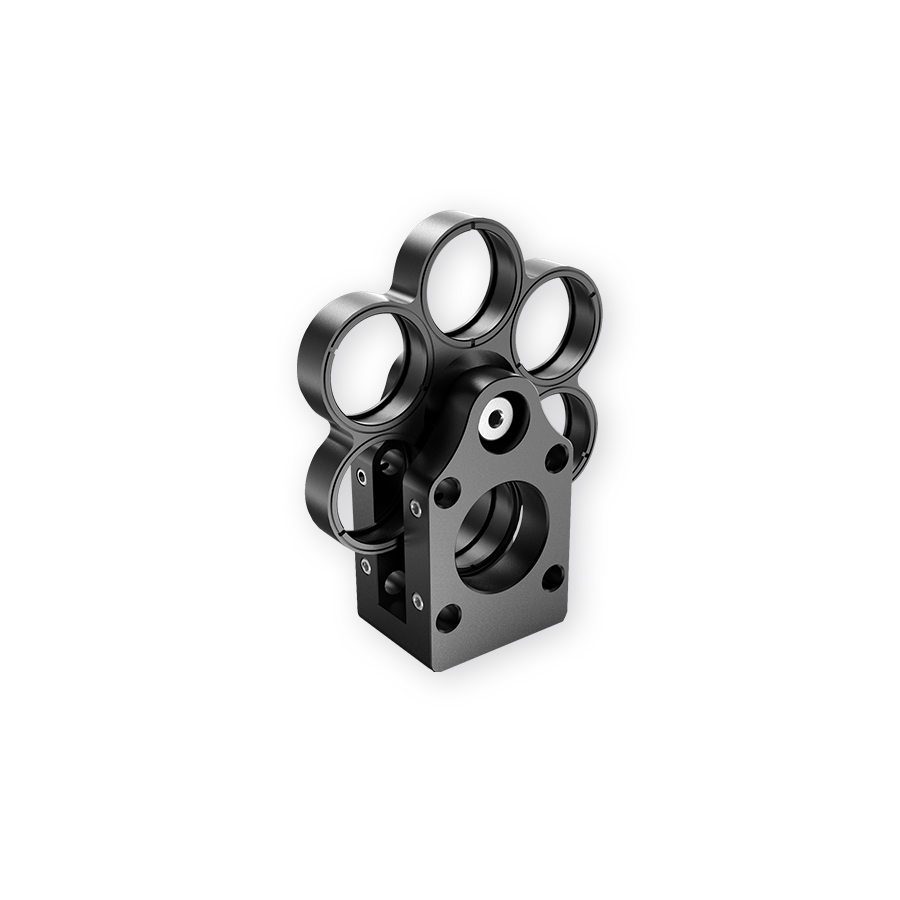

30mm Cage System Filter Wheels Number of Filters：6 M6&M4

Price Option

Product No. 530032

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Size of Compatible Optics 25.4mm

Number of Filters 6个

Compatible Post M6&M4

Notes Compatible Post

30 mm Cage Mounting Bracket 3×M4 Counterbores

Mirror Mount for 30 mm Cage Systems Clamping Size 25.4mm M4 Retaining Ring Fixed

Mirror Mount for 30 mm Cage Systems Clamping Size 25.4mm M4 Nylon-Tipped Setscrew

30 mm Cage System Rotation Mounts Clamping Size 25.4mm Retaining Ring Fixed M4 (Precision Micrometer)

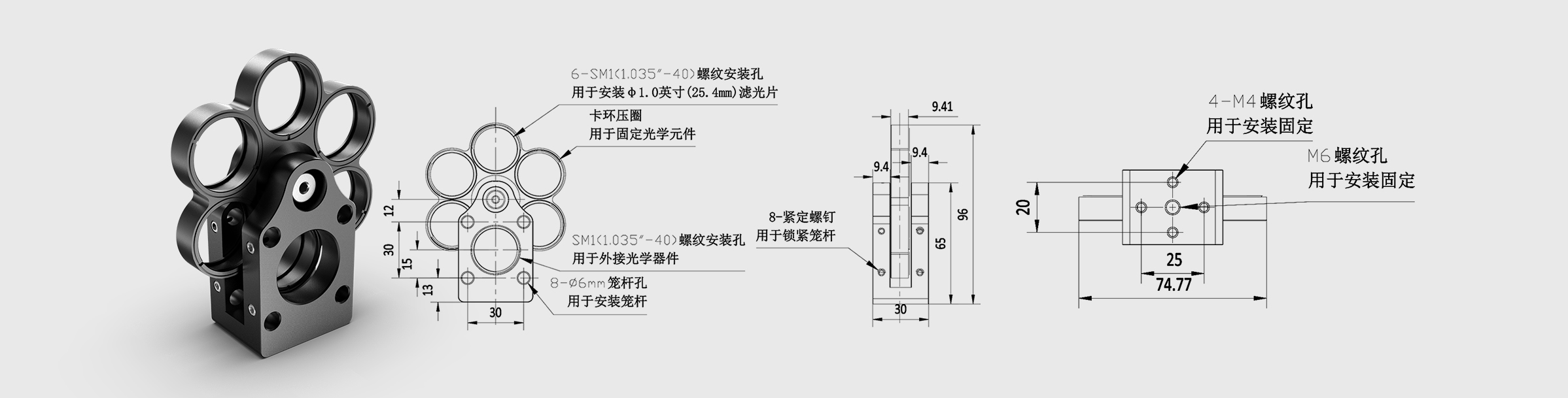

530032 is designed for our 30 mm cage system and has six SM1-threaded filter holders for Ø1" (Ø25 mm) optics. The spring-loaded wheel features indents that click into place, centering the filter in the cage. The stationary input and output ports of the main body are also SM1-threaded for compatibility with our Ø1" lens tubes. Each cage rod through hole is accompanied by a side-located M3 setscrew, which can be secured using a hex key, the bottom have two M6 and four M4 mounting holes.
