Mirror Mount for 30 mm Cage Systems

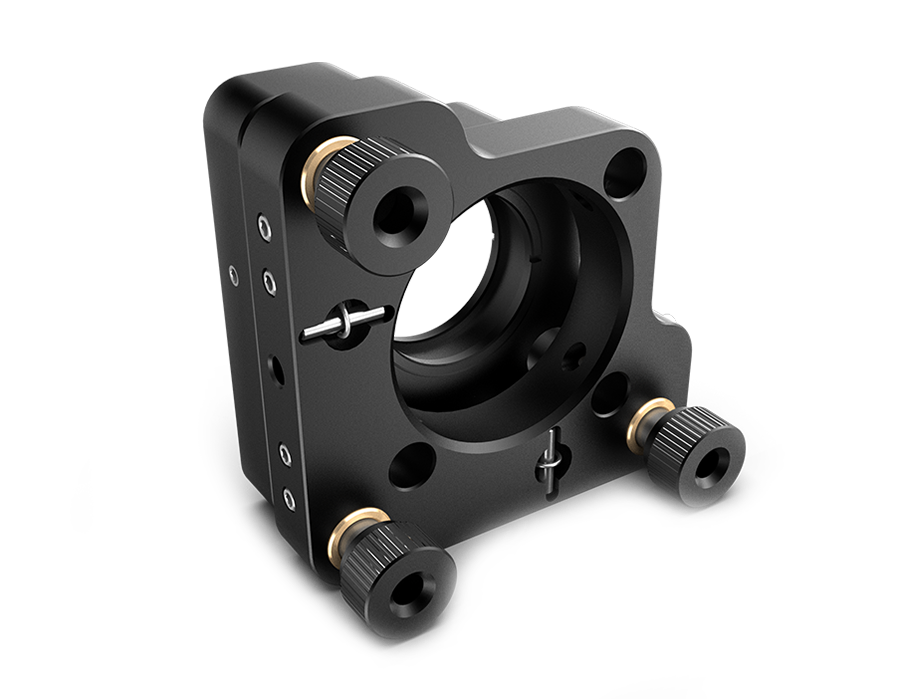

Both the front and rear plates of 530026 & 530027 have been machined with four clearance holes designed for direct compatibility with our 30 mm cage system. The cage rod holes in the front plate are sufficiently oversized to allow ±3.5º tip and tilt adjustment without cage rod interference. Once the desired position is achieved, locking setscrews on the rear plate can be used to secure the rods in place. In addition to being compatible with 30 mm cage systems, posts can also be mounted through M4 tapped holes. It’s with 3 adjusters for adjusting tip and tilt angle.

Product characteristics
1. ±3 mm Linear Translation Along the Optical Axis, ±3.5° Tip / Tilt, Angular Resolution 0.32°/rev
2. Compatible with 30 mm Cage System
3. 530026 is fixed by SM1 Retaining Ring, Suitable for mounting Φ1″ (Φ25.4 mm) Optics, Maximum Optic Thickness 5 mm
4. 530027 is fixed by Tipped Setscrew, suitable for installing Φ1″ (Φ25.4 mm) optical components with a minimum thickness of 3 mm.
5. 530028 can be realized Quick-Release Flexure Clamping Mechanism for Secure Cage Mounting without Disassembly

Products Related Download

Clamping Size

Select..  

 25.4mm

Mechanical Angular Range

Select..  

Lens Fixing Mode

Select..  

Thread

Select..  

Clear

Pro No.

Parameter

Clamping Size

Mechanical Angular Range

Lens Fixing Mode

Thread

Delivery time

Compare

Price

Purchase

530026

Parameter list

25.4mm

±3.5°

SM1-Retaining-Ring

In stock



$91.67



530027

Parameter list

25.4mm

±3.5°

Nylon-Tipped-Setscrew

In stock



$86.67



530028

Parameter list

25.4mm

Retaining-Ring

flexure-style-clamp+two-setscrews

In stock



$85.00


