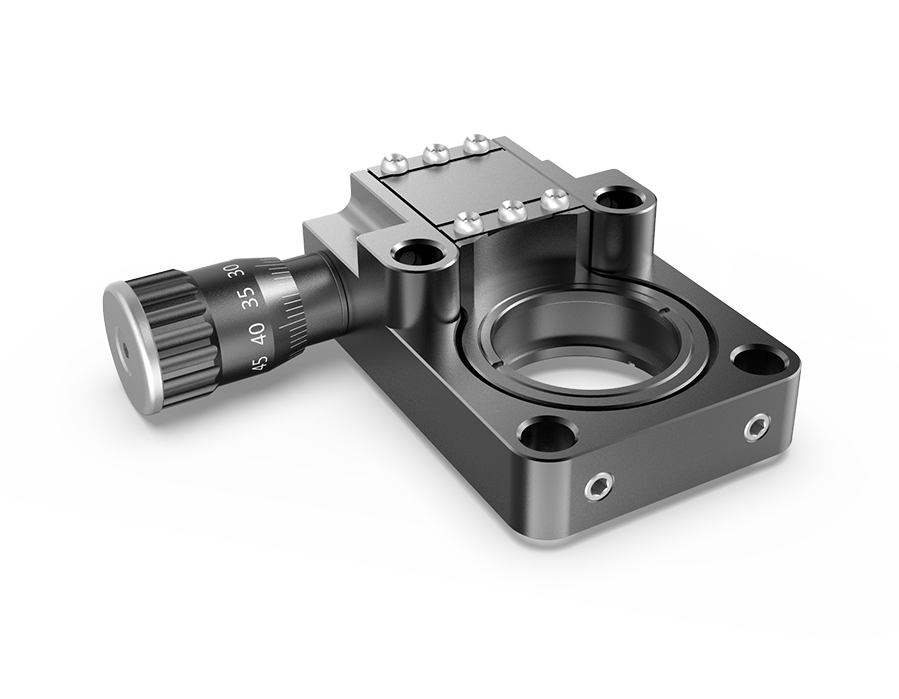

Z-Axis Translation Mount

GU Optics' Z-Axis Translation Mount Compatible with 30 mm Cage Systems. It includes two SM1 retaining rings for holding Φ1" (25.4 mm) optic up to 6.4mm thick. Flexure Design offers repeatable Z-axis travel and increased stability. With 1.0mm of travel and a precision micrometer actuator, which is graduated in 1 µm increments.

Product characteristics
1. Flexure Design Provides 1.0 mm of Travel.
2. Actuator Knob Graduated in 1 µm Increments.
3. Mount Φ1″ Optics up to 6.4mm Thick.
4. Compatible with 30 mm Cage Systems.
5. Post-Mountable via M4 Taps.
6. SM1-Threaded Bore is Compatible with SM1 Lens Tubes.
7. Included two SM1 Retaining Rings.

Products Related Download

Size of Compatible Optics

Select..  

 25.4mm

Max Clamping Thickness

Select..  

 7mm

Thread

Select..  

 M4

Clear

Pro No.

Parameter

Size of Compatible Optics

Max Clamping Thickness

Thread

Delivery time

Compare

Price

Purchase

530038

Parameter list

25.4mm

7mm

In stock



$186.67


