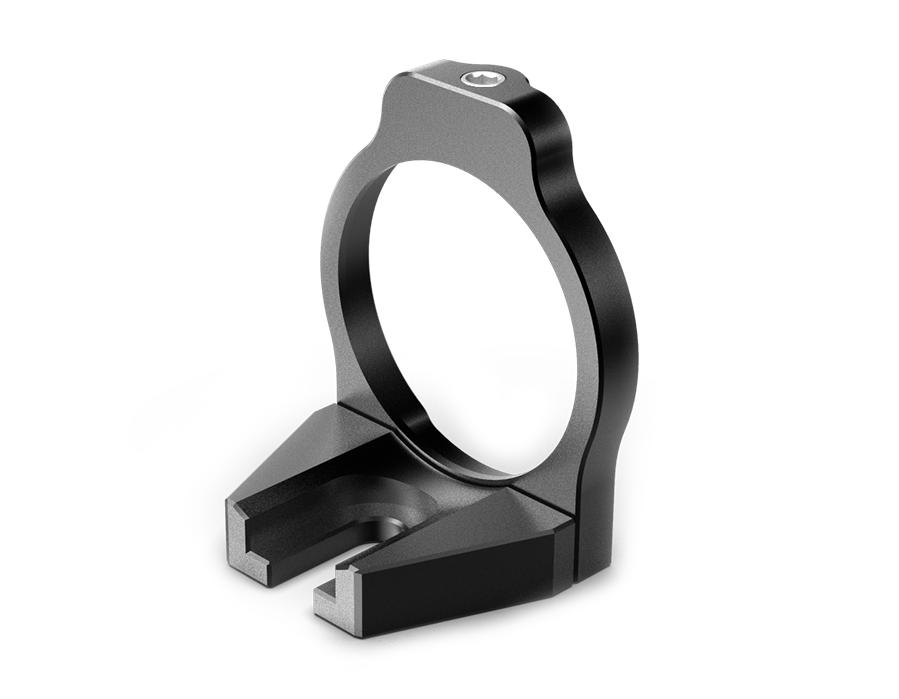

30mm Cage Cube Optic Mounts

Product characteristics
1. Holds Φ1″ (25.4 mm) Optics Thicker than 0.12″ (3.0 mm)
2. 530021 Holds Φ1″ (25.4 mm) Optics up to 0.13″ (3.4 mm) Thick
3. 530022 Holds Φ1″ (25.4 mm) Optics up to 0.25″ (6.3 mm) Thick
4. 530021 and 530022 With SM1-Threaded and Included SM1 Retaining Ring (530082)
5. Compatible with 30 mm Cage Cube Platforms and Rotating Platforms

Products Related Download

Clamping Size

Select..  

 25.4mm

Lens Fixing Mode

Select..  

Max Clamping Thickness

Select..  

Clear

Pro No.

Parameter

Clamping Size

Lens Fixing Mode

Max Clamping Thickness

Delivery time

Compare

Price

Purchase

530020

Parameter list

25.4mm

Setscrew

＞3mm

In stock



$29.17



530021

Parameter list

25.4mm

SM-1Retaining-Ring

3.4mm

In stock



$35.00



530022

Parameter list

25.4mm

SM1-Retaining-Ring

6.3mm

In stock



$35.00


