Home  Products  30mm Cage Cubes for Plates Optics  530041

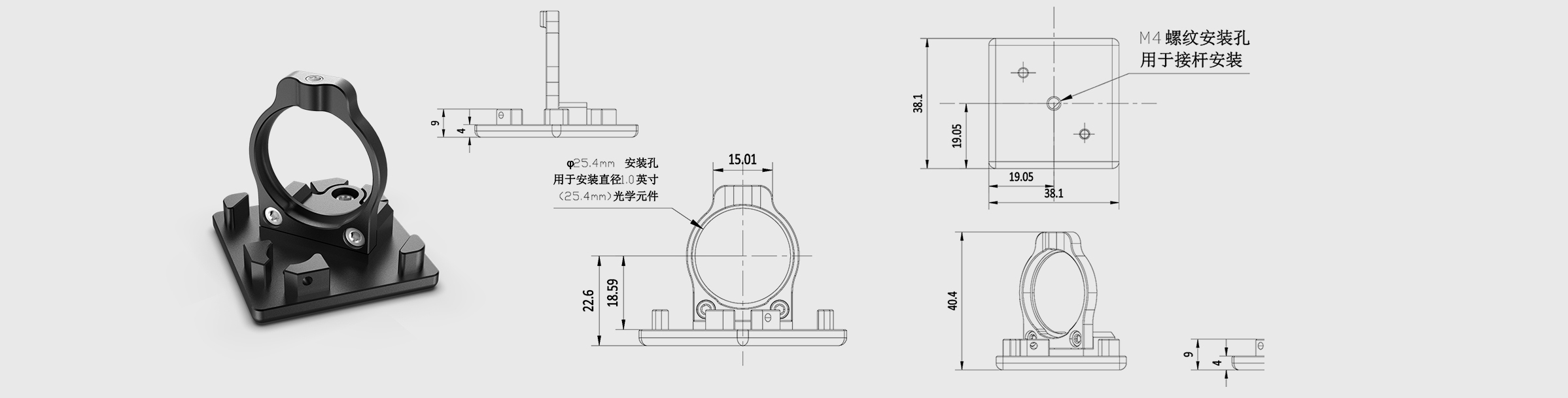

30mm Cage Cubes for Plates Optics Clamping SizeΦ25.4mm M4





Share

WeChat

Scan and add Wechat

30mm Cage Cubes for Plates Optics Clamping SizeΦ25.4mm M4

Price Option

Product No. 530041

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Size of Compatible Optics Φ25.4mm

Max Clamping Thickness ＞3mm

Bottom Thread M4

60 mm Cage Mirror Mounts Size of Compatible Optics Φ50.8mmBy Retaining Ring

60mm Cage System XYZ Translation Mount Size of Compatible Optics 25.4mm

Z-Axis Translation Mount Size of Compatible Optics 25.4mm

30mm Cage Cubes for Plates Optics Clamping Size 25x36mm M4

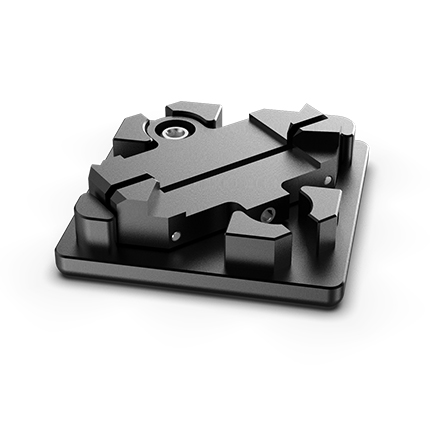

GU Optics's Plates Cage Cube base are used for 45° mounting of round and rectangular optics, such as Dichroic, Beamsplitter and other optics. The 530043 can directly mount Φ25.4 mm optical components with thickness ranging from 3 mm to 8 mm; 530042 Suitable for mounting rectangular optics with a size of 36 mm × 25 mm, maximum thickness 3 mm; Bottom of the Cube base with M4 threaded holes support mounting Φ12.7 mm post.
